Electricians, please ensure a copy of the Installation
Instructions are left with the end user for future reference
Installation Instructions
Page 3 of 6
INSTALLING THE FAN
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT THE SERVICE PANEL
BEFORE STARTING INSTALLATION.
1. This exhaust fan is tted with a supply cable and plug. There is no need to open the fan for wiring. The location of installation must
be near a socket outlet. A licensed electrician will be required to install the socket outlet. For best performance, the location of the
inlet and outlet should be within 6 metres of duct length.
2. Ensure the mounting location of the fan is in a position that:
a) is as far as possible from the intake point to minimise fan operating noise from being transmitted back through the duct work. If
the fan is to be used as a booster for moving the air between two rooms, a central point along the duct may be optimal, and
b) allows for sufcient access for servicing.

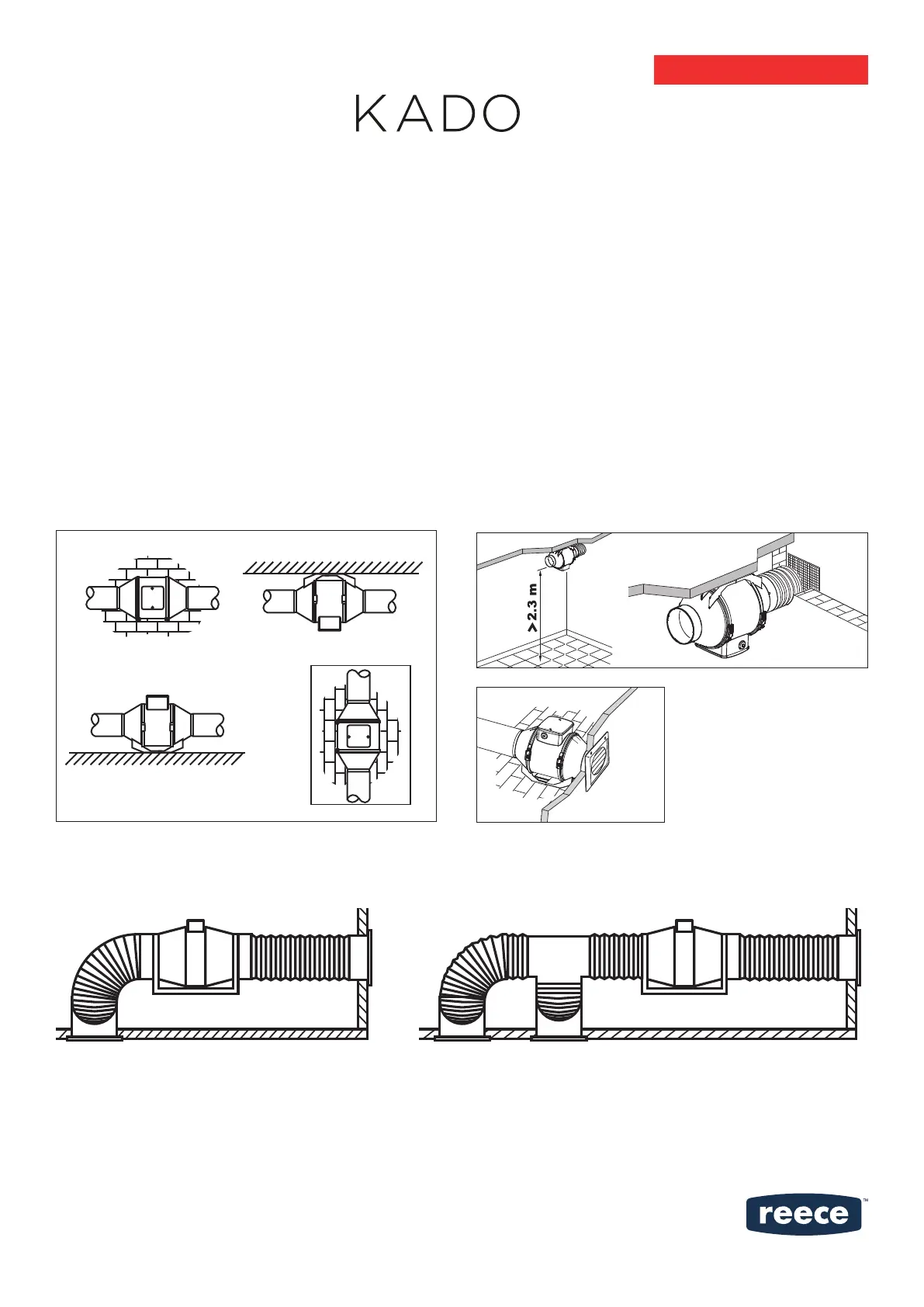

3. This exhaust fan can be mounted in any orientation, horizontal or vertical, and is suitable for numerous types of applications. See
below for illustrations for some typical applications and mounting possibilities:
Single-Point Intake:
Kado Aspect Flush Mount Inline Exhaust
Multi-Point Intake:
To Next Page
