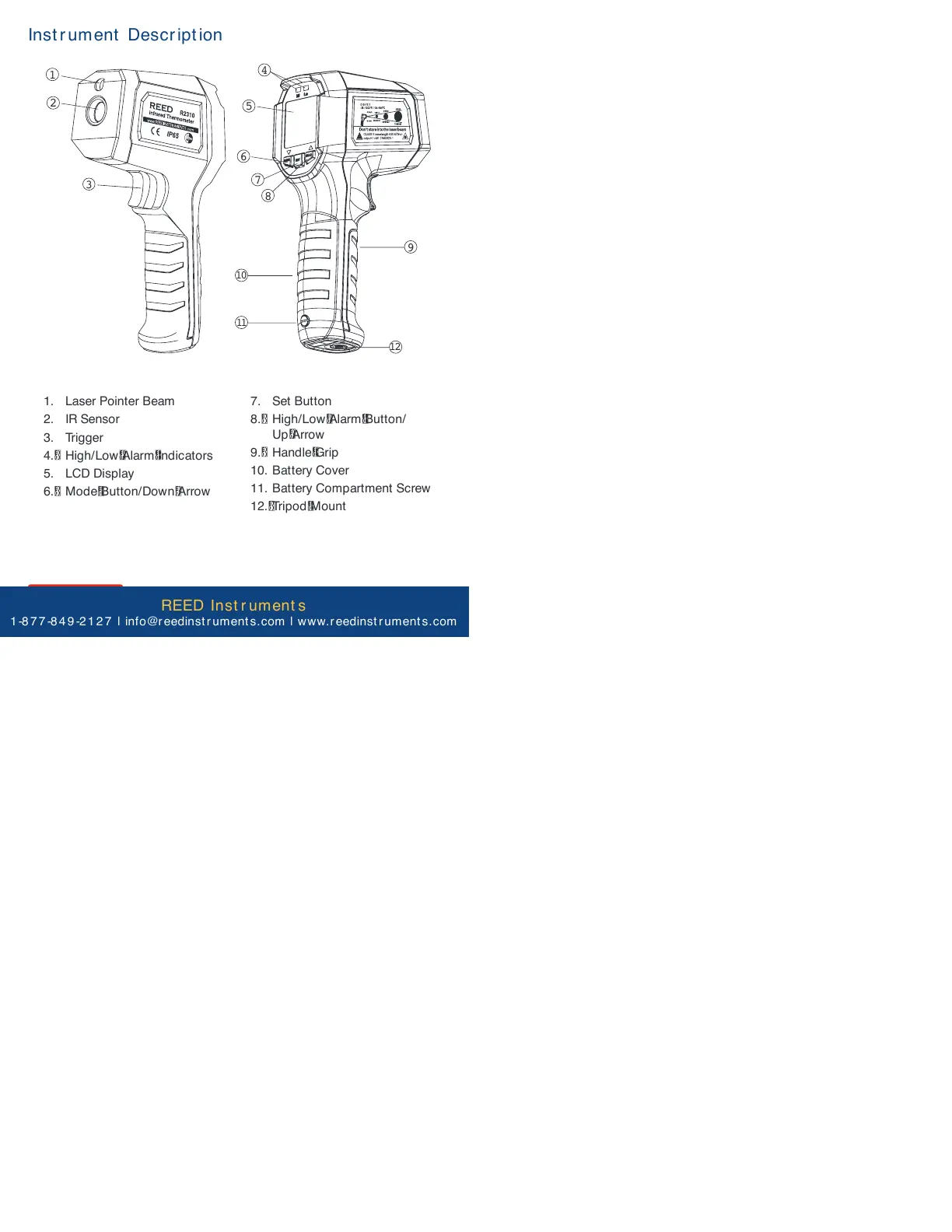

Inst r ument Descr ipt ion
1. Laser Pointer Beam
2. IR Sensor
3. Trigger
4. High/Low Alarm Indicators
5. LCD Display
6. Mode Button/Down Arrow
4
5
6
7
8
9
12
10
11
1
2
3
7. Set Button
8. High/Low Alarm Button/
Up Arrow
9. Handle Grip
10. Battery Cover
11. Battery Compartment Screw
12. Tripod Mount
