REED 5A - Tonearm Mounting on Turntable; Mark Tonearm Base Holes; Drill and Thread Mounting Holes; Fix Armboard Position

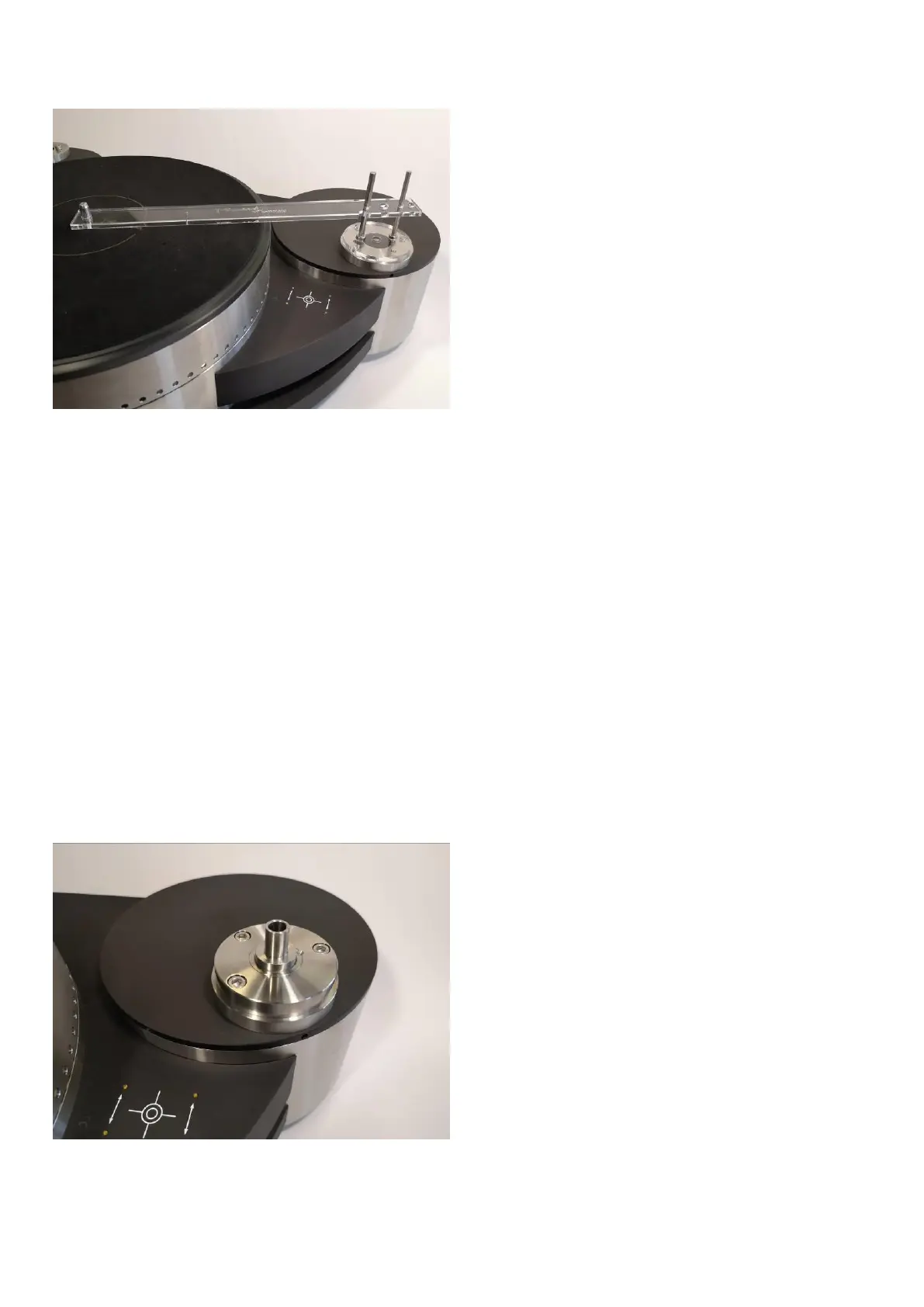

Figure 12
2. Tonearm mounting:
Mount the tonearm onto a turntable using
template [2] (Figure 2).
a) On the turntable, mark three tonearm base
mounting holes (Figure 12) using Reed
mounting drawing and check the position of
holes using a Reed template [2] (Figure 2).
b) Drill three 4.2 mm holes and thread them
with M5 thread.
c) Fix the armboard in a designated place
using a Reed template (Figure 12).
Figure 13
d) Take the tonearm base [10] (Figure 2)
and set it on the armboard so that the
centers of three holes overlap armboard
holes. Fix the tonearm base with three
M5 screws (Figure 13).
