REED 5A - Tonearm Horizontality Adjustment

Figure 21
Figure 22
Figure 23

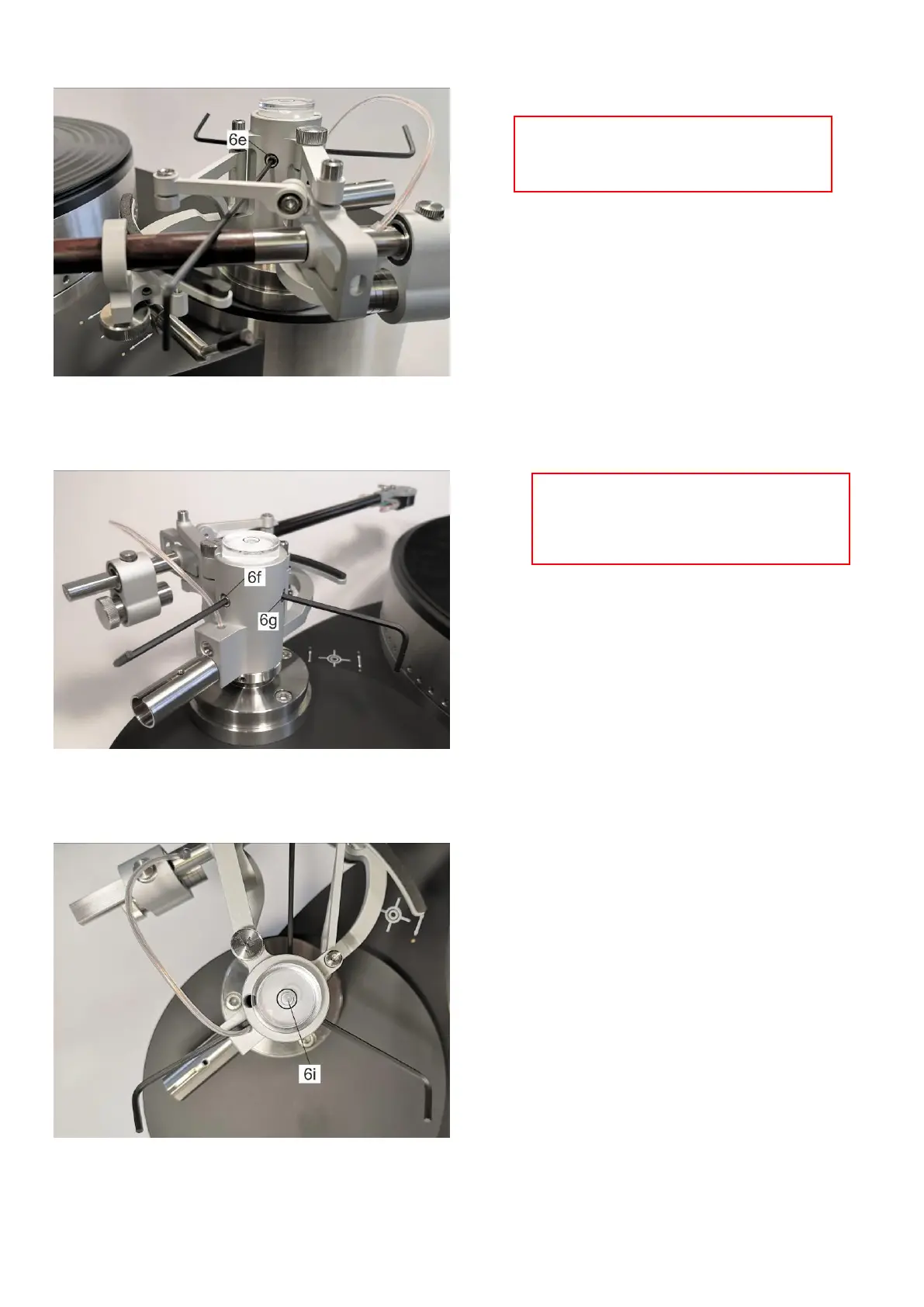

5. Tonearm horizontality adjustment
a) To adjust tonearm horizontality you have
to screw in or out tonearm horizontality
screws [6e], [6f] and [6g] (Figure 21
and Figure 22) with hex (allen) key.
b) Tonearm level bubble [6i] must be
in center of level (Figure 23).
c) When tonearm horizontality is adjusted
all tonearm horizontality screws [6e],
[6f] and [6g] must be fixed (Figure 21
and Figure 22).
Before setting tonearm horizontality
check again if the turntable is set to
a horizontal position (Figure 17).
15
16
By adjusting three screws – [6e],
[6f] and [6g], the anti-skating force
adjusted by manufacturer can be
adjusted manually.
