Reefe VSRM Series - ELECTRICAL PRECAUTIONS; WARRANTY RECORD

Page | 12 Ascento 37 Export St Lytton QLD PH: 1800 807 604 | VSRM Inverter Contant Pressure Pumps | V2016.12

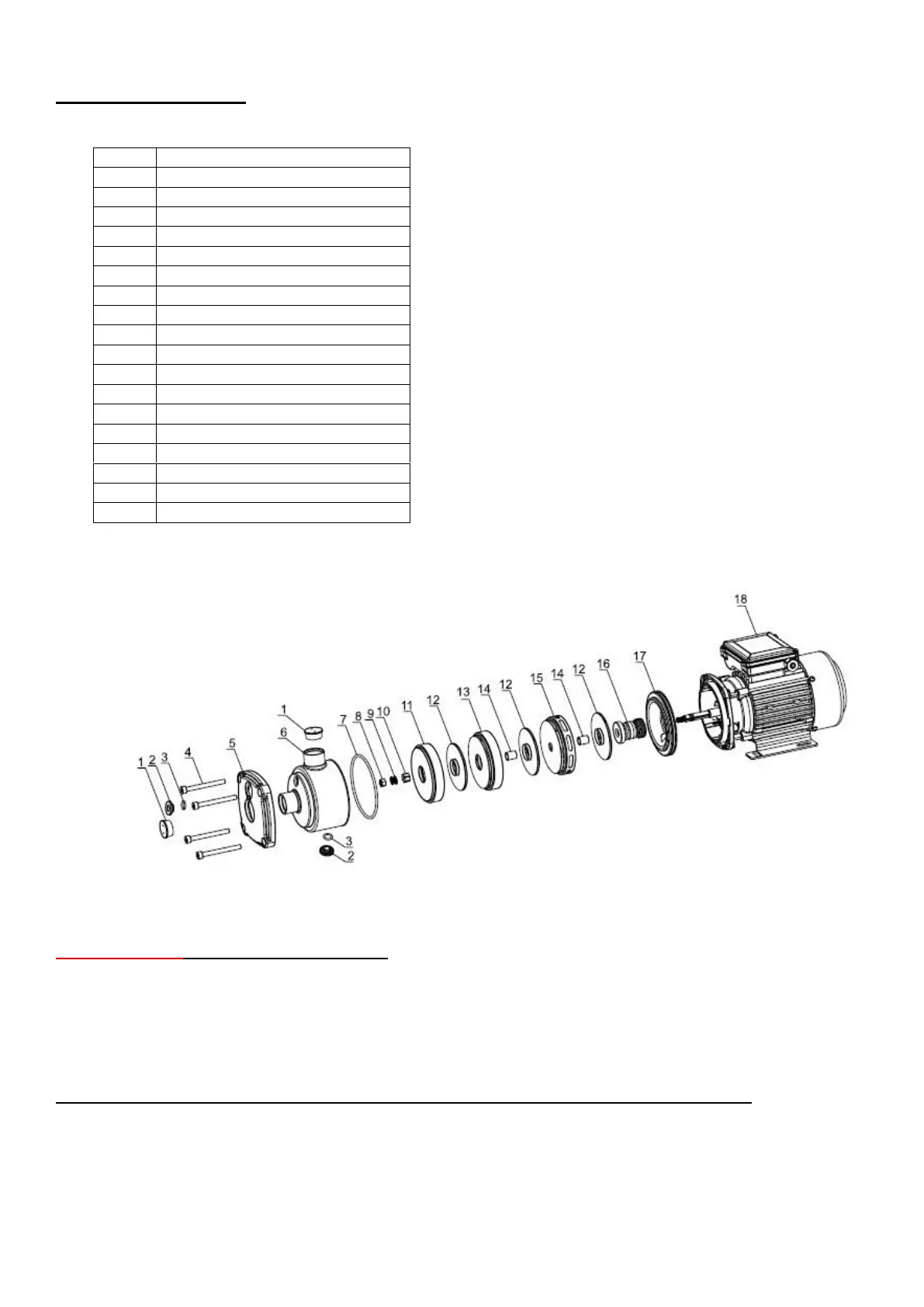

6.2 Exploded View
Quantity of Impellers;
VSRM38-72: 4
VSRM48-72: 5
VSRM39-102: 4
VSRM58-102: 6
VSRM50-270: 4
Important: not all parts are stocked, items such as bolts and O-Rings are commonly available.
(WARNING) ELECTRICAL PRECAUTIONS
Before servicing a pump, always shut off the power supply and then make sure you are not standing in water and
that there is no risk of electrical shock.
If the pump is direct-wired to the electrical circuit, contact a qualified licensed electrician to disconnect it before
attempting any repairs or servicing.
DO NOT ATTEMPT ELECTRICAL REPAIRS OF ANY SORT UNLESS YOU ARE A LICENSED ELECTRICIAN
WARRANTY RECORD - FILL IN AND RETAIN THIS WITH YOUR ORIGINAL PURCHASE RECEIPT
PURCHASER NAME......................................................................................PHONE NO............................................
DATE OF PURCHASE ………../.........../............DEALER/STORE NAME..............…................................…........................
DEALER SUBURB/TOWN….....…...............….......................................PHONE NO….....................................................
BRAND & MODEL NUMBER OF PUMP…….........................................BATCH/SERIAL NUMBER…………………………………..
Do NOT send this form to us, retain it for your record
NO.
Name
1
Dust cap
2
Priming/Bleed Plug
3
O-ring - Priming/Bleed Plug
4
Casing bolts
5
Front Wet-End Clamp Plate
6
Pump Wet-End Casing
7
O-ring – Wet-End Casing
8
Hex Nut – Impeller Shaft
9
Spring washer – Impeller Shaft
10
Impeller Shaft Bush - Front
11
Volute - Front
12
Impeller(s)
13
Volute(s) - Middle
14
Impeller Shaft Bush - Middle
15
Volute - Rear
16
Mechanical Seal
17
Backplate – Pump Wet-end Casing
18
Motor
