Reer VISION VX 152 User Manual

8540571 - 28/04/2008 - Rev.6 11

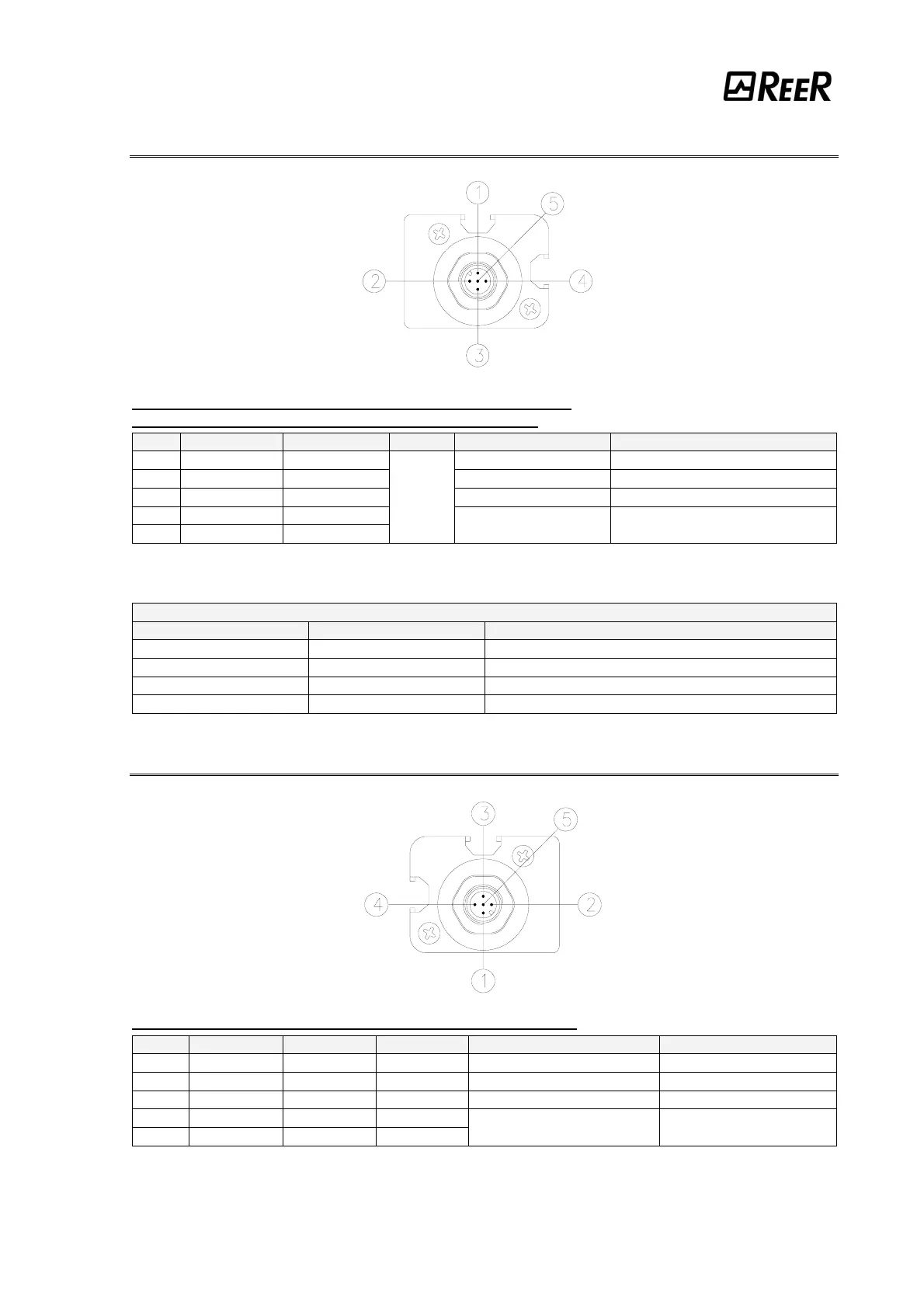

EMITTER CONNECTIONS
EVERY MODEL - 5 poles M12 connector (POWER-SUPPLY).
MASTER MODELS - 5 poles M12 Secondary connector.
PIN COLOR NAME TYPE DESCRIPTION FUNCTIONING
1
Brown
24VDC +24 VDC power supply -
3
Blue
0VDC 0 VDC power supply -
5
Grey
PE Ground connection -
2
White
RANGE0*
4
Black
RANGE1*
INPUT
Barrier configuration
According the normative
EN61131-2 (ref. Table 2)
* OUTPUT only on MASTER Secondary connector
Table 1
TEST and RANGE SELECTION
PIN 4 PIN 2 FUNCTIONING
24VDC 0VDC HIGH range (1 - 18m) (Master/Slave 3 - 18m)
0VDC 24VDC LOW range (0 - 6m)
0VDC 0VDC Emitter in test mode
24VDC 24VDC Selection error
Table 2
RECEIVER CONNECTIONS
SLAVE MODELS - 5 poles M12 connector (POWER-SUPPLY)
PIN COLOR NAME TYPE DESCRIPTION FUNCTIONING
1
Brown
24VDC - +24 VDC power supply -
3
Blue
0VDC - 0 VDC power supply -
5
Grey
PE - Ground connection -
2
White
OSSD1 OUTPUT
4
Black
OSSD2 OUTPUT
Safety static outputs PNP active high
Table 3
