Reese Explore 63123 - Assembly Instructions - Carrier Assembly; Parts List and Tools; Assembling the Carrier

PAGE 2 63123_IN_Rev B • Questions? (800) 234-6992 • ReeseBrands.com
ENGLISH
ASSEMBLY INSTRUCTIONS
ASSEMBLING THE CARRIER:

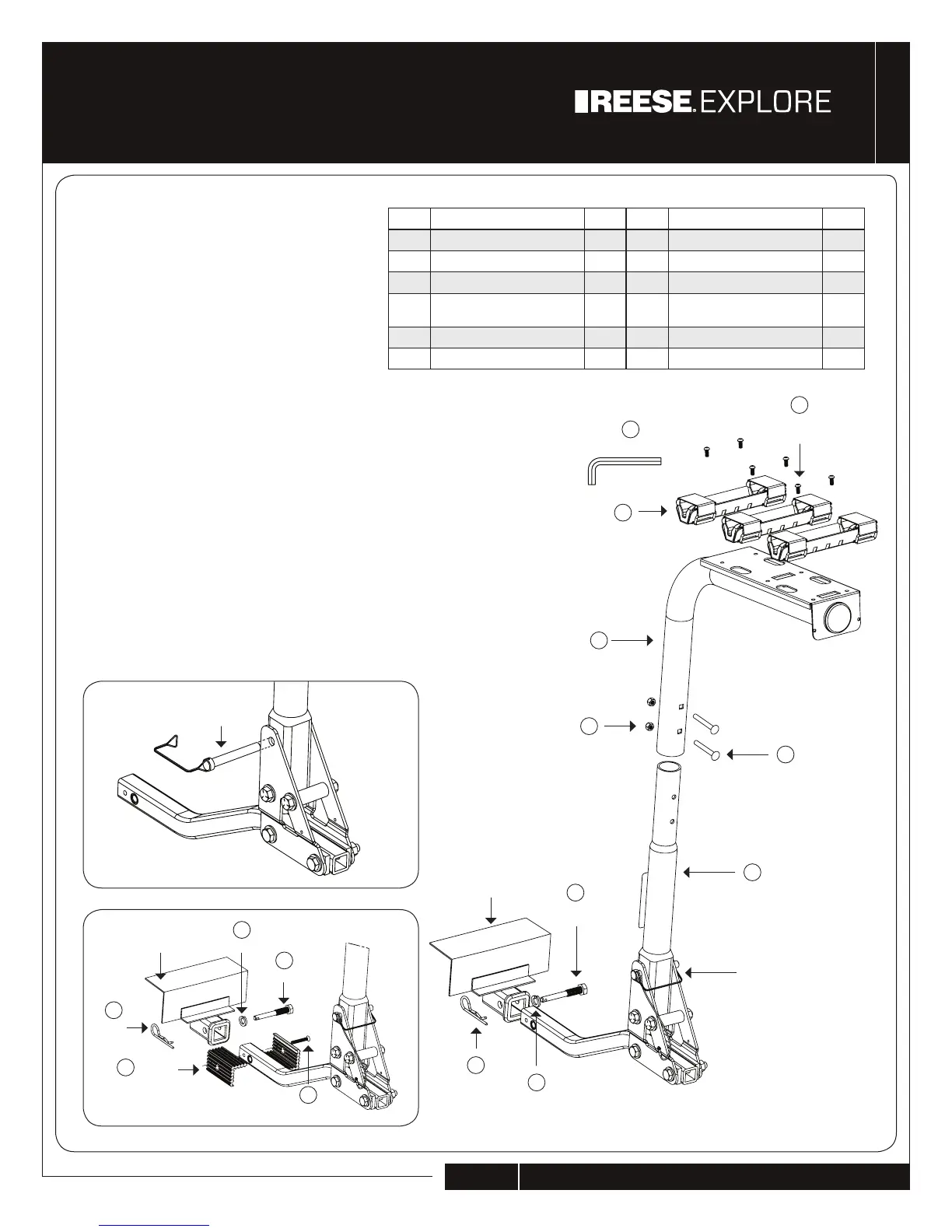

1. Position bike cradles (C) onto top plate of carrier as shown in Fig 1 and secure
with M6x1 x 14mm button head cap screws (D) using the supplied allen
wrench (J).
2. Assemble both tubular sections together (A, B) as shown and fasten together
with (2) 5/16” x 2-1/2” carriage bolts (E) and 5/16-18” lock nuts (F). Tighten to 17
ft-lb. Fig 1.
3. With bike carrier in upright position, install “bail lock pin” through hole in side
plates and upright tube. Secure pin by hooking bail wire over end of pin. Fig 2.
4. Place bike carrier receiver into your receiver hitch. Secure carrier with 1/2”
anti-rattle pin (G), 1/2” lock washer (H) and clip (I). Fig 1.
Note: If your vehicle has a 2” receiver, the supplied 2 piece adapter is required.
Secure 2 piece adapter to carrier with supplied 1/4-20x1-3/4” flat head screw. Then
place carrier into receiver with anti-rattle pin, 1/2” lock washer and clip. Fig 3.
1
Tubular Section, Top
Clip
Tools required for assembly: 5/16” Wrench or
Socket, #2 Philips Screw Driver, 3/4” Wrench
PART DESCRIPTION QTY. PART DESCRIPTION QTY.
A Tubular Section, Top 1 G 1/2” Anti-Rattle Pin 1
B Tubular Section, Bottom 1 H 1/2” Lock Washer 1
C Bike Cradle With Straps 3 I Clip 1
D
M6x1 x 14mm Button Head Cap
Screw
6 J 4mm Allen Wrench 1
E 5/16-18x2-1/2” Carriage Bolt 2 K 1/4-20x1-3/4” Flat Head Screw 1
F 5/16-18” Lock Nut 2 L 2 Piece Receiver Adapter 1
PARTS LIST
A
I
Tubular Section, Bottom
B
Bike Cradle
With Straps
C
M6x1 x 14mm Button
Head Cap Screw
D
5/16-18x2-1/2”
Carriage Bolt
E
5/16-18” Lock Nut
F
1/2” Anti-Rattle Pin
G
1/2” Lock Washer
H
4mm Allen Wrench
J
Bail Pin
3
Adapter
Receiver
Anti-Rattle Pin
Lock Washer
Clip
H
G
L
I
K
Flat Head Screw
Receiver
2
Bail Pin
