6.2 Preparing To Scan
6.2.1 Load Magazine
Slides are loaded upside down into the magazine in the same way as they are loaded for
projection. Magazines are numbered to show the order in which slides are loaded.
The slide changing arm on the scanner has an orange slider. When using Universal magazines
(regardless of the type of slides), the orange slider must be at the end of the slide changing arm.
For CS and all other types of magazine, the slider must be “stowed” in the handle of the slide
changing arm. This is shown in the following pictures from JS.

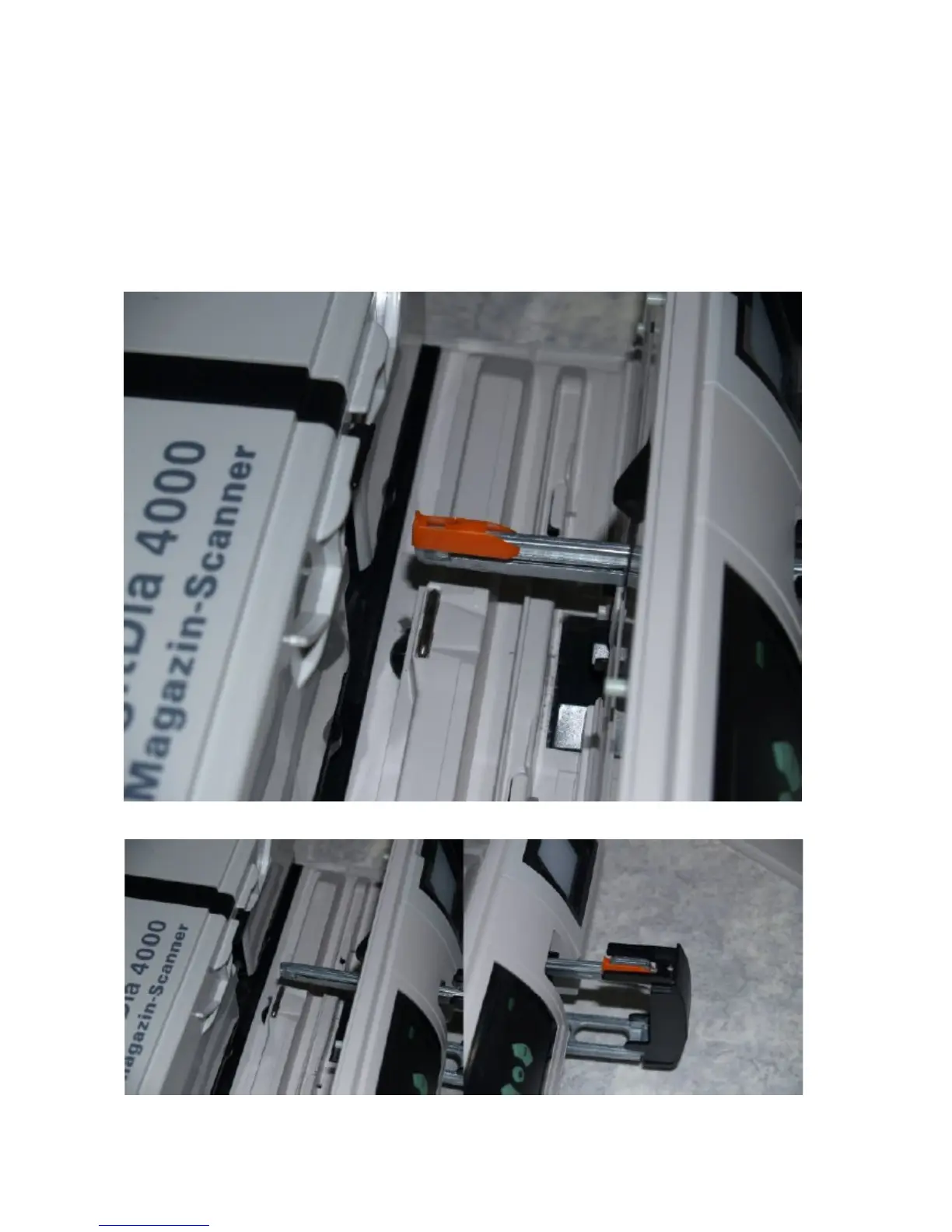

Slider Position for Universal magazines
Slider Position for all other magazines
