Reflex Exvoid User Manual

Description of the device
Reflex ex separator — 21.11.2016 English —
7
2
Description of the device
Note!
In general standard
separators are used for flow velocities up to 1.5 m/s. In general the HiCap (HC) model is used with flow
velocities of 1.5 to 3.0 m/s.
2.1
Devices
2.1.1

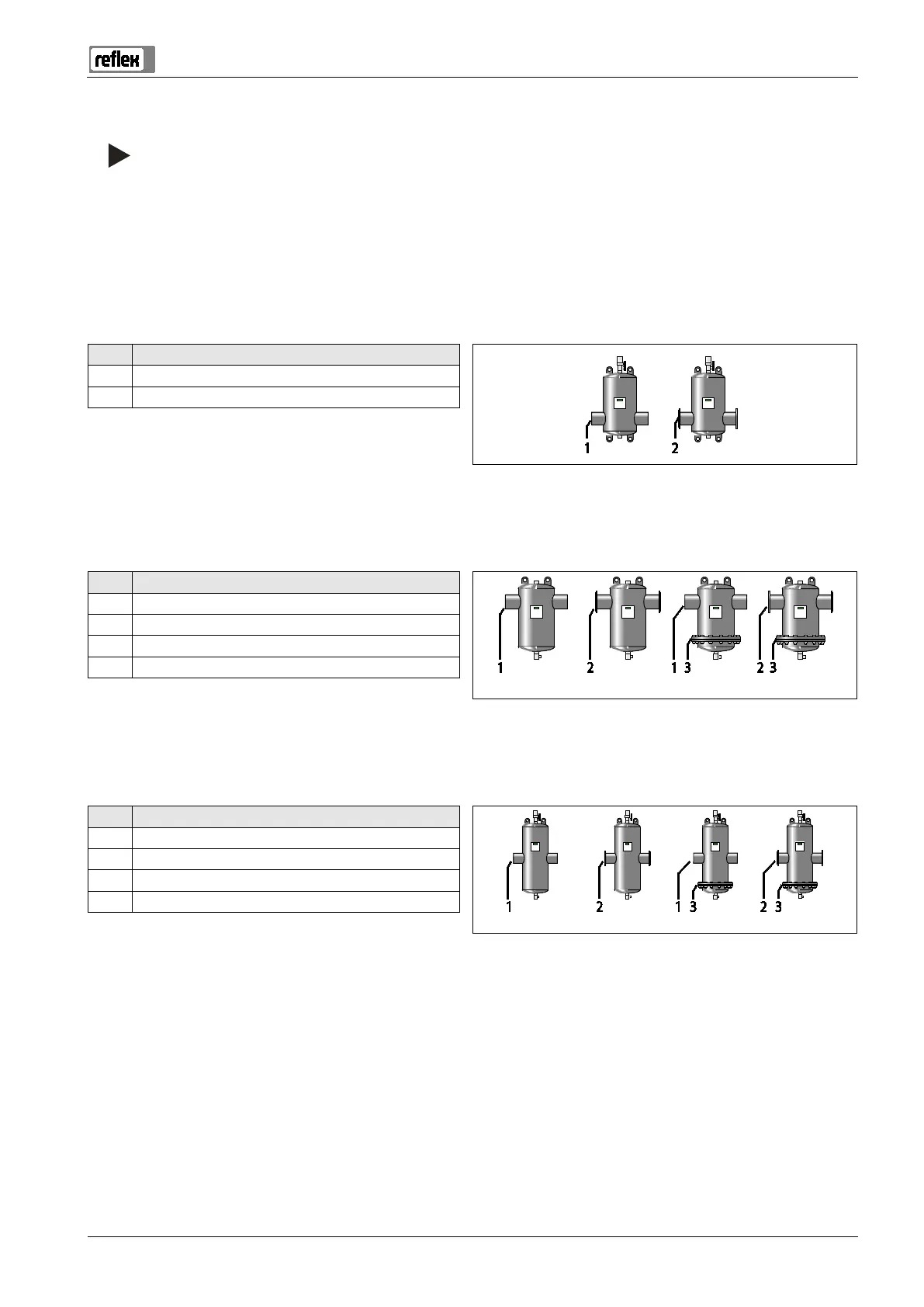

Exvoid / Exvoid HC
A gas/air separator with micro bubble separation removing circulating free air and gas bubbles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
2.1.2
Exdirt / Exdirt HC
A dirt/sludge separator removing circulating free dirt and sludge particles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
1 + 3 Welded connection and service flange
2 + 3 Flange connection and service flange
2.1.3
Extwin / Extwin HC
A combined dirt/sludge separator and gas/air separator removing circulating free air and gas bubbles and free dirt and sludge particles.
The device is available in the following variants:
No.
Variant
1 Welded connection
2 Flange connection
1 + 3 Welded connection and service flange
2 + 3 Flange connection and service flange
2.2
Optional equipment
2.2.1
Sludge separator
The devices can be expanded with the following accessories:
• Magnet insert Exferro
