Rega Planet CD Player User Manual

Output Connections
All the outputs are made via RCA (Phono) type connectors. The
sockets on the REGA products are clearly marked red, white and
black.
Line Out: For output to an audio amplifier.
Right: always the lower row and marked in RED.
Left: always the upper row and marked in WHITE.
CAUTION: SOME AMPLIFIERS AND INTERCONNECTS HAVE BLACK COLOUR
CODING FOR THE LEFT CHANNEL.
Digital Out: for output to digital components such as D.A converter,
digital processor, DAT, or MD, and marked in BLACK.
IMPORTANT: ALWAYS TURN OFF THE PLAYER WHEN CHANGING LEADS.

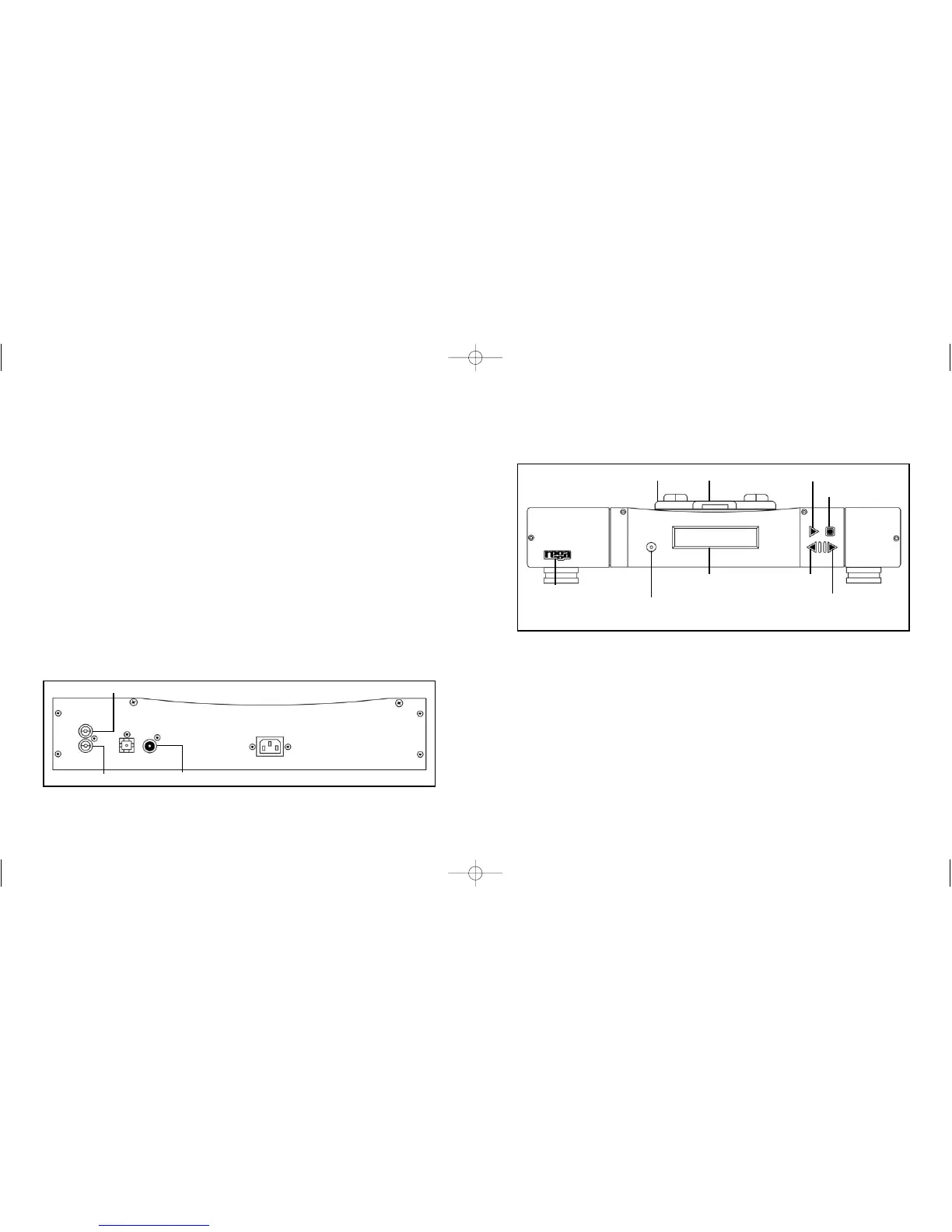

Rear Panel Connections
Powering up
Press the power switch on the front panel, the power indication LED
on the power switch will illuminate.
If there is a disc in the player the number of tracks and the total
running time is briefly displayed, before returning to 0.
If there is no disc in the player, “NO DISC” is displayed.
In Use
RIGHT CHANNEL
OPTICAL
OUT
IEC
LINE OUT
White
Red
Black
Power switch and
power indicator
Lid
Display
Track previous
Track next
Play/Pause
Stop
Finger Lift
Remote
sensor
5 6
LEFT CHANNEL
DIGITAL
OUT
Planet
Planet manual.qxd 28/05/2002 10:26 Page 8

Rega Planet CD Player Specifications

Laser Specifications

laser wavelength	780 nm
line output maximum level	2 V (load impedance minimum 10kΩ)
digital output maximum level	0.5 V (load impedance 75Ω)
digital sampling frequency	44.1 kHz

Power

mains voltage	230 V (minimum 190V maximum 250V)
alternative mains voltage	115 V (minimum 95V maximum 125V)
power consumption	10 W

Weight and Dimensions

dimensions	435W x 100H x 270D
required space for operation	435W x 180H x 315D
