Indoor Blower Motors
v0.2

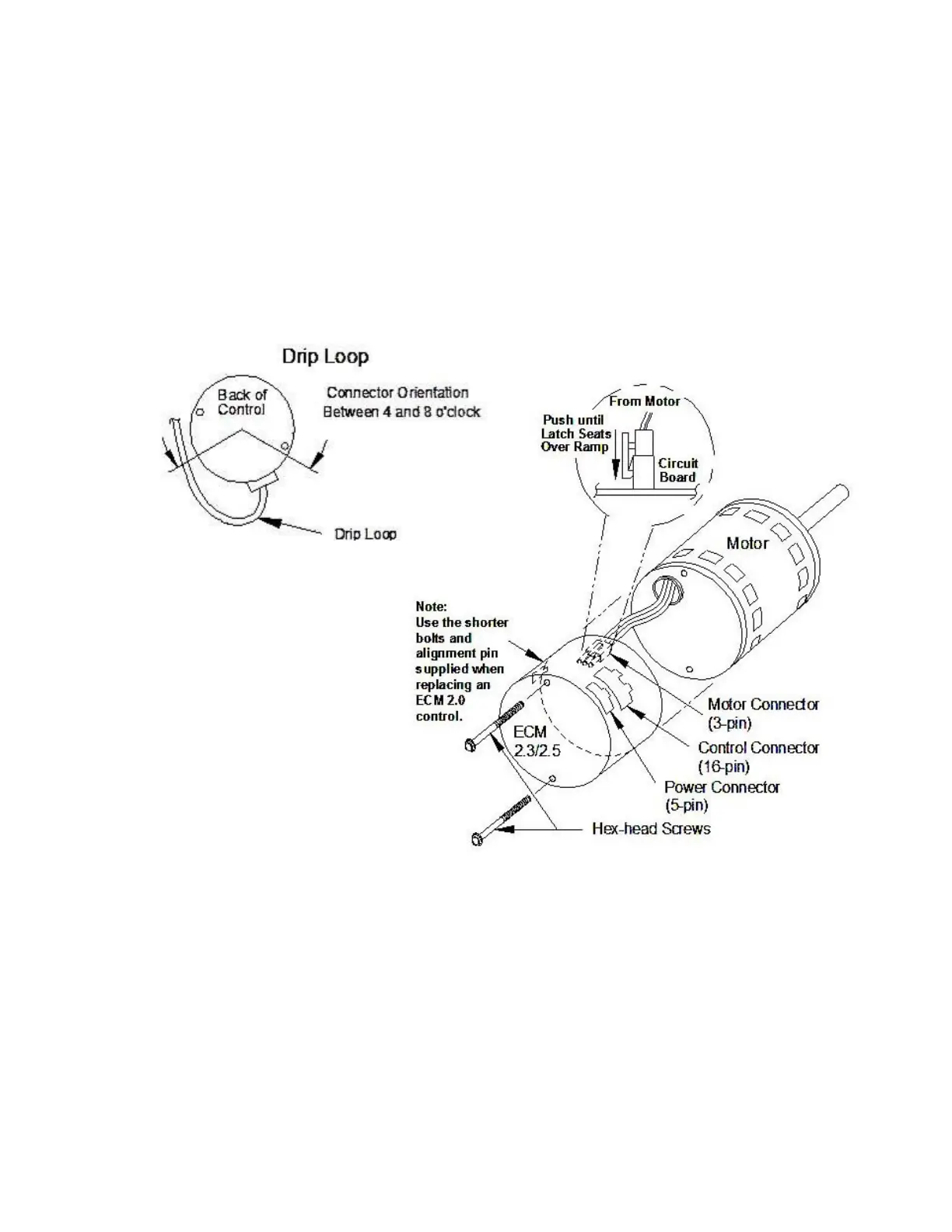

Attaching the new control module
Insert the 3-pin connector back into the new control module. A slight click will be
heard when inserted properly.
If replacing an ECM 2.0 control with an ECM 2.3 control, insert the plastic tab into
the perimeter of the replacement control and align the tab with the mating hole in the
end shield. Use the new shorter bolts provided to ensure a secure attachment.
Orient the control connectors to the end shield between 4 & 8 o’clock insert the bolts
and tighten.
If replacing an ECM 2.3 with and ECM 2.3 control, orient the new control to the
motor’s end shield with the connectors facing down, insert the bolts and tighten.
Re-install the blower/motor assembly into the HVAC system by following the
manufacturer’s guidelines.
Plug the 16-pin connector and the 5-pin connector back into the motor. Make sure
the keyed connectors are inserted properly and securely until they click.
