Engine & Controls
STEERING
Your Regal outboard features a mechanical-hydraulic rack style
steering system. The unit utilizes valves which permit hydraulic fl uid
to pass through the system allowing the steering arm at the outboard
to turn the vessel to port or starboard. This check valve cluster is
located behind the steering wheel. The hardware at both the helm
and engine must be checked regularly for tightness, lubrication, and
leaks. Check the steering system for full steering to port and starboard
before disembarking.

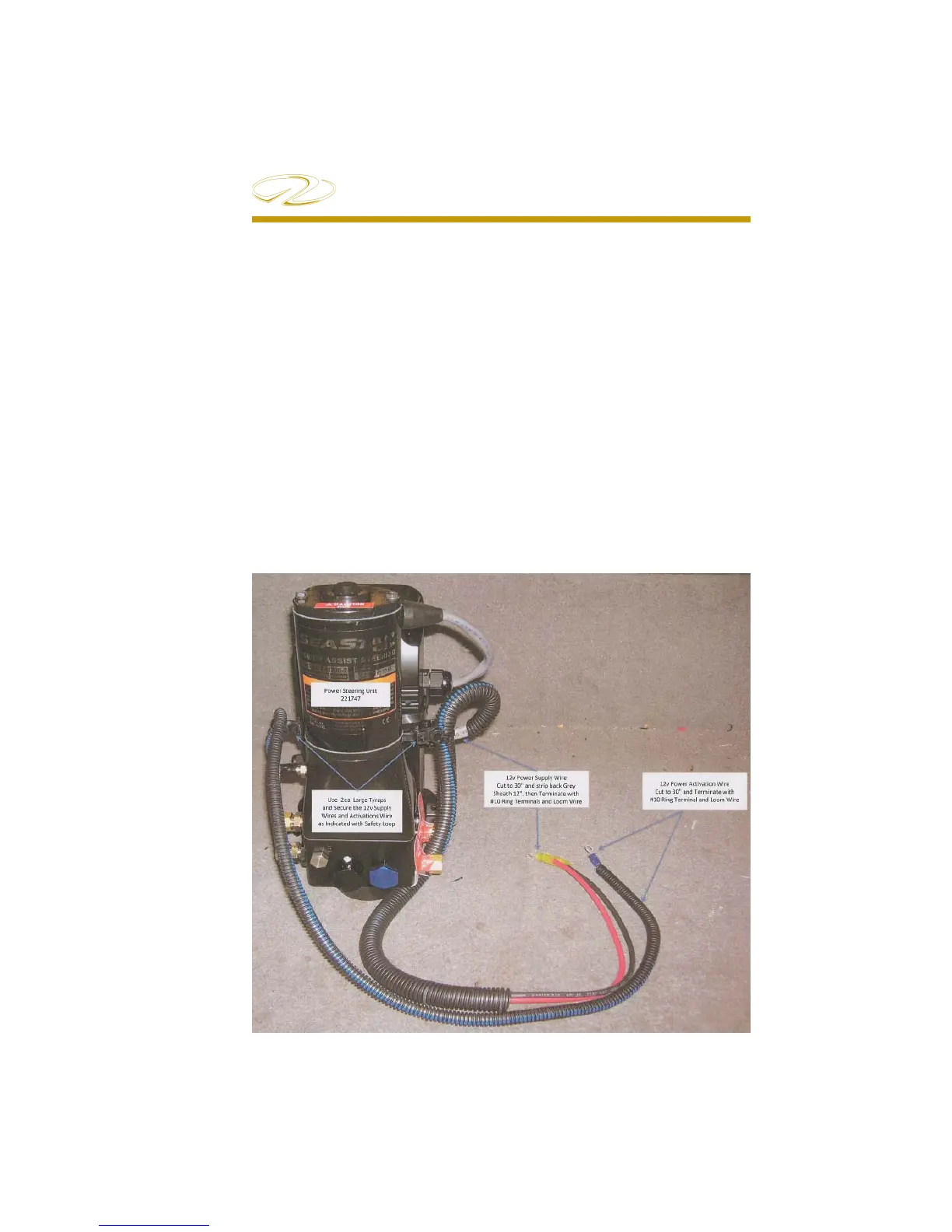

As an outboard option, a power assist steering system is available.
The pump used in the optional system is shown below and the system
layout is on the following page.
3-25
