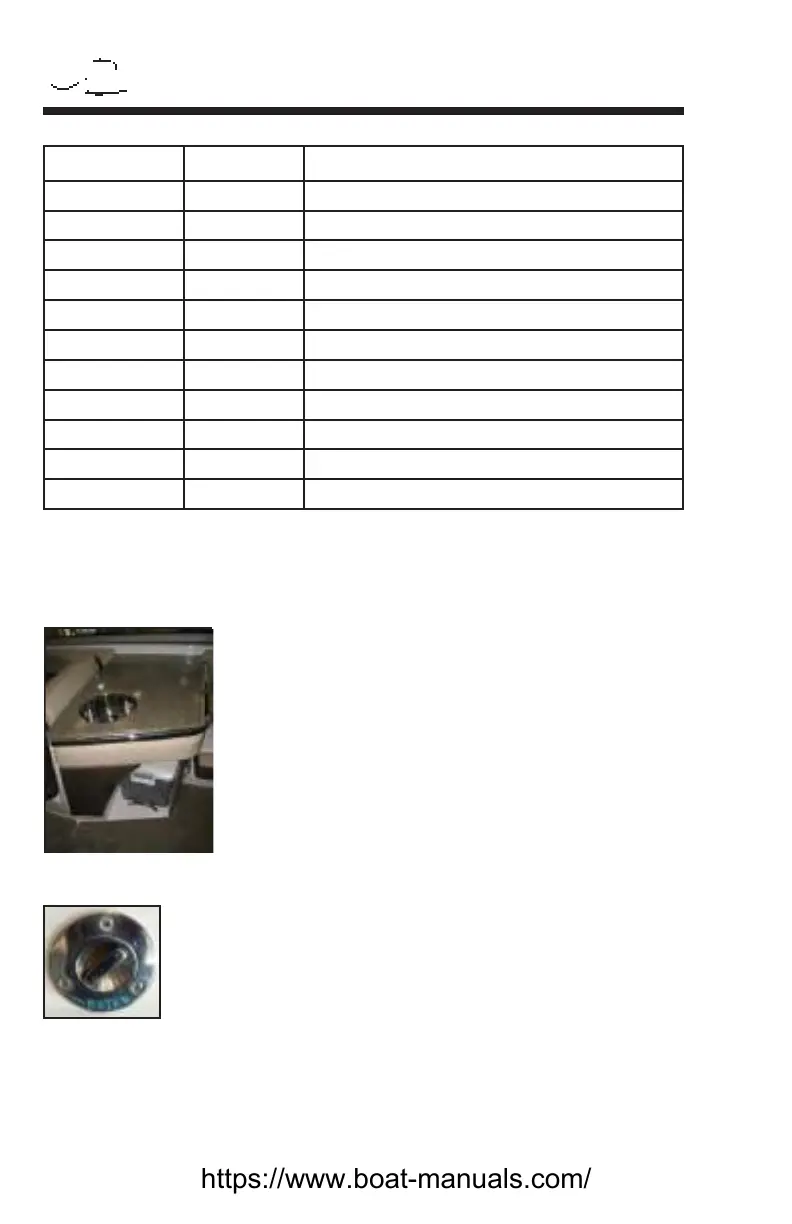

4-14
COLOR GAUGE FUNCTION
Red 4 Positive Feed
Red 2 Positive Feed, Starter Battery
Red 2/0 Main DC Panel Feed
Red 2/0 Battery Cable To Engine
Red / Black 16 Windlass Up
Red / White 16 Windlass Down
Yellow / Black 10,16 Stereo Memory
Yellow / Black 16 Waste Tank Monitor
Pink 16 Fuel Tank Sender
Red / Black 16 Stereo, Regal Vue
Yellow / Red 14 Engine Cranking Circuit
FRESH WATER SYSTEM
WATER FILL
Your vessel is equipped with a fresh water
pressurized supply system. It consists of a water
tank, ll/vent tting, sink, drain hose, faucet and
a washdown or transom shower, if equipped.
Water is supplied by a fresh water pressure pump.
A water ll tting is normally located on the
deck area. It features an internal vent. When
the water tank reaches full capacity water will
be seen cycling from the vent into the ll hose.
To energize the system there is a dash switch
marked fresh water pump. When activated the
switch sends power to the pressure pump which
supplies fresh water.
When the water supply line is full a pressure valve switch releases and
the fresh water pump stops.
We recommend turning the water pressure switch “off ” when the
vessel is left for extended periods.
