23
Model 3.0 - This model can only be replaced
with an OEM 3.0.
Reinstall the blower/motor assembly into the
HVAC system by following the manufacturer’s
guidelines.
Plug the 16-pin or 4-pin communication connector
and the 5-pin connector back into the motor. The
connectors are keyed. Observe proper orientation.

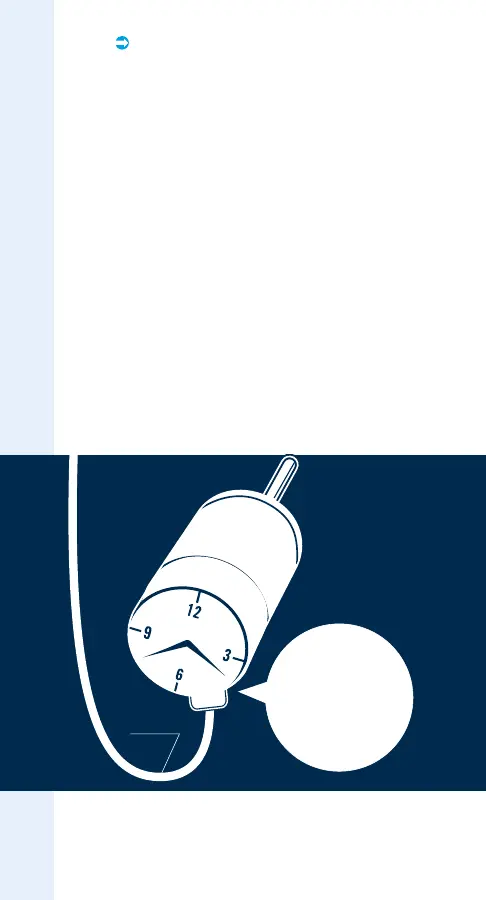

Be certain to form a drip loop so that water cannot
enter the motor by draining down the cables (see
Figure 7 below).
Go to the “Final Installation Checks” on
pages 53-54.
DRIP LOOP
Connection
Orientation
Between 4 and 8
o’clock
Figure 7
7.
8.
9.
10.
To Next Page
