Regency Ei29 - Page 14

14
Installer's Information

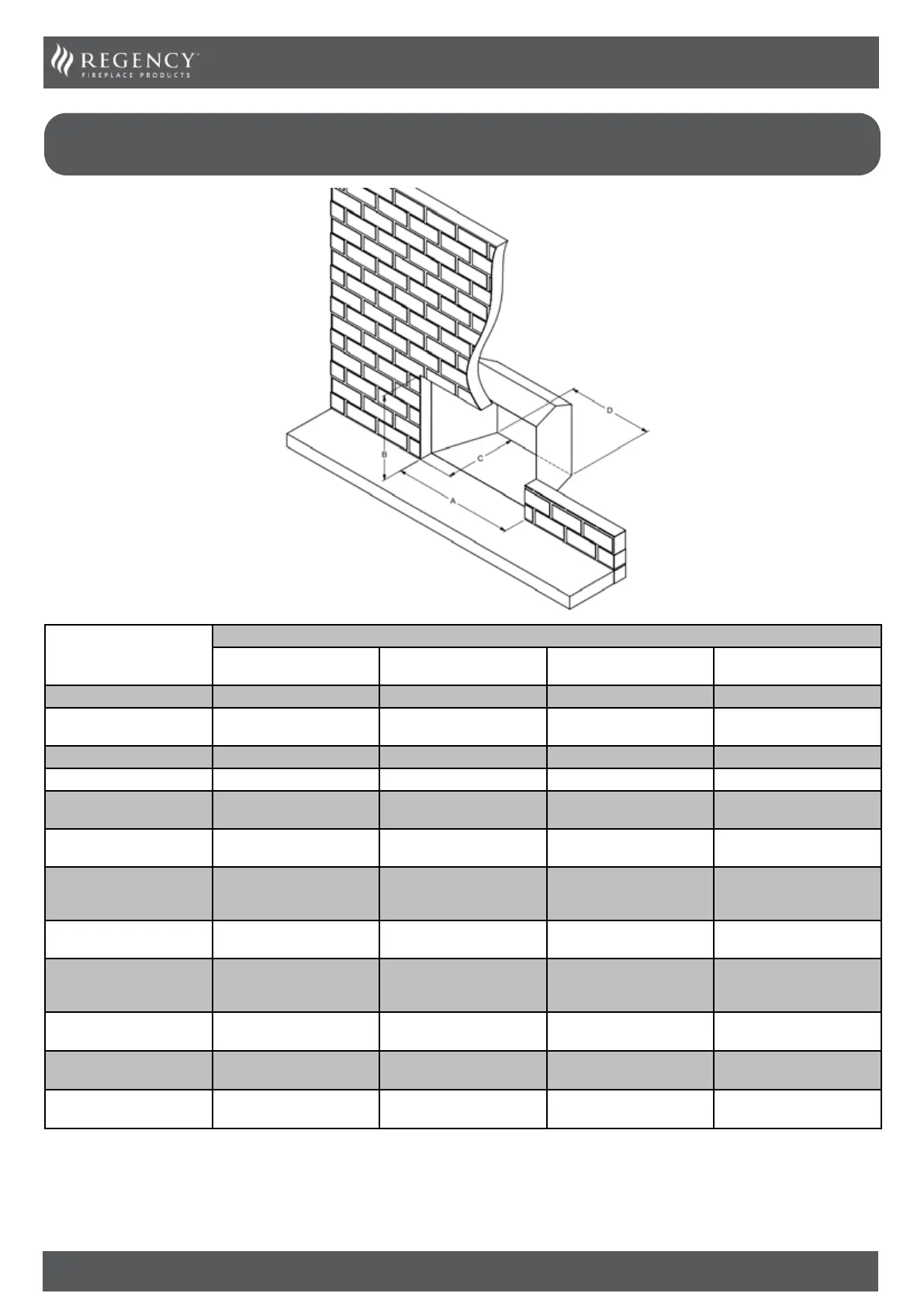

MINIMUM FIREPLACE OPENING SIZES
WITH VARYING FACEPLATE OPTIONS
Faceplate
Dimensions
Min Install Width
Width (A)
Min Install
Height (B)
Min Install
Depth (C)
Min Rear
Width (D)
3 Sided Finishing Trim* 29-5/8" (752mm) 20-5/16" (516mm) 11-13/16" (300mm) 23-5/16" (592mm)
Finishing Trim w/ Backing
Plate
30-5/8" (778mm) 20-3/4" (527mm) 11-13/16" (300mm) 23-5/16" (592mm)
4 Sided Finishing Trim** 29-5/8" (752mm) 20-5/16" (516mm) 11-13/16" (300mm) 23-5/16" (592mm)
Flush Faceplate 29-13/16" (757mm) 20-9/16" (522mm) 11-13/16" (300mm) 23-5/16" (592mm)
Flush Faceplate w/
Backing Plate
30-5/8" (778mm) 20-3/4" (527mm) 11-3/4" (298mm) 23-5/16" (592mm)
Flush Faceplate w/
Premium Surround
29" (737mm) 20-3/16" (513mm) 10-7/16" (265mm) 23-5/16" (592mm)
Flush Faceplate w/
Premium Surround and
Backing Plate
30-5/8" (778mm) 20-3/4" (527mm) 10-3/8" (264mm) 23-5/16" (592mm)
Flush Faceplate w/
Traditional Surround
28-7/16" (722mm) 20-1/8" (511mm) 9-3/4" (248mm) 23-5/16" (592mm)
Flush Faceplate w/
Traditional Surround and
Backing Plate
30-5/8" (778mm) 20-3/4" (527mm) 9-11/16" (246mm) 23-5/16" (592mm)
4 Sided Flush Faceplate 29-13/16" (757mm) 20-13/16" (529mm) 11-13/16" (300mm) 23-5/16" (592mm)
3 Sided Custom Faceplate 29-13/16" (757mm) 20-9/16" (522mm) 11-13/16" (300mm) 23-5/16" (592mm)
4 Sided Custom Faceplate 29-13/16" (757mm) 20-13/16" (529mm) 11-13/16" (300mm) 23-5/16" (592mm)
* Bottom trim from 4 sided finishing trim is removed to create a 3 sided.
** Included with appliance
