Regency I2400M 16

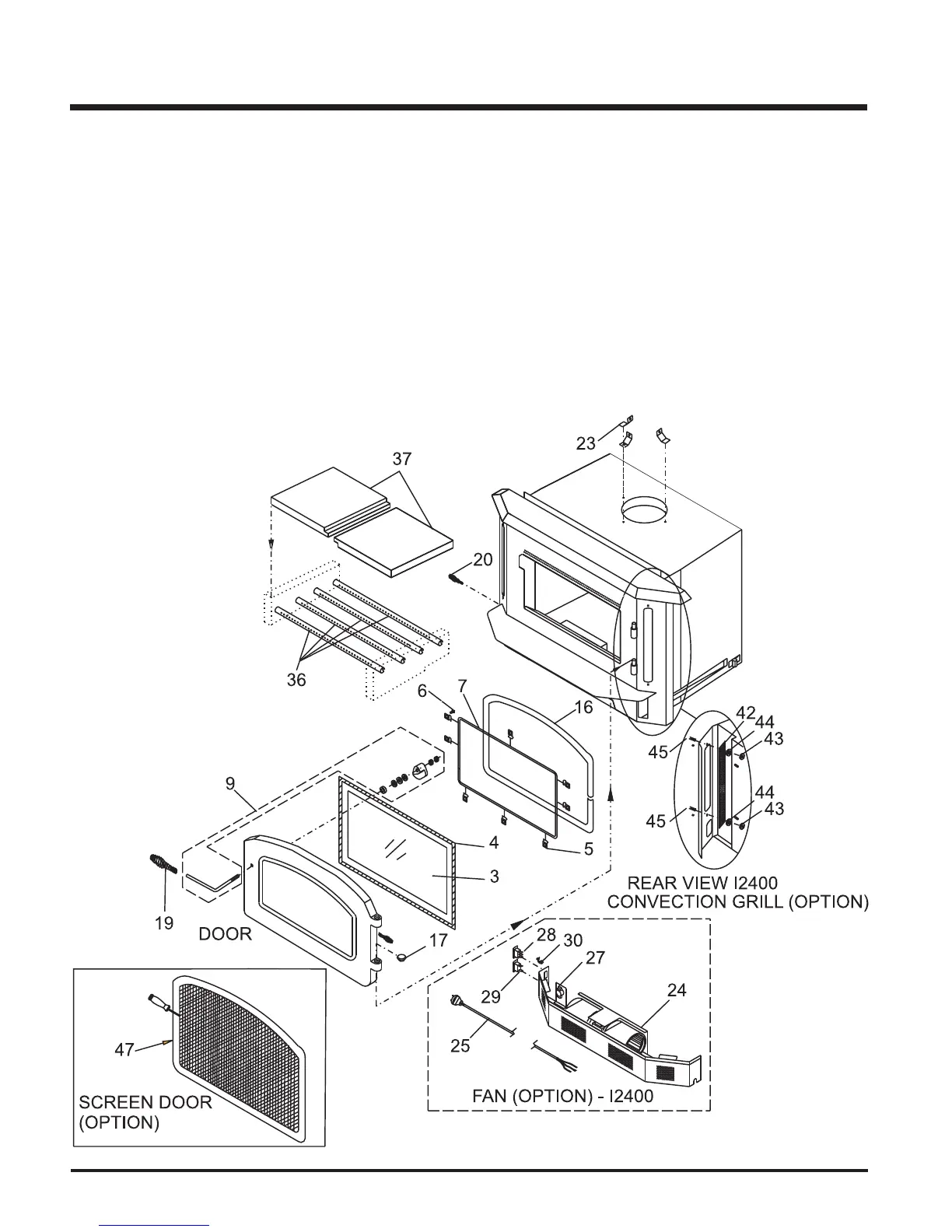

MAIN ASSEMBLY & OPTIONS - I2400M
PARTS LIST
Part # Description
142-917 Fan Assembly
24) 910-157/P Fan Motor 120 Volts
25) 910-678 Power Cord 120 Volts
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Hi / OFF / Low
Switch (3-way)
29) 910-138 Auto / Manual On /
OFF Switch
30) * Grommet Strain Relief
36) 033-953 Air Tube 3/4" (Qty:4)
37) 020-957 Baffl e (2/set)
Part # Description
42) 163-932 Convection Grill - Gold (Opt)
163-930 Convection Grill - Blk (Opt)
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4"
Blk Carriage
47) 846-102 Screen Door
948-216 Regency Logo
918-171 Manual
*Not available as a replacement part.
Part # Description
1) 846-910 Door Assy - Large Gold
(no glass)
846-916 Door Assy - Large Blk
(no glass)
2) 846-304 Glass - Replacement
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (8/set)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large
9) 846-973 Door Handle Assembly
16) 846-570 Door Gasket Kit
17) 846-918 Hinge Caps - Gold Plated
(2/set)
19) 948-101 Spring Handle - Large
20) 948-102 Spring Handle - Small
23) 846-235 Flue Brackets Package
