Regency P42 - Door and Louver Installation

Regency
®
P42-4 Zero Clearance Direct Vent Gas Fireplace 27
INSTALLATION

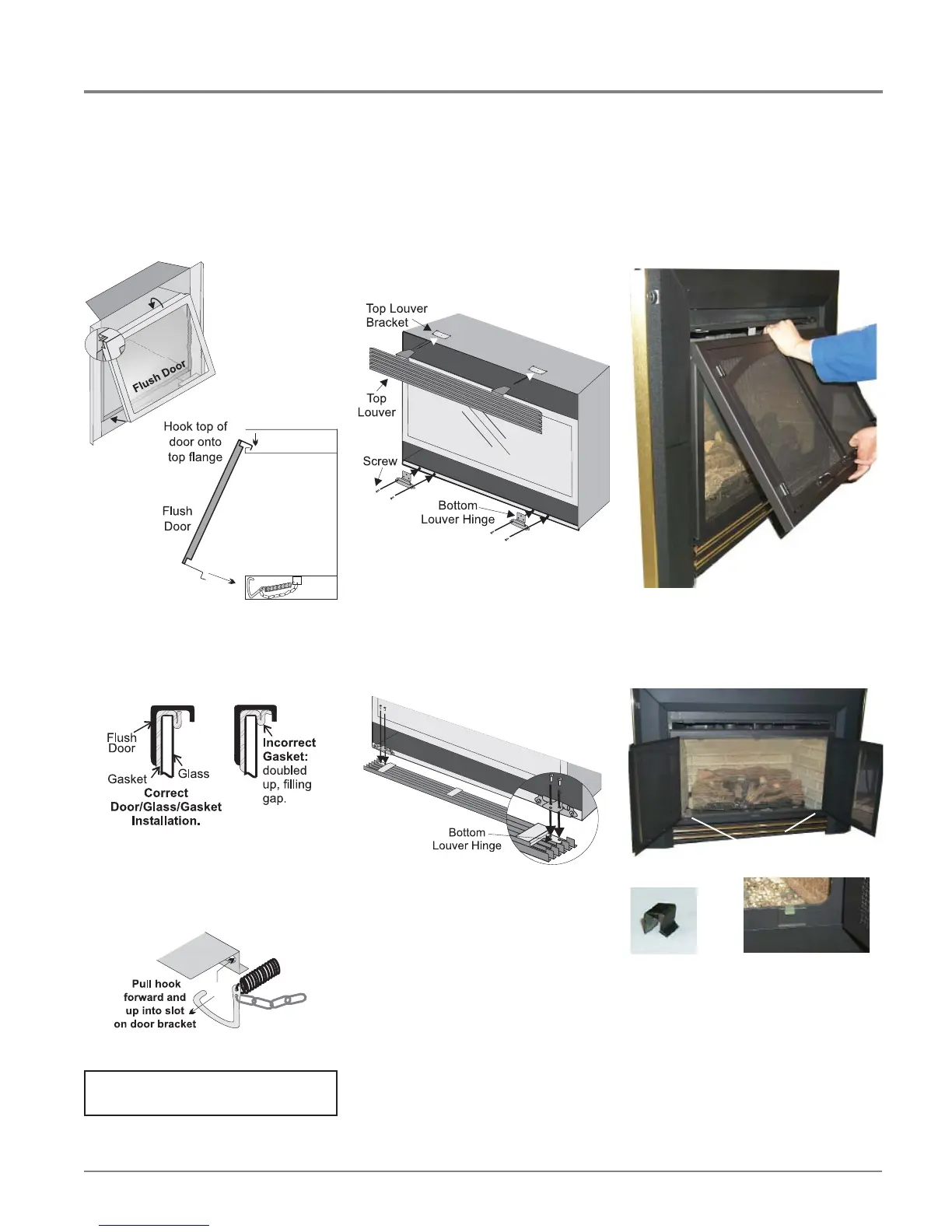

Diagram 1
Diagram 3
STANDARD
FLUSH DOOR
The standard fl ush door comes with a black
frame. To install the frame, simply hook the top
door fl ange onto the top of the unit and swing
the door towards the unit, diagram 1.
Diagram 2
NOTE: Springs must always be OVER
not under the gas line.
Be careful that the glass gasket does not roll
up; there must be a gap between the gasket and
the door lip to ensure that the door sits securely
on the unit. Diagram 2.
Use the hook to pull the spring out until you
can put the hook into the slot on the bottom
door bracket. Repeat for 2nd and 3rd spring.
See diagram 3.
FLUSH LOUVERS
1) Install the top louver by sliding the two
bracket clips into the brackets located
underneath the top of the fi rebox. Diagram
1.
2) Attach the 2 bottom louver hinges to the
bottom fl ange on the fi rebox using 2 screws
per hinge. Diagram 1.
To remove the fl ush door, reverse the above
steps.
Note: Top and bottom louvers are
different.
Diagram 1
Diagram 2
3) Attach the bottom louver to the 2 hinges
using 2 screws per hinge. Diagram 2.
DOUBLE SCREEN
DOORS
1) Pull out the top louver.
2) Center the screen door and hook over the
fl ush door.
Clip locations
Clip installed on right side.
3) Open the screen door(s) and secure the
screen door to the fl ush door front with 2
clips on the bottom left and right side.
