5.5 Inserting the pipe
Insert the pipe into the fitting and push until it is fully
home. There should be a slight resistance when inserting
the pipe.

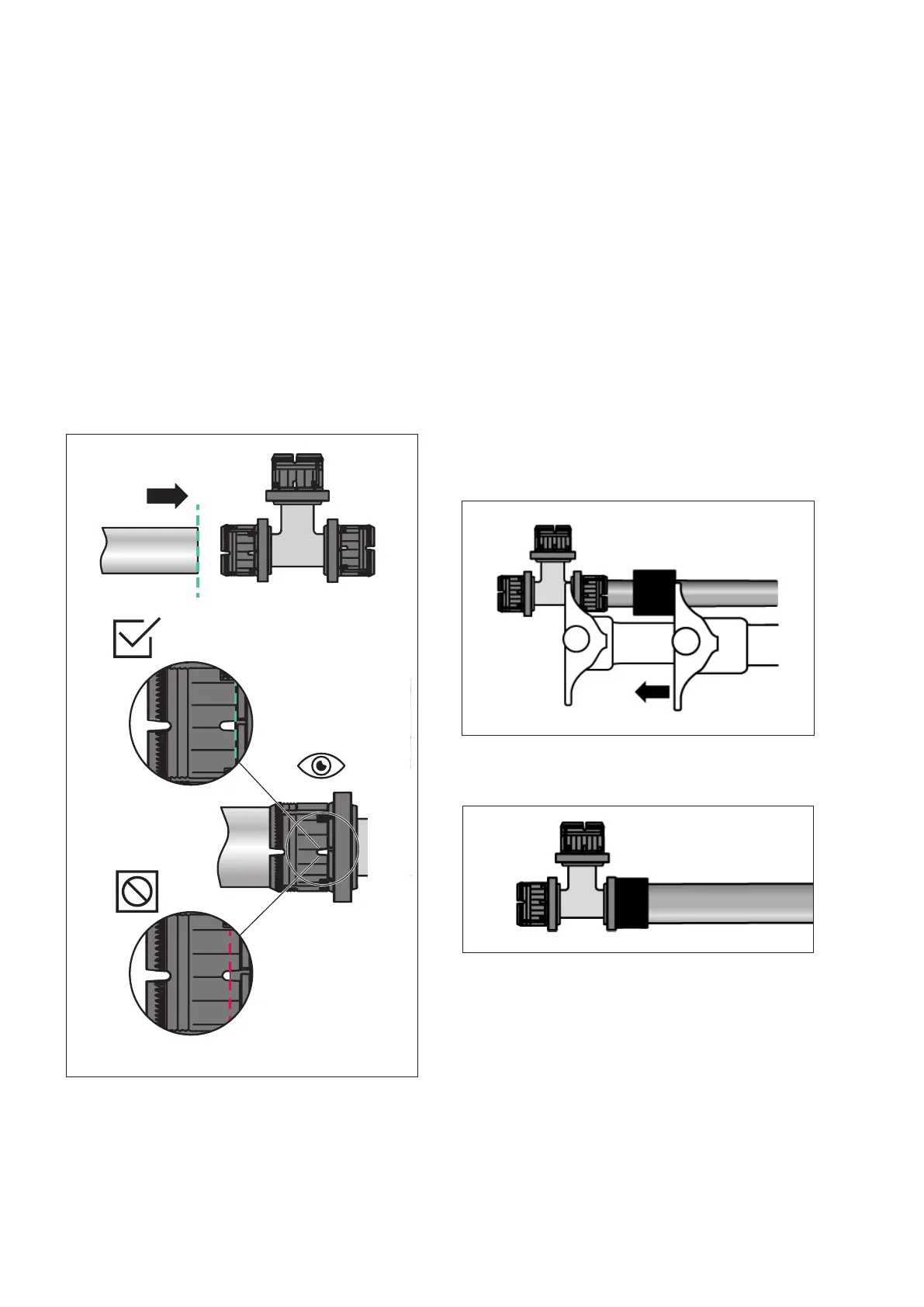

After insertion, check the correct insertion depth via the
inspection windows. Make sure the inspection window is
completely filled by the pipe.
5.6 Compressing the joint
Push the compression sleeve towards the inner sleeve far
enough that you are able to place the jaws on the outside
edge of the sleeve and the outside edge of the clip.
Place the tool jaws over the pipe, so that it is in firm
contact with the pipe and fitting body, as well as the outer
edge of the sleeve and outer edge of the clip.
Double check the insertion depth of the pipe through the
inspection windows prior to compression.
Compress the joint.
Joint before compression
Joint after compression
