The instrument key module is connected to the bottom
of theinstrument display module via cable.
Introduction to various keys:
◆[start/stop]key: key, substituted by word “start/stop”;
◆[plus]key: + key,substitutedbyword“plus”;
◆[minus]key: - key, substituted by word “minus”;
◆[headlight]key: key, substituted by word “headlight”;
◆[walk]key: key, substituted by word “walk”.
3. Function Overview
The instrument displays the followings:
◆ Battery level display
◆ Real-time speed display
◆ Mileage data (total mileage, trip distance, trip time,
max speed, average speed, average power
consumption, instantaneous power consumption,
motor power, cycling power and remaining mileage)
◆ Assist level display
◆ Headlight on and off
◆ 6 km/h assist walk function

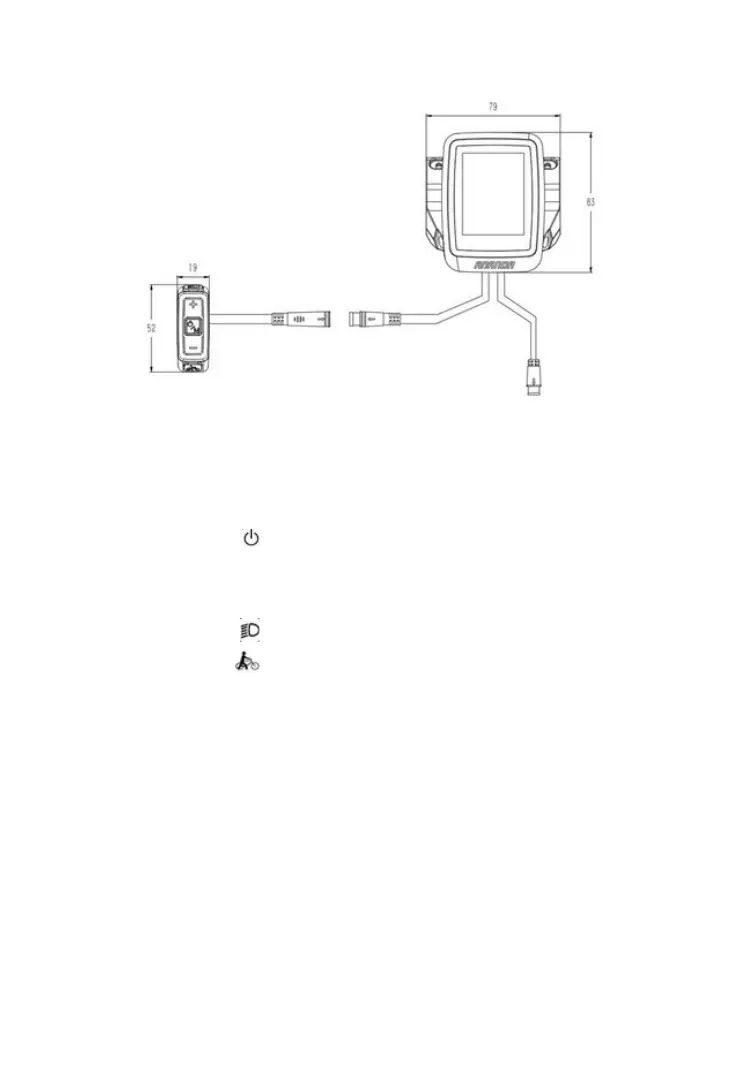

2.2 Overall dimension (in mm)
