Rekluse Core EXP - Hydraulic Page 5
HUB & CLUTCH PACK
INSTALLATION

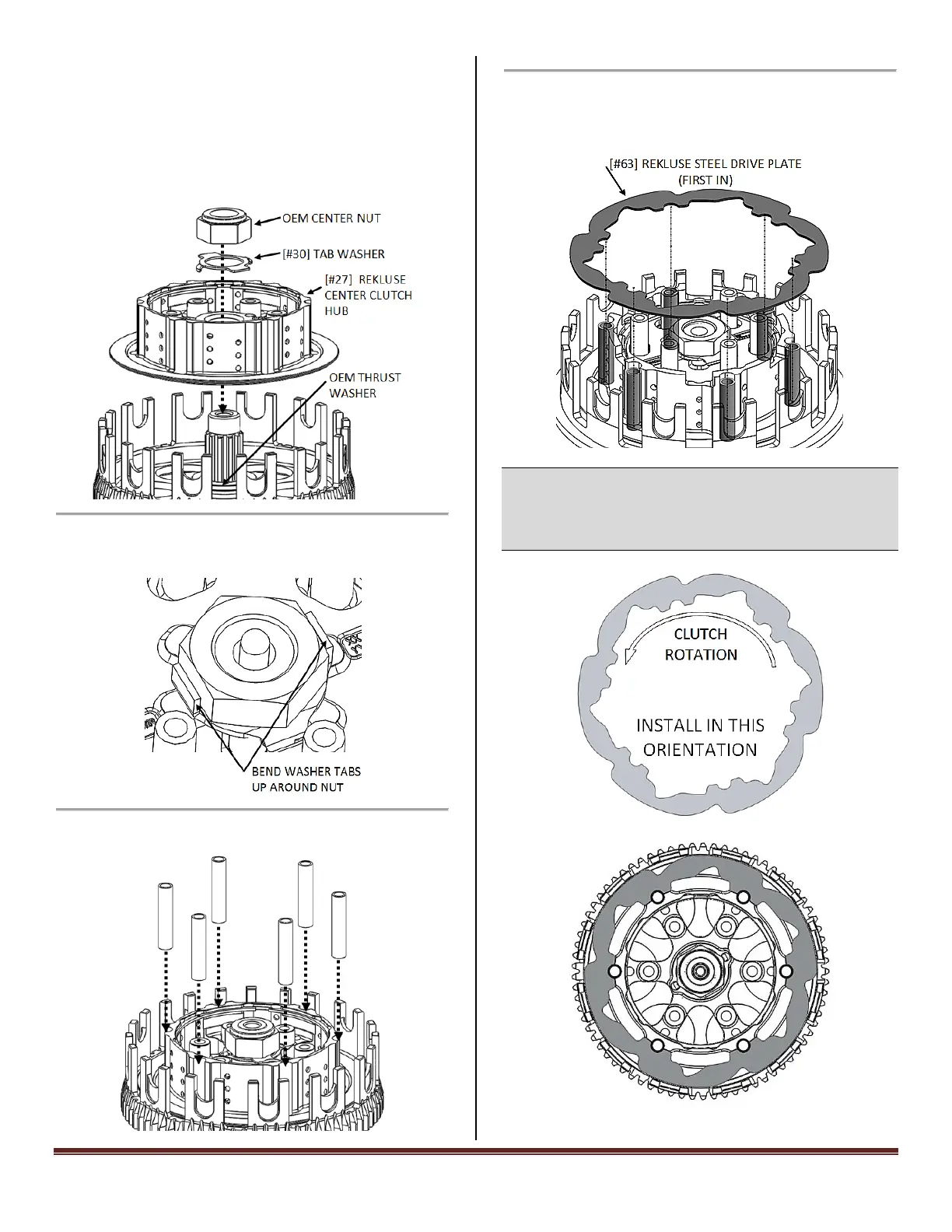

5. Install the Rekluse Center Clutch Hub, making
sure the OEM thrust washer is in place.
6. Torque the nut to OEM specification, and bend
up both tabs of the tab washer using channel-
lock pliers.
7. Seat 6 of the OEM drive pins into the hub.
8. Install the first TEC drive plate in the orientation
shown (all drive plates will follow this
orientation).
NOTE: Proper orientation of the drive plates is
critical for optimal clutch performance. If you install
them backwards, the clutch will still function but will
lack proper modulation performance.
