Robin
8&0
Work
s
hop
Manua
l
Supplement
The
body
Fi
gu
re

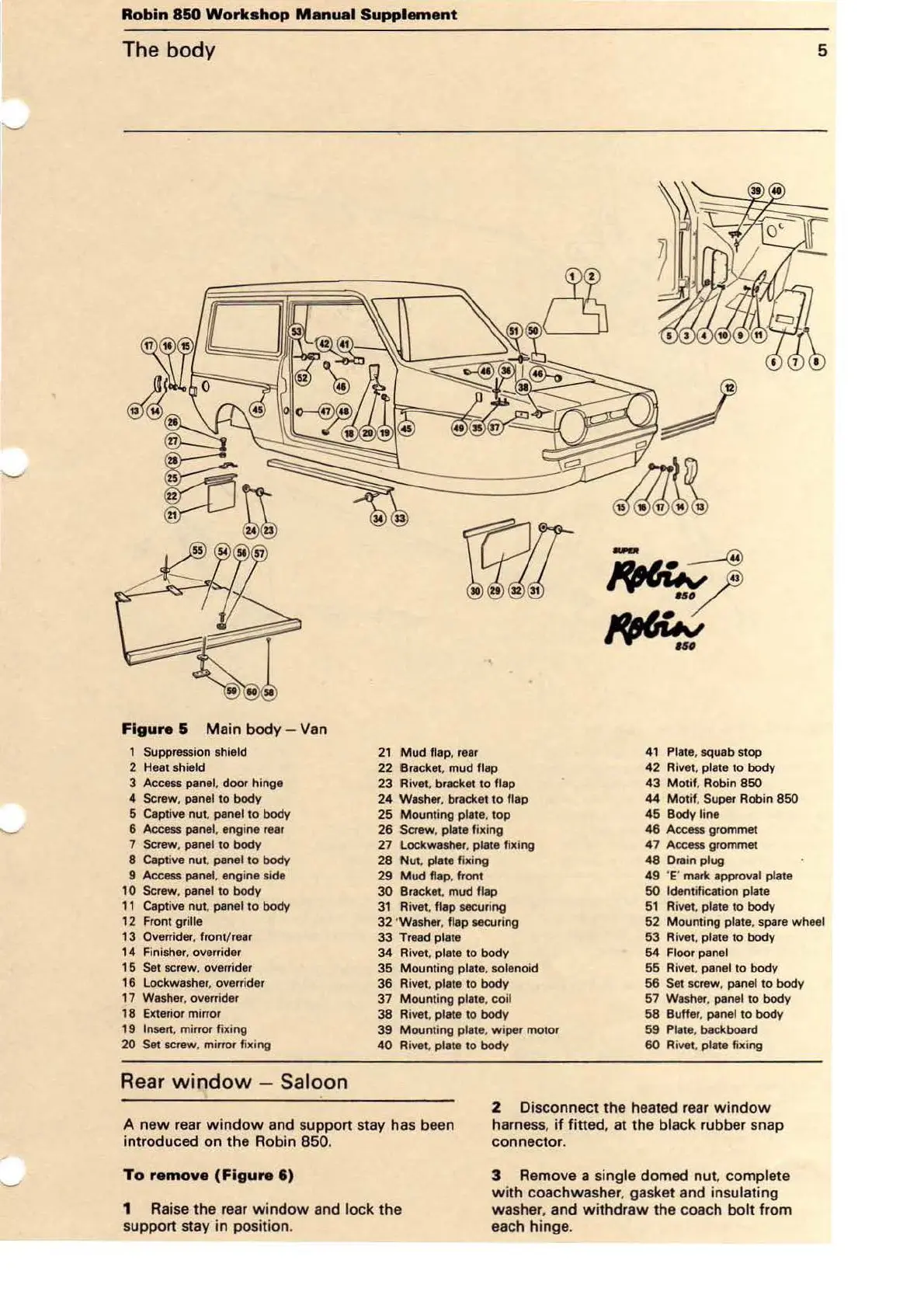

& Main body - Van
1 Suppression shield
2 Heat shield
3 Access
panel, door hinge
4
Screw. panel to body
5 Captive
nut. panel to body
6 Access panel. engine rear
7
Screw. panel
to
body
8 Captive nut. panel
to
body
9 Access
panel, engine side
10
Screw. panel to body
21
!Mud flap. rear
22 Bracket, mud
flap
23 Rivet. bracket to flap
24 Washer. bracket
to
flap
25 Mounting
plate,
top
26 Screw. plate fixing
27 Lockwasher, plate fixing
28
Nut. plate fixing
29
Mud
flap, front
30
Bracket, mud flap
31
Rivet. flap securing
41
Plate. squab stop
42
Rivet, plate to body
43
Motif. Robin
850
44
Motif
, Super Robin
850
45
Body line
46 Access grommet
47 Access grommet
48
Drain plug
49 'E' mark approval plate
50
Identification plate
51
Rivet. plate
to
body
5
11
Captive
nut
. panel
to
body
12
Front grille
13
Overrider, front/rear
14
Finisher, overrider
32
'Washer, flap securing
33 Tread plate
52
Mount
ing plate, spare wheel
53 Rivet, plate
to
body
1 5
Set screw, overrider
16 Lockwasher, overrider
17
Washer, overrider
18
Exterior mirror
19
Insert, mirror fixing
20
Set screw, mirror
fix
ing
Rear
window
- S
al
oon
34 Rivet, plate
to
body
35
Mounting plate. solenoid
36
Rivet. plate to body
37
Mount
ing plate, coil
38 Rivet,
plate to body
39
Mount
ing plete. wiper motor
40
Rivet. plate to body
54 Floor panel
55 Rivet, panel
to
body
56
Set screw, panel
to
body
57 Washer. panel
to
body
58
Buffer. panel to body
59 Plate, backboard
60 Rivet. plate fixing
A new rear
window
and support stay has been
introduced on the Robin
850.
2 Disconnect the heated r
ear
window
harness,
if
fitted, at the black rubber snap
connector.
To
remove
(F
i
gure
6)
1 Raise the
rear
window
and lock the
support stay in position.
3 Remove a
single domed nut. complete
with
coachwasher. gasket and insulating
washer. and withdraw the coach
bolt
from
each hinge.
