Reliant ROBIN 850 - Page 161

The interior Section R
7

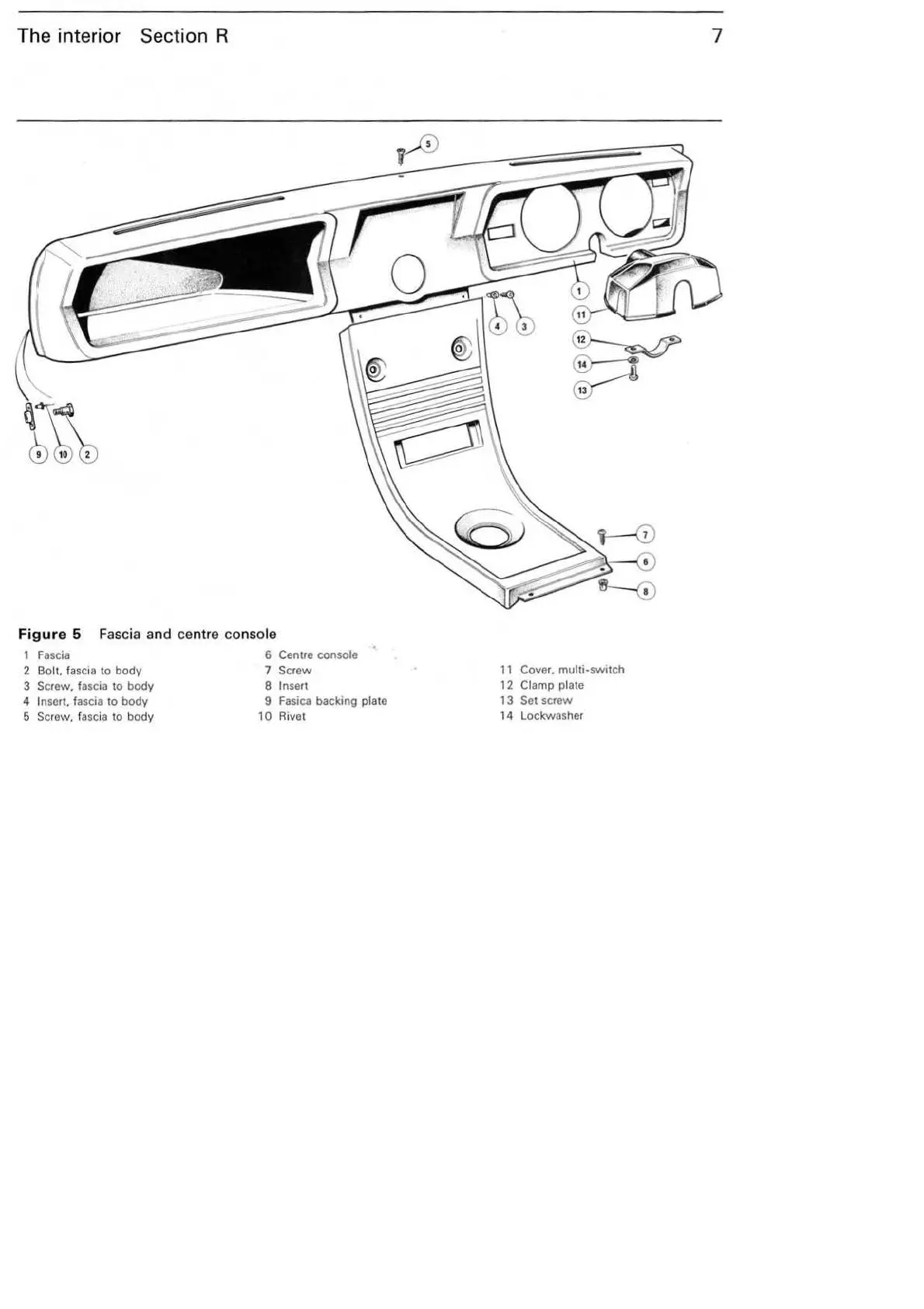

Figure 5 Fa scia and centre con so le
1 Fascia 6
Centre console
2 Bolt. f ascsa to body
7 Screw
11 Cover. multi-swstch
3
Screw. fascia to body 8 Insert
12 Clamp plate
4 Insert fascia to body 9
Fasica backing plato
13 Set screw
5
Screw, fascia to body 10 Rivet
14 Lockwasher
