Assembling the Unit
6

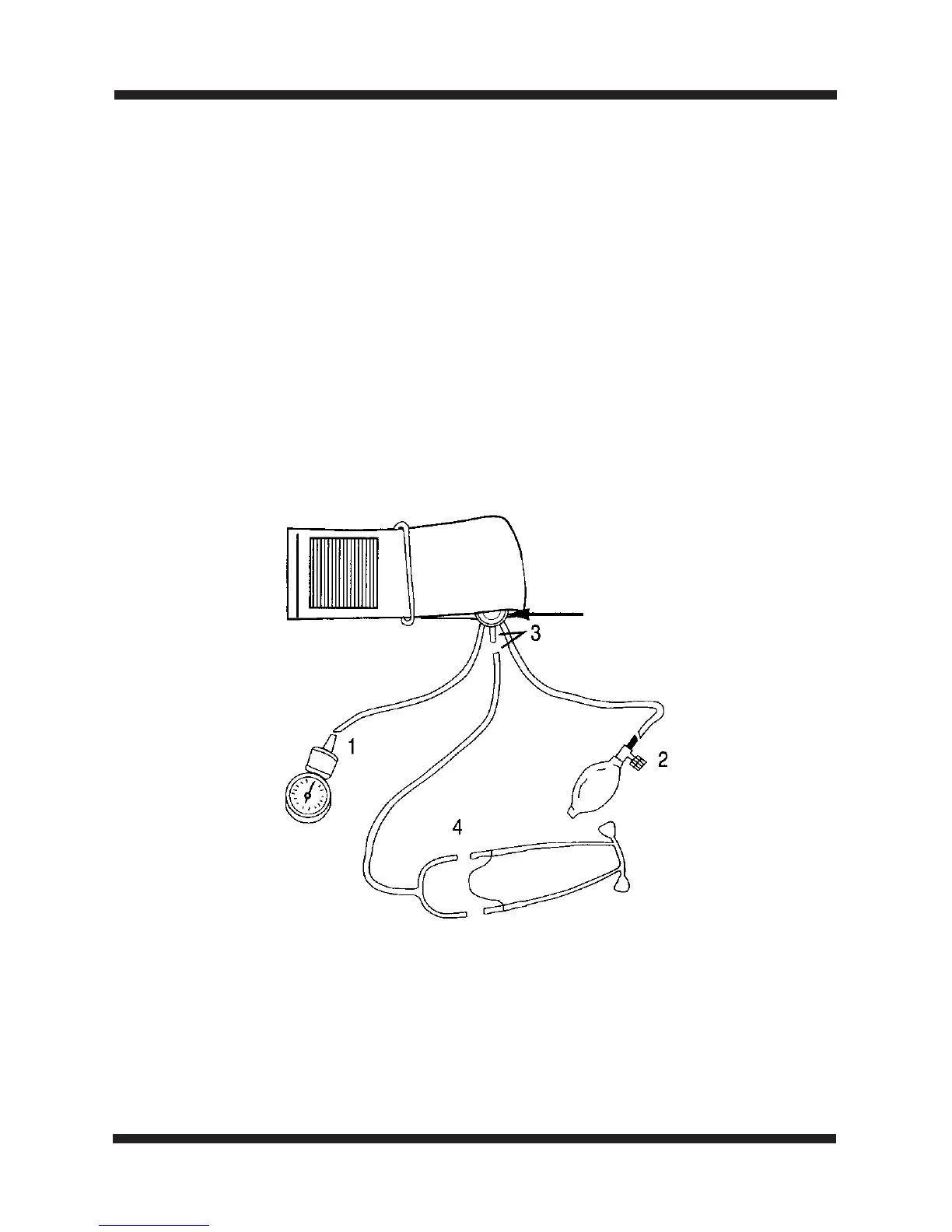

Lay out the parts as pictured on the next page. The cuff
should already be folded. If the cuff is not pre-folded, lay the
cuff flat in front of you and fold the cuff correctly, the hook and
pile material faces the outside of the cuff loop.
1. Attach the gauge to the tubing on the left.
2. Attach the inflation bulb to the tubing on the right.
3. Attach the single end of the Y-tubing to the stethoscope
chest piece.
4. Attach the double end of the Y-tubing to the binaural.
