ReliOn 7100REL - Error Handling and Troubleshooting; Error Indicators Explained

Remove the arm cuff.
Read “Taking a Measurement”.
Take another measurement.
Remove the arm cuff.
Read “Taking a Measurement”.
Take another measurement
without inflating above
299 mmHg.
Take another measurement and
remain still until the
measurement is complete.
Monitor could not
detect pulse wave.
Air plug is not
connected.
20

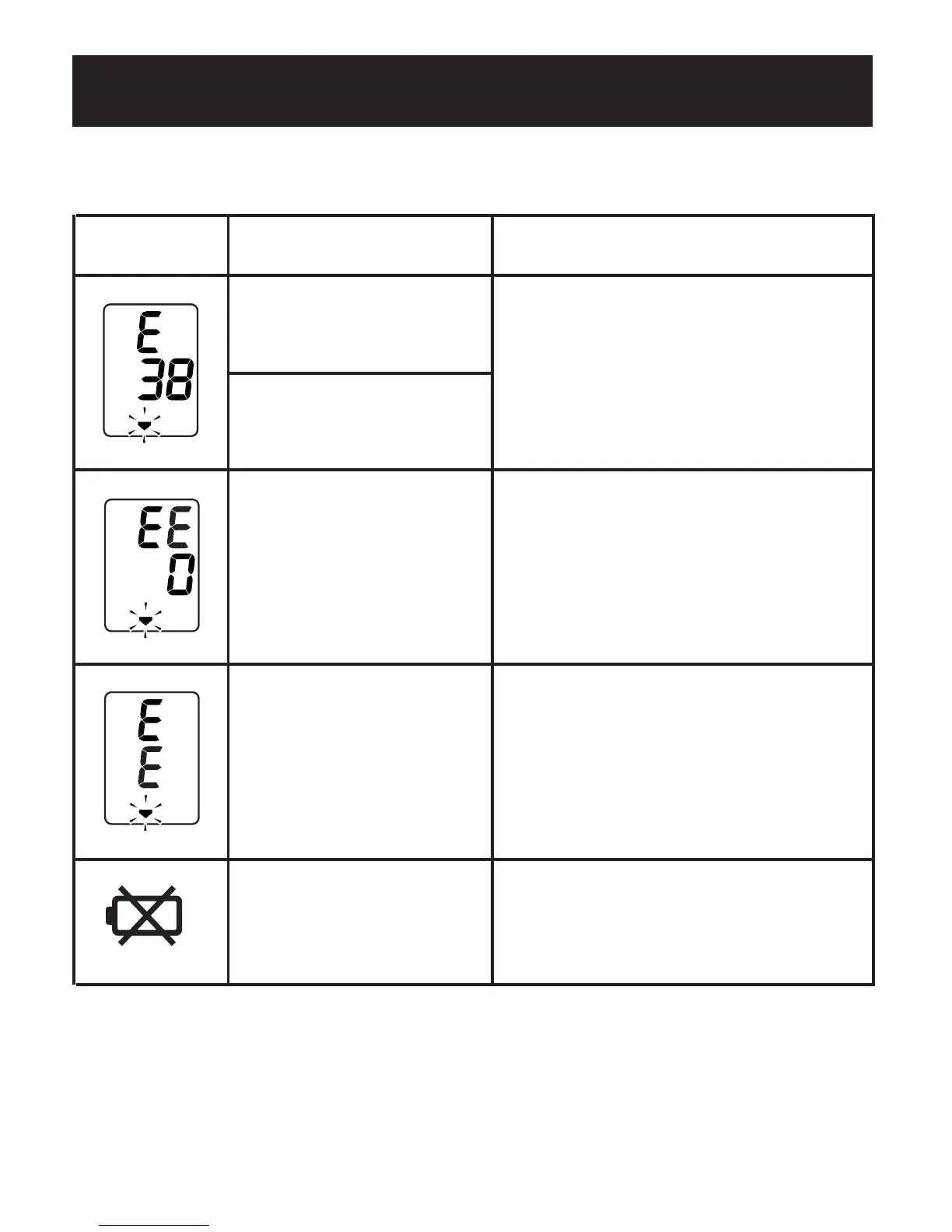

ERROR INDICATORS AND TROUBLESHOOTING TIPS
SYMBOL CAUSE CORRECTION
Cuff under-inflated.
Cuff not applied
correctly.
Cuff over-inflated
Batteries are worn
Replace the four batteries. Refer
to “Battery Installation.”
ERROR INDICATORS
