Reloop TOUCH Service Manual

DISASSEMBLY PROCEDURES

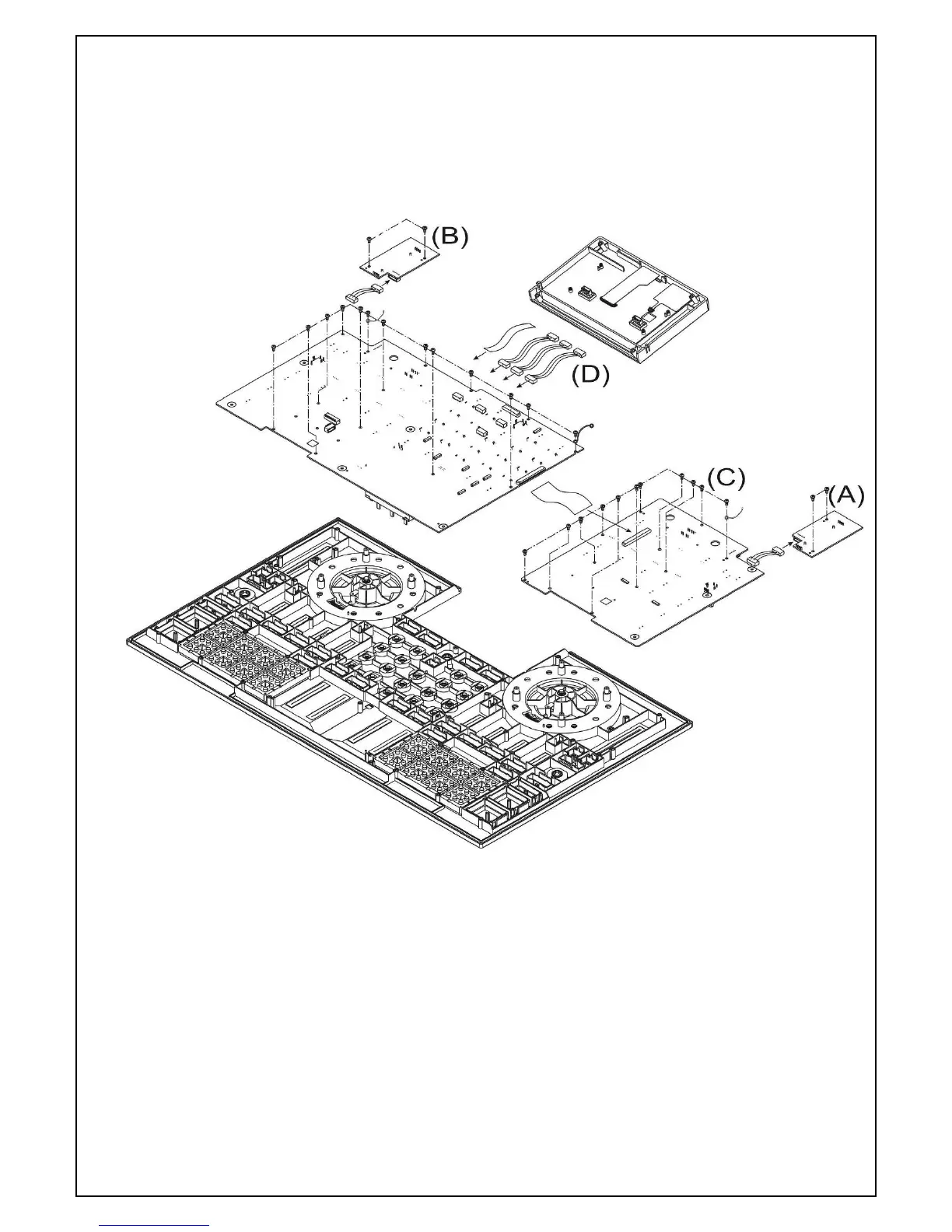

2. REMOVAL OF PITCH PCB AND CONTROL PCB AND TFT 7.0" ASSEMBLY. (Fig.2)
(A) REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF PITCH(L) PCB ASSEMBLY.
(B) REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF PITCH(R) PCB ASSEMBLY.
(C) REMOVE THE 11 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF CONTROL (L) PCB
ASSEMBLY.
(D) REMOVE THE 13 PCS SCREWS AND 4 PCS CONNECTORS BEFORE REMOVAL OF CONTROL (R) PCB AND
TFT 7.0” ASSEMBLY.
(Fig.2)

Reloop TOUCH Specifications

General

MIDI	24 bit
Platter size	5 \
Product color	Black
Scratcher type	Digital Vinyl System (DVS) scratcher
Platter backlight	Yes
Number of drum pads	16
USB direct playback	-
Built-in optical drive	No
Number of mixer channels	2 channels
Number of scratcher platters	2
Headphone outputs	1
Power supply type	DC
Display type	LED
Display diagonal	7 \

Weight and Dimensions

Depth	377 mm
Width	594 mm
Height	43 mm
Weight	3700 g
