Reloop TOUCH - Page 5

DISASSEMBLY PROCEDURES
3. REMOVAL OF MAIN PCB AND HEADPHONE PCB AND MIC PCB ASSEMBLY. (Fig.3)
(A) REMOVE THE 4 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF MAIN PCB ASSEMBLY.
(B) REMOVE THE 3 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF MIC PCB ASSEMBLY.
(C) REMOVE THE 3 PCS SCREWS BEFORE REMOVAL OF HEADPHONE PCB ASSEMBLY.

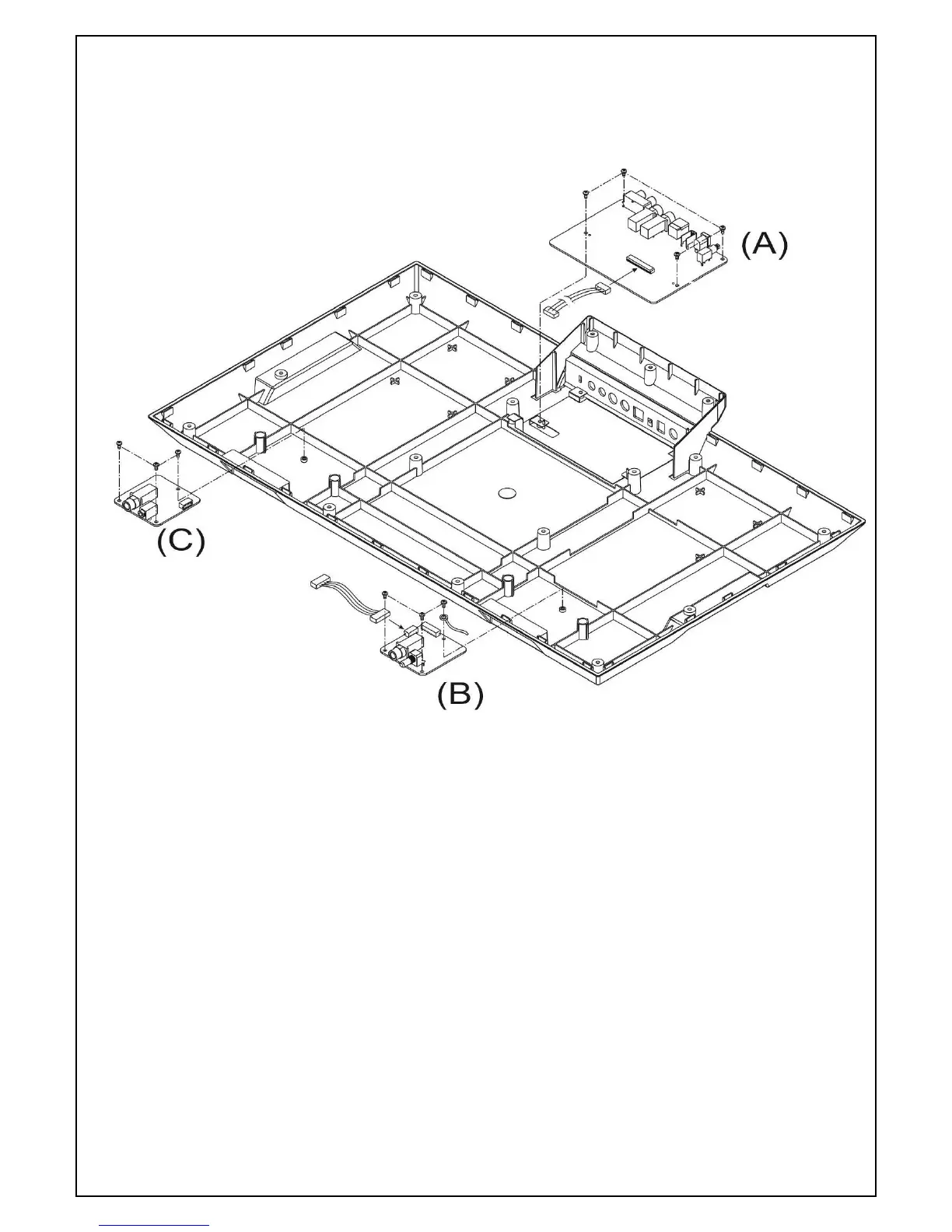

(Fig.3)
