Contact sensor
Contact sensors can be mounted on the pipes, to
measure the heating-circuit temperatures, for
example.
n The contact sensor is fastened to a pipe with
the trapezoidal brackets and retaining strap
provided.
n Clean the mounting point on the pipe. Subse-
quently a thermal compound (A) is applied and
the sensor is fixed in position.

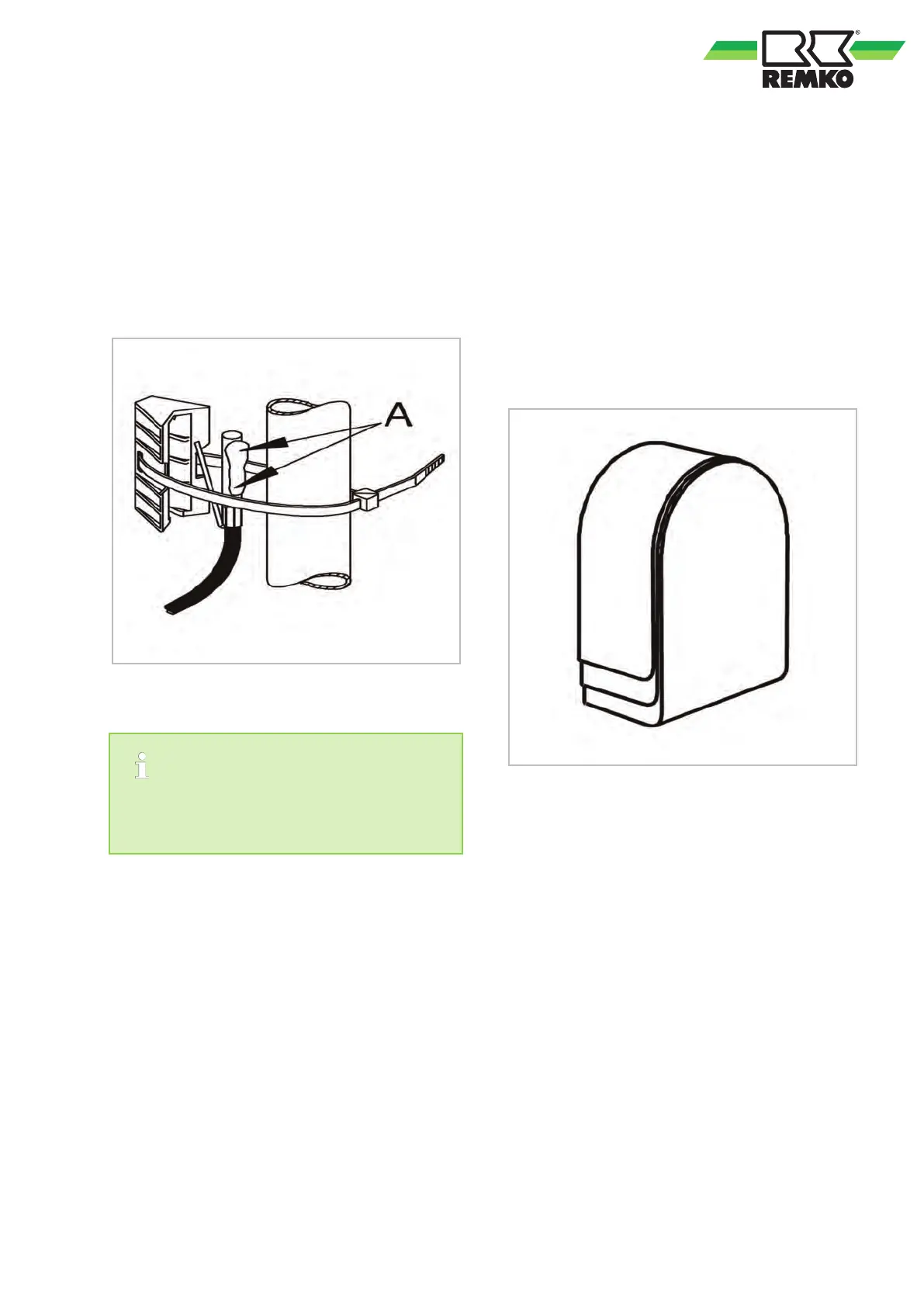

Fig. 11: Fixation of the contact sensor
If the sensor cables are too short, they can be
extended up to a maximum of 100m with wire
having a cross-section of 1.5 mm².
External sensor
The connection of an outdoor sensor is always
required for the heat pump manager
.
n Mount the outdoor sensor pointing skyward, in
a north-easterly direction, about 2.5 metres
above the ground. It may not be subjected to
direct sunlight and is to be protected against
excessive wind. Installation above windows or
air ducts is to be avoided.
n In order to carry out the installation, remove the
cover and secure the sensor with the screws
provided.
n A cable with wire cross-sections of 0.5 mm
2
is
recommended for connecting the sensor
.
Fig. 12: External sensor
15
