Remote Control RCEL Series User Manual

- 2 -
www.rotork.com www.remotecontrol.se

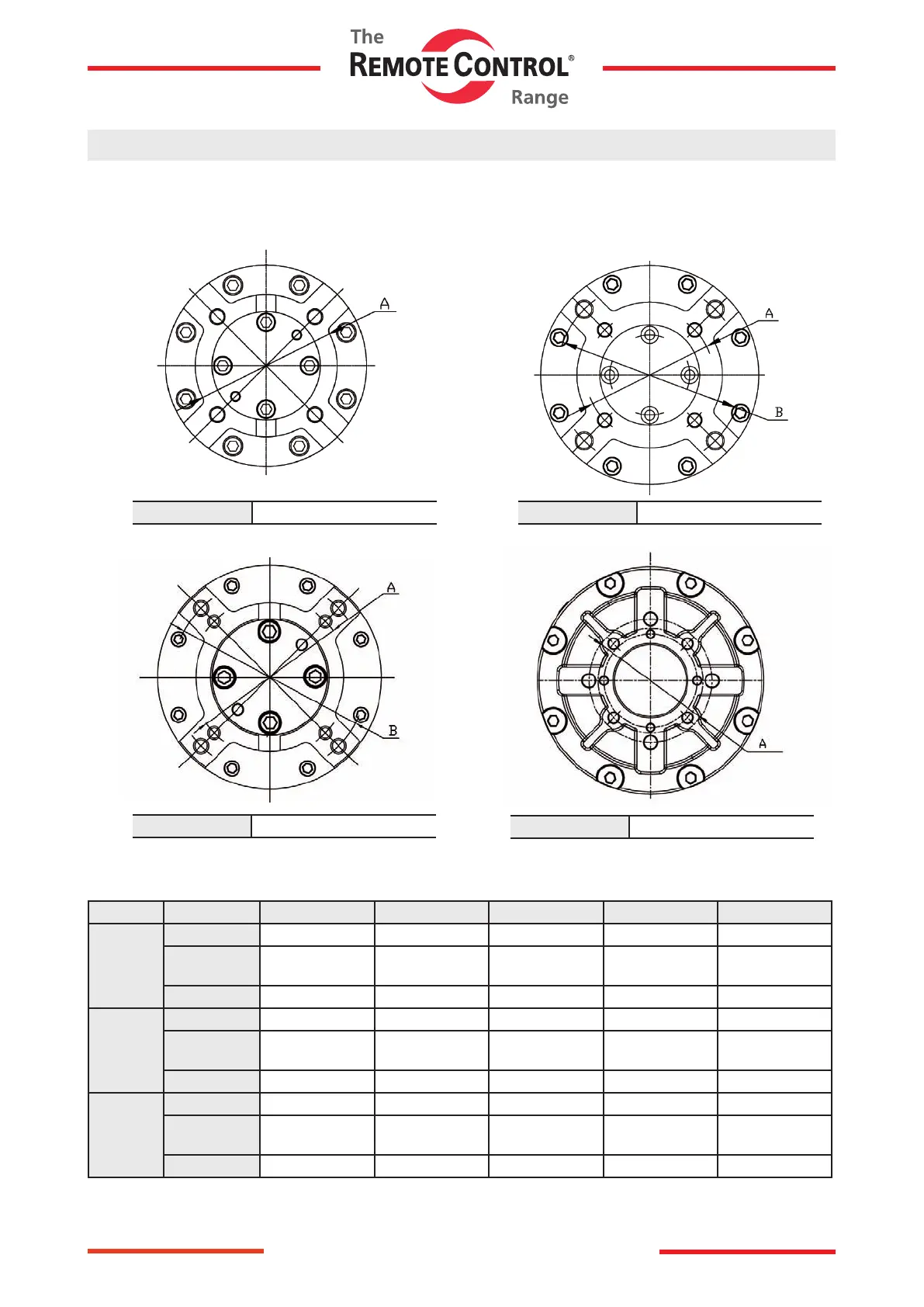

Actuator Mounting Flange
The (NA Series) mounting ange is manufactured to ISO5211 standards. If the actuator does not mount directly to the
valve, then a mounting kit will need to be manufactured.
Model RCEL006, RCEL009
Model RCEL150 ~ RCEL250
Model RCEL060 ~ RCEL100
Model RCEL015 ~ RCEL050
Size RCEL006-009 RCEL015-019 RCEL028-050 RCEL060-100 RCEL150-250
A
B.C.D Ø 70 Ø 70 Ø 102 Ø 125 Ø 102
TAP
4-M8
DP12
4-M8
DP12
4-M10
DP15
4-M12
DP22
4-M10
DP15
ISO 5211 F07 F07 F10 F12 F10
B
B.C.D - Ø 102 Ø 125 Ø 140 -
TAP
- 4-M10
DP15
4-M12
DP22
4-M16
DP22
-
ISO 5211 - F10 F12 F14 -
Option
B.C.D Ø 82 Ø 82 - Ø 102 Ø 140
TAP
4-M8
DP12
4-M8
DP12
- 4-M10
DP15
4-M16
DP22
ISO 5211 - - - F10 F10
