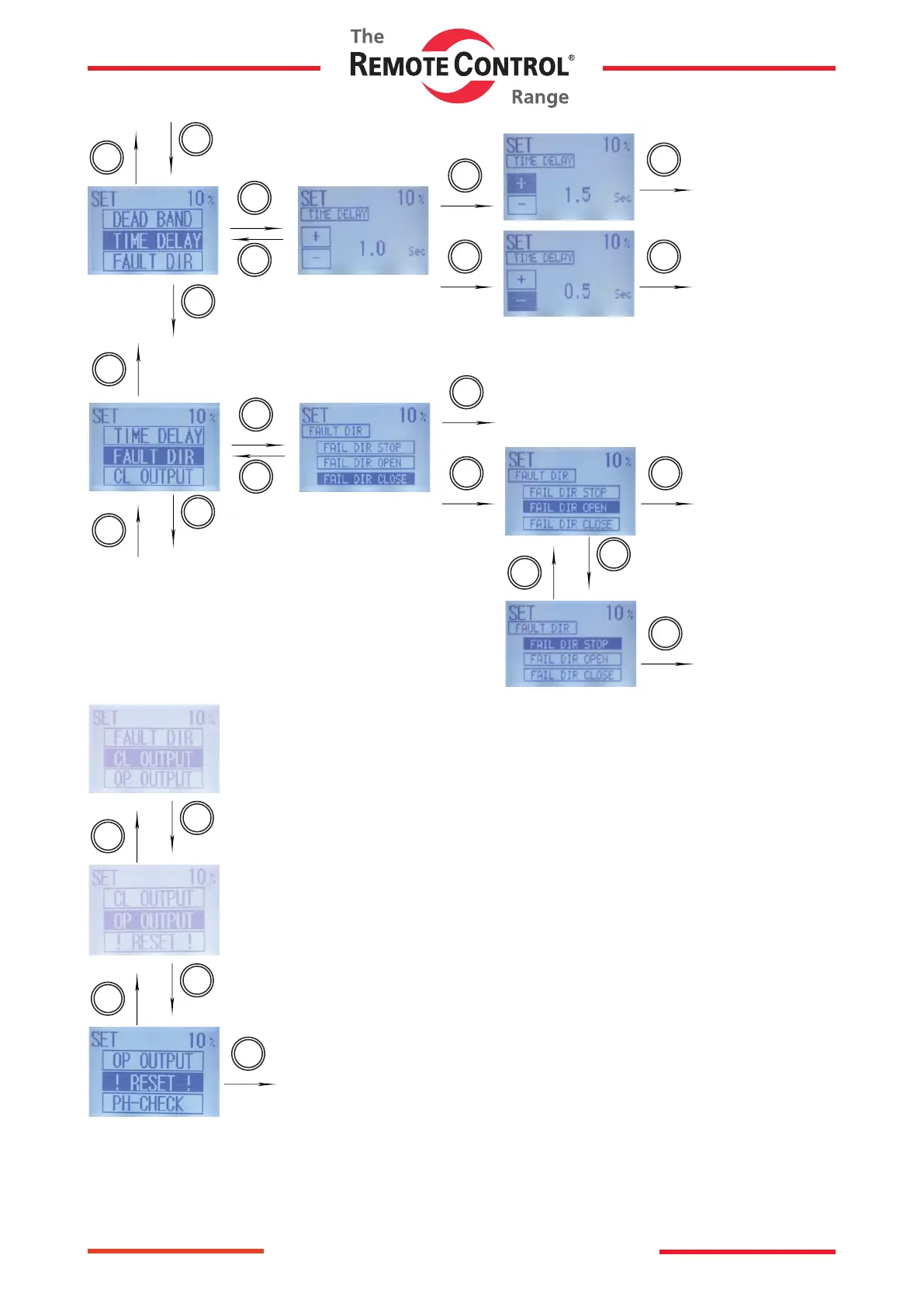

Remote Control RCEL Series - Time Delay and Fail-Safe Configuration; Time Delay Settings; Fail Direction Settings

- 9 -
www.rotork.com www.remotecontrol.se
STOP
1 sec
STOP
2 sec
CLOSE
1 sec
OPEN
1 sec
OPEN
1 sec
CLOSE
1 sec
STOP
2 sec
“TIME DELAY”
0,5 sec Setting
STOP
2 sec
“TIME DELAY”
1,5 sec Setting
The valve is adjustment between 0,5 sec and 5 sec
in 0,5 sec increment. The original set valve is 1.0 sec
when shipped.
STOP
1 sec
STOP
2 sec
STOP
2 sec
CLOSE
1 sec
STOP
2 sec
“FAIL CLOSE” Setting
“FAIL OPEN” Setting
CLOSE
1 sec
OPEN
1 sec
STOP
2 sec
“FAIL STOP” Setting
CLOSE
1 sec
OPEN
1 sec
CLOSE
1 sec
OPEN
1 sec
CLOSE
1 sec
OPEN
1 sec
CLOSE
1 sec
OPEN
1 sec
STOP
2 sec
Program Reset
VOID
VOID
