ENGINE AND PERIPHERALS
Engine and transmission assembly
10
10-8

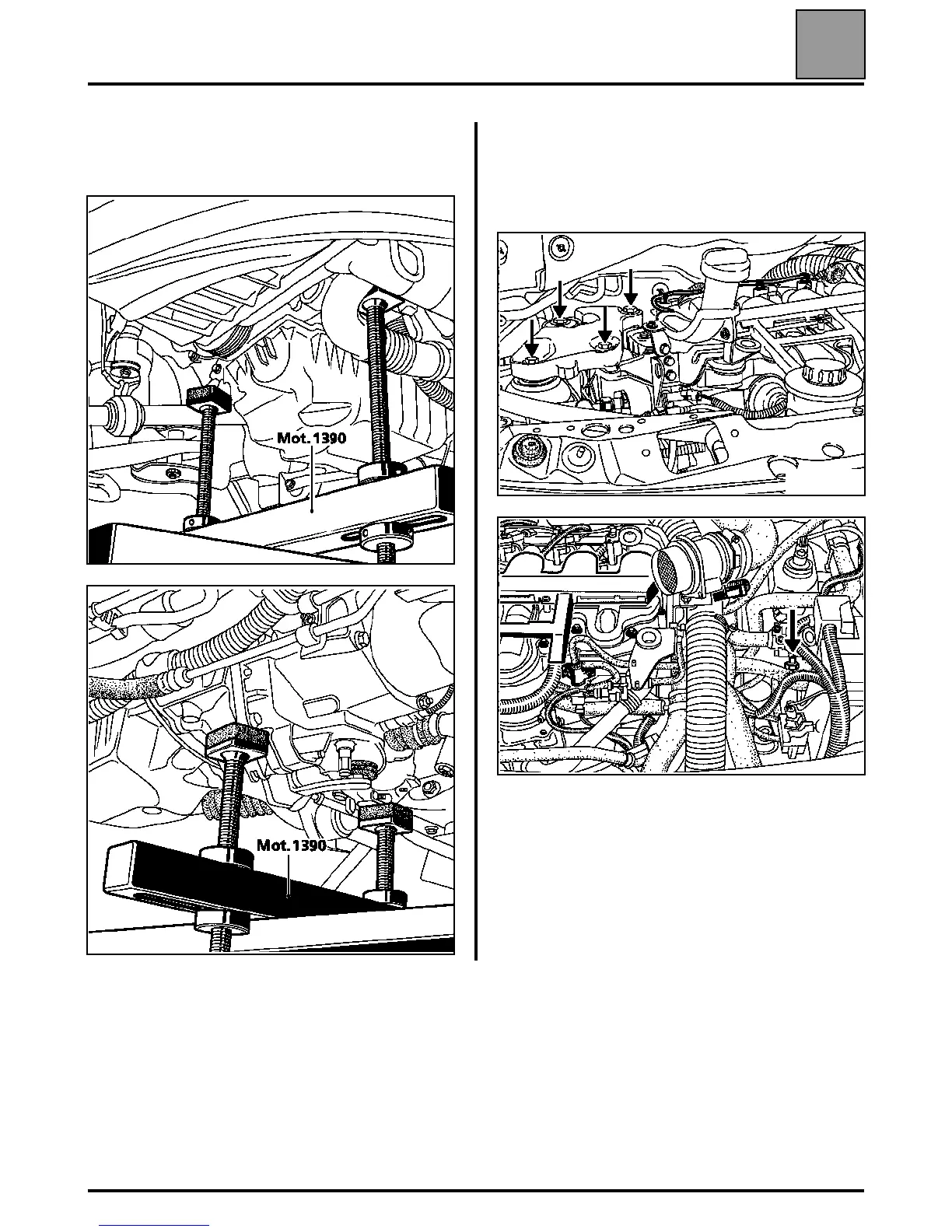

Prepare the universal mounting tool Mot. 1390 and
position it beneath the engine and transmission
assembly (two people).
Remove:
– the right-hand suspended mounting cover,
– the travel limiter linkage located just behind this
cover,
– the left-hand suspension axis mounting nut.
Gently raise the vehicle in relation to the engine (two-
person operation).
IMPORTANT: when lifting, hold on to the gearbox
control cables to prevent them from becoming trapped
and being damaged.
14935M1
