COOLING SYSTEM
Diagram
19
19-2
Diagram

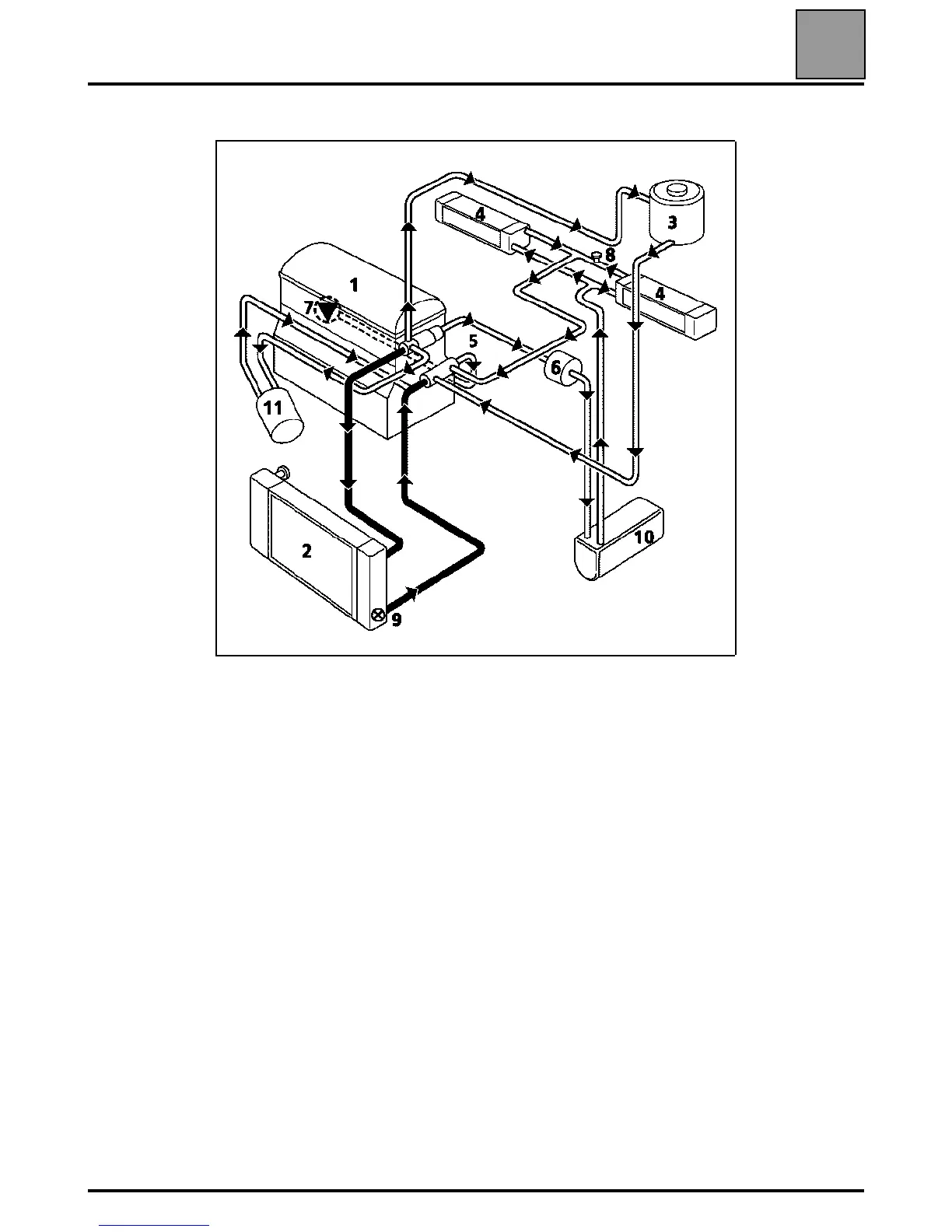

SPECIFIC COOLANT CIRCUIT
1 Engine
2 Radiator
3 "Hot" tank with degassing after thermostat
4 Heater matrix
5 Thermostat mounting
6 Thermoplunger mounting
7 Coolant pump
8 Bleed screw
9Temperature switch
10 Heater (if fitted)
11 Oil cooler + "eco" oil filter
The expansion bottle valve rating is 1.2 bar (colour: brown).
