TOP AND FRONT OF ENGINE
Timing belt
11
11 - 3

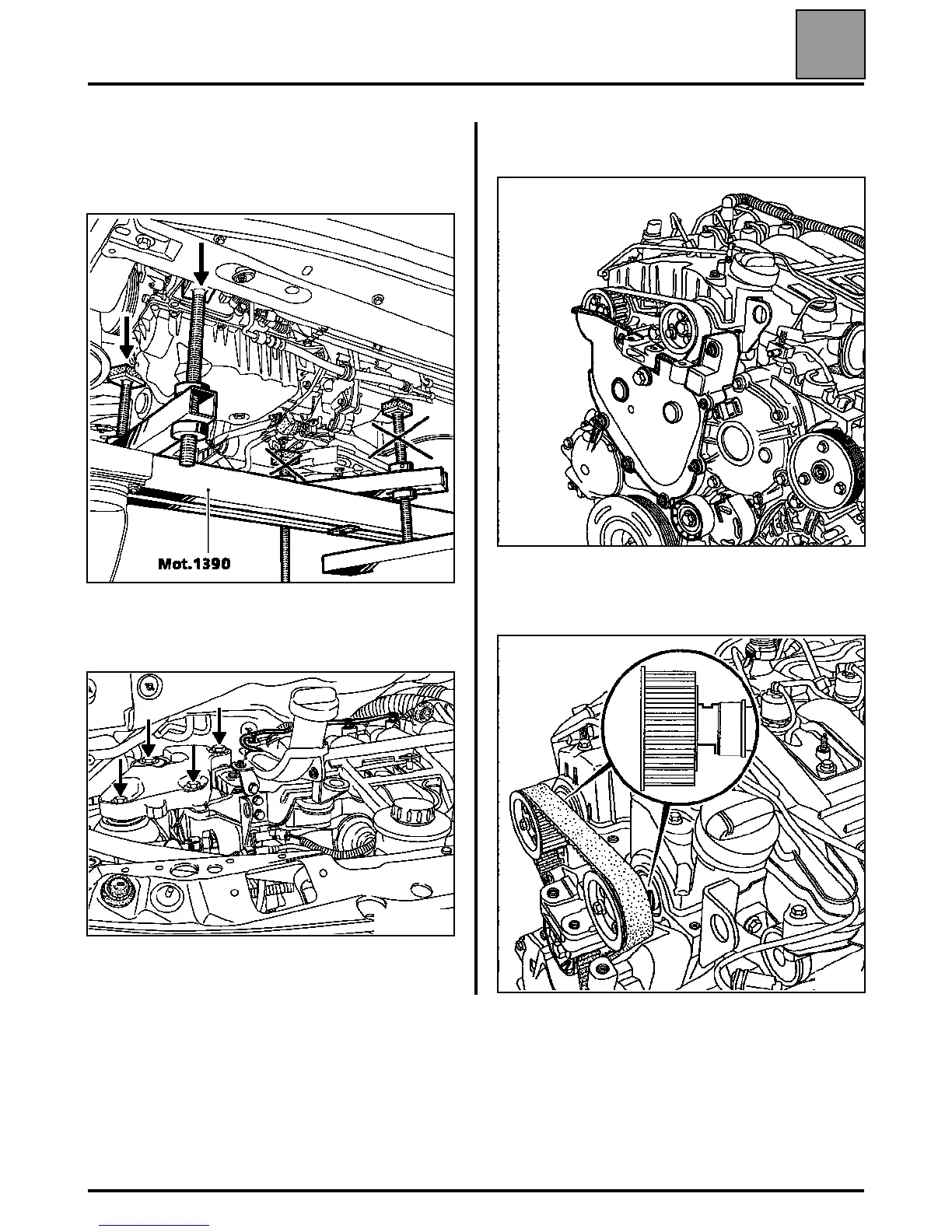

Insert the mounting tool Mot. 1390 under the engine
and transmission assembly, positioning the right-hand
pads only underneath the engine. Lower the two
unused left-hand pads.
Remove the right-hand suspended engine mounting
cover.
Remove the timing belt cover and the lower plastic
cover.
Check the position of the camshaft grooves as shown
below.
