TOP AND FRONT OF ENGINE
Timing belt
11
11 - 7

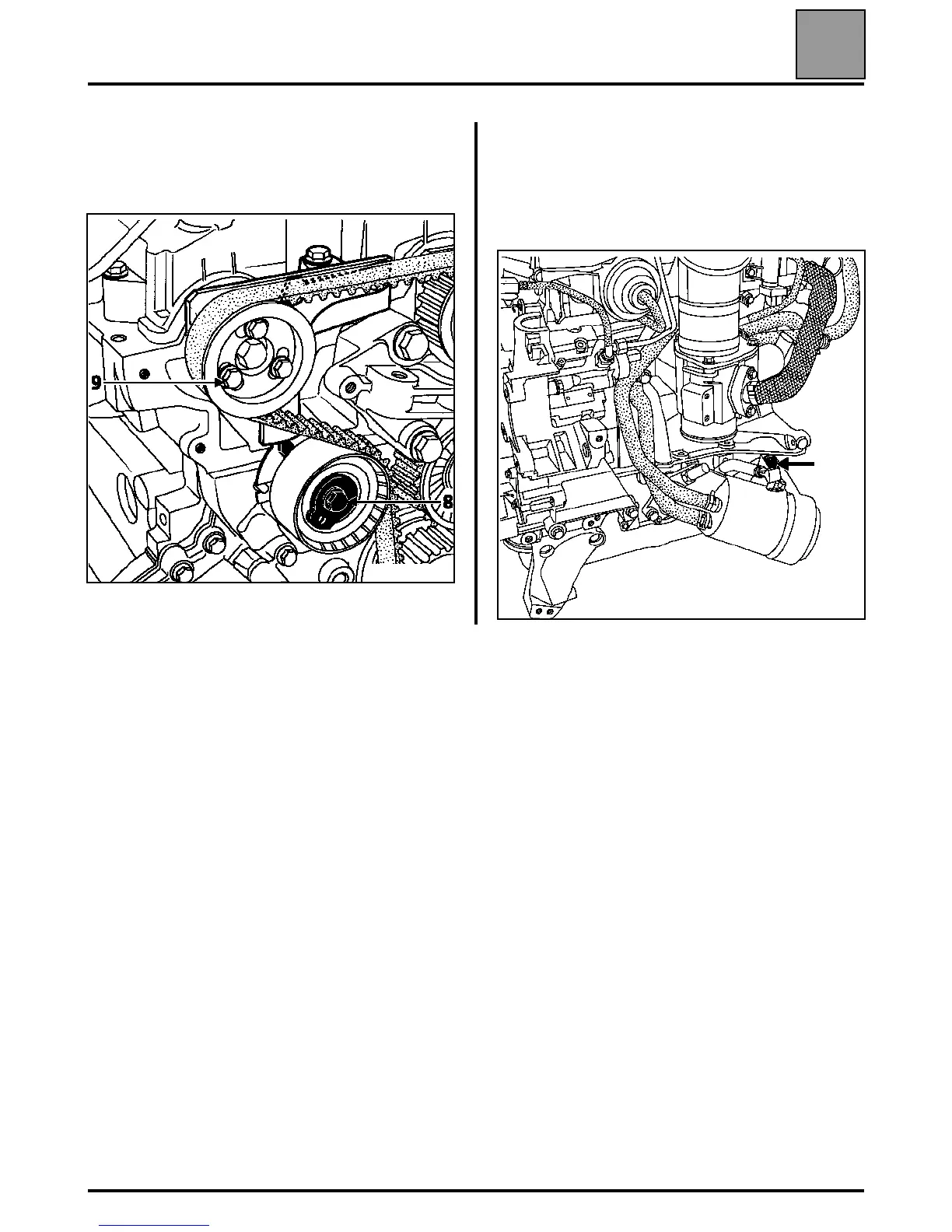

Tighten:
– bolt (8) of the tension wheel to a torque of 2.5 daN.m,
– the camshaft timing sprocket bolts (9) to a torque of
1 daN.m.
Remove the camshaft timing tools Mot. 1534 and
Mot. 1537 and the TDC pin Mot. 1536.
Refit the cap in the TDC pin opening applying
RHODORSEAL 5661 to the thread and by tightening
to a torque of 2.2 daN.m.
Refitting is the reverse of removal.
To refit the right-hand suspended mounting, you must
consult section 19 "Suspended mountings".
