FUEL MIXTURE
Inlet manifold
12
12-9
Remove the manifold mounting bolts and then remove the manifold.
REFITTING
IMPORTANT: note the rubber seal on the inlet tubes;
if necessary, seal this in its casing with some grease.

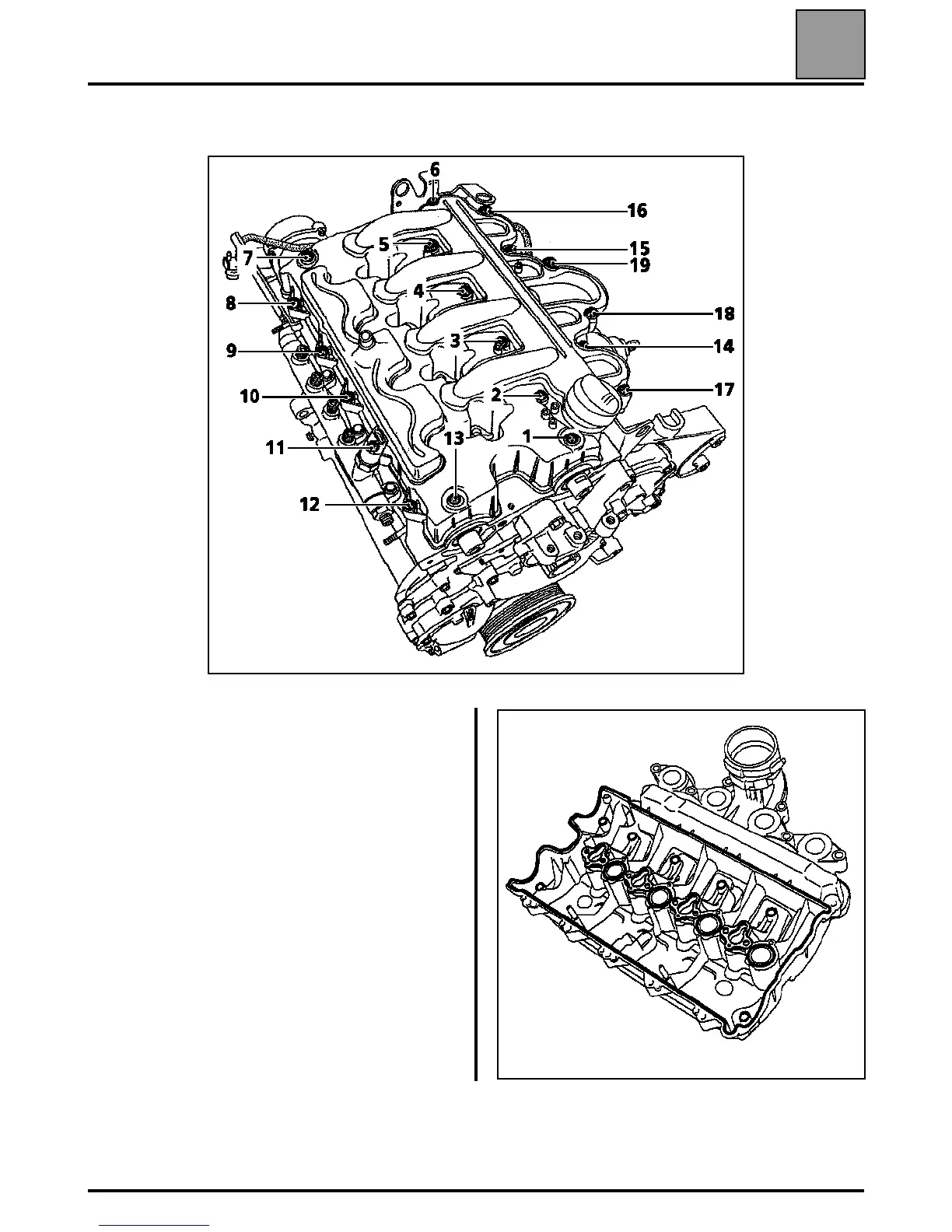

Bring all the cylinder head cover bolts into contact.
Tighten to 1.2 daN.m observing the tightening order
for the cylinder head cover bolts.
It is essential that you observe the order of tightening
and the torques recommended for refitting the
suspended mounting and the high pressure injection
section (see sections 13 and 19).
To refit, proceed in the reverse order to removal.
17934R
