STARTING - CHARGING
Starter
16
16-5

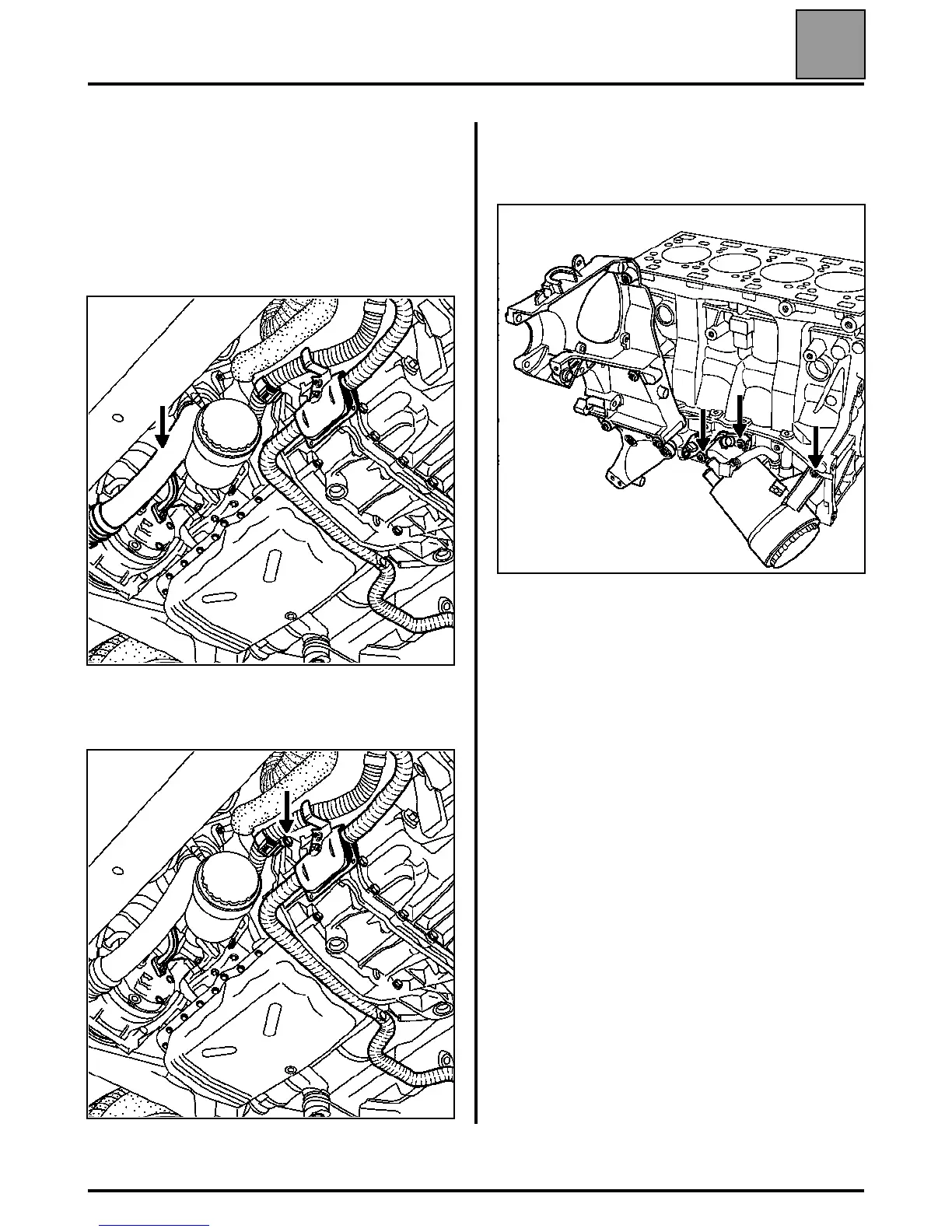

REMOVAL
Put the vehicle on a 2 post lift.
Disconnect the battery.
Remove:
– the lower engine cover,
– the air exchanger/throttle body unit pipe after
disconnecting it,
– the dipstick,
– the three starter mounting bolts,
– the oil filter unit bracket.
Release the filter bracket to the side, without
disconnecting it.
Disconnect the starter electrical connections.
Remove:
– the dipstick well,
– the starter motor.
REFITTING
To refit, proceed in the reverse order to removal.
17524M1
16028M
