FUSES (continued)

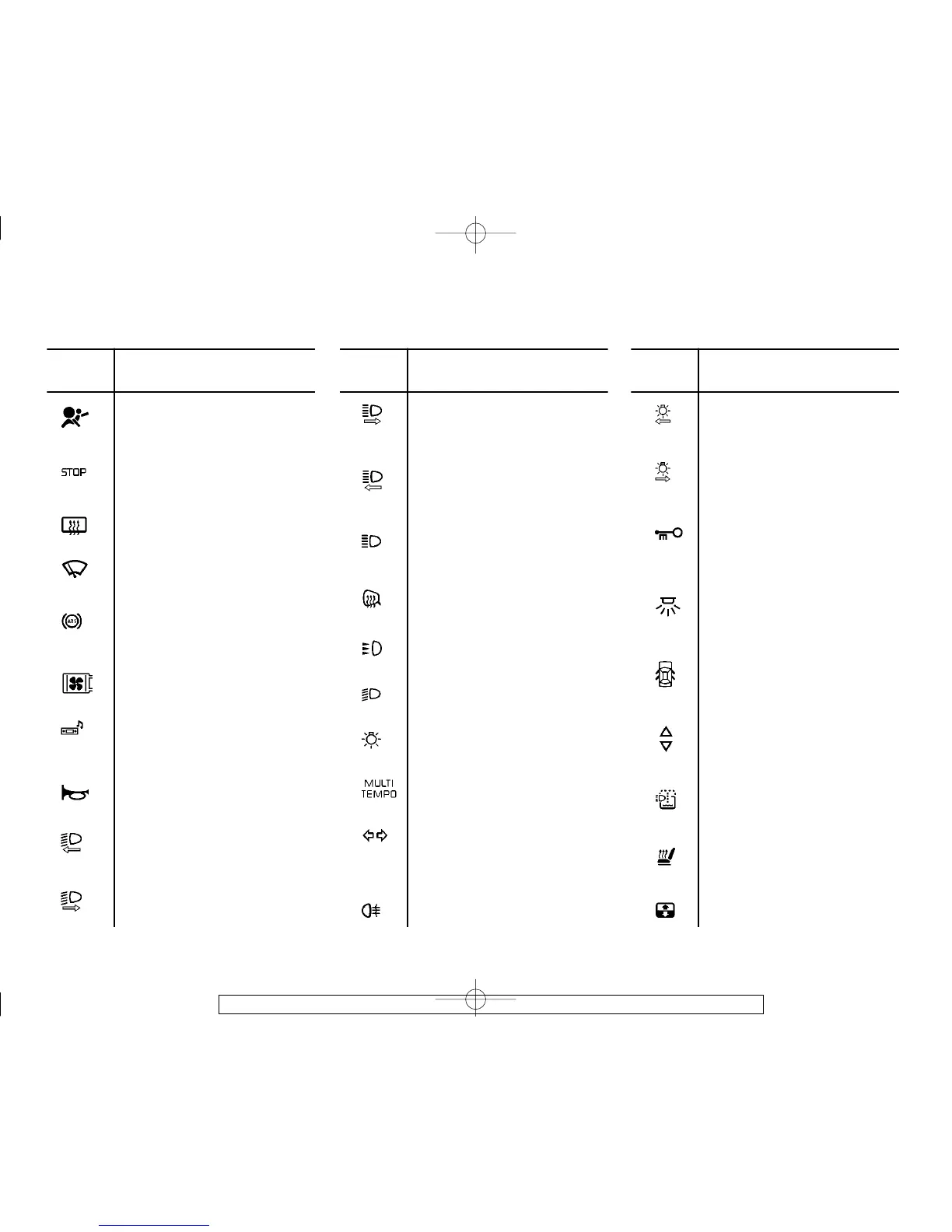

Allocation of fuses
(depending on the car equipment level)
Symbol Allocation
Air bag/
Delay timing unit
Stop lights
Heated rear screen
Windscreen wiper
Anti-lock braking
(ABS)
Engine cooling fan
Radio/
Cigarette lighter/Clock
Horn
Left-hand dipped beam
headlight
Right-hand dipped beam
headlight
Symbol Allocation
Right-hand main beam
headlight
Left-hand main beam
headlight
Dual headlight (dipped
and main beam)
Not used
Front fog lights
Not used
Not used
Delay timer unit
Direction
indicators/hazard warning
lights
Rear fog light
Symbol Allocation
Left-hand side light
Right-hand side light
Engine immobiliser
Interior and luggage
compartment lights /radio
Central door locking
Electric windows
Headlight washers
Not used
Electric sunroof
