NU747_1_G5-FRA.qxd 12/01/05 14:50 Page 5.06
BC85 - NU747-1
C:\Documentum\Checkout\NU747_1_T5-ENG.win 3/3/2005 11:57
- page 6
5.06

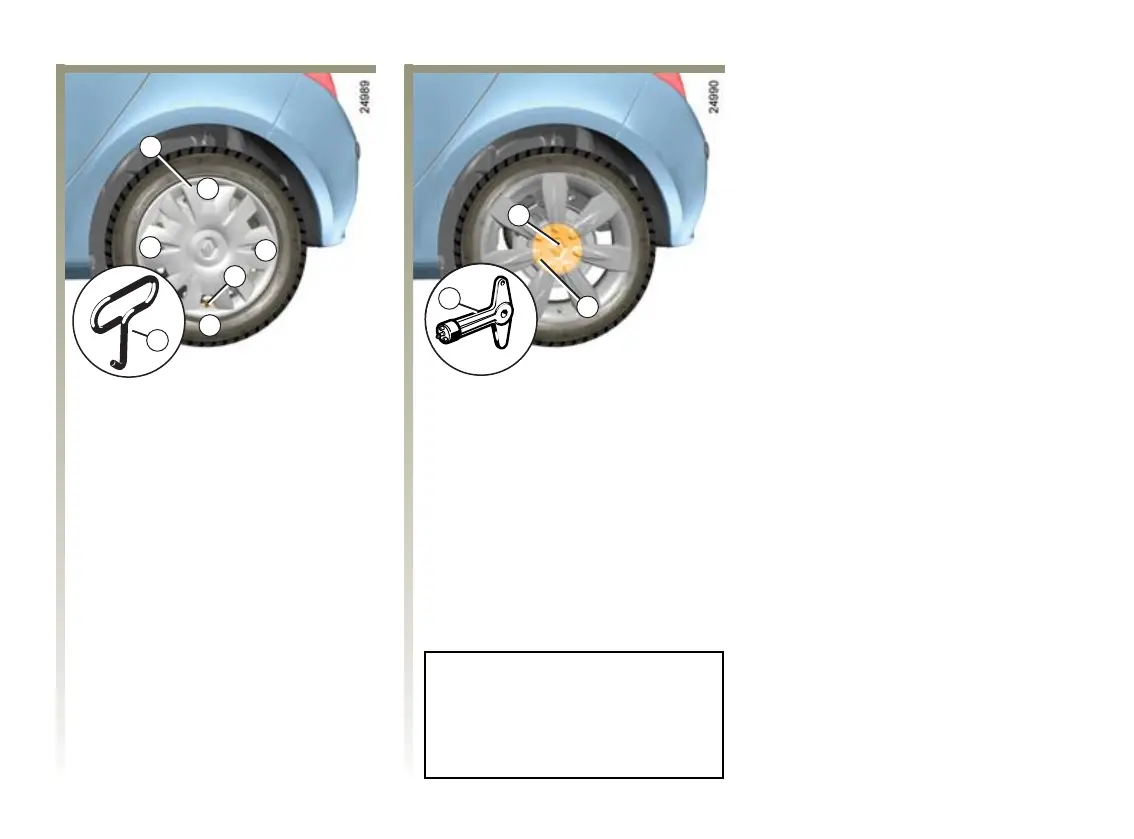

HUBCAP - WHEEL
Hubcap (example: hubcap 1)
Remove the wheel trim using
hubcap spanner 3 (from the tool kit)
by inserting the hook in the recess
near the valve 2.
To refit it, line it up with valve 3.
Push in the retaining hooks
beginning with the valve side A
then B and C andfinishbytheside
opposite the valve D.
Central wheel hubcap
(example: hubcap 4)
Remove the hubcap using the
hubcap spanner 6 (located in the
tool kit) by inserting the spanner 6
into the recess 5.
To refit the hubcap align it with
recess 5 and tighten it using tool 6.
We would advise you to note the
number engraved on the key so
that you can replace it if it is lost.
