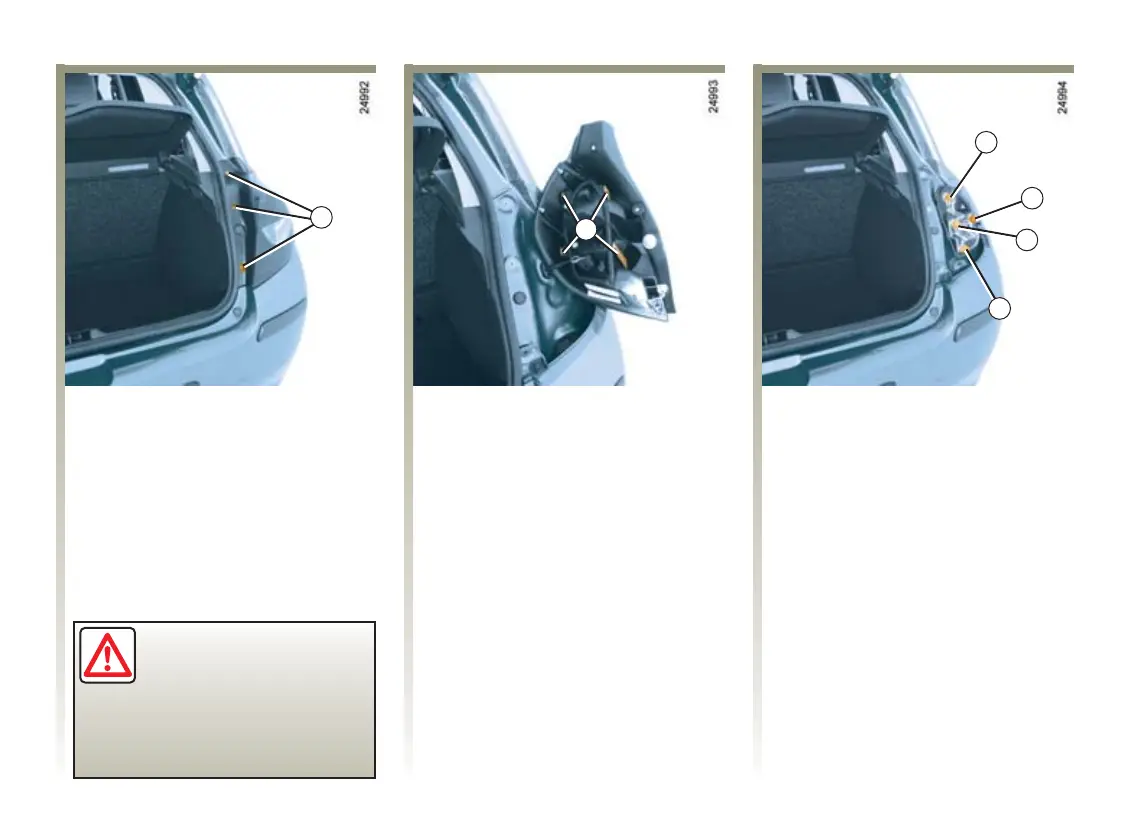

REAR LIGHTS: replacing bulbs
After opening the tailgate, remove
bolts 1.
The bulbs are under
pressure and can break
when replaced.
Risk of injury
Release the rear light assembly from
outside the vehicle by pulling it
towards the rear.
Unclip the bulb holder 2 to access
the bulbs.
4 Side lights and stop lights
P21/5 W bulb.
5 Direction indicator light
PY21 bulb.
6 Reversing light
P21 W bulb.
7 Rear fog light
P21 W bulb.
Note: both lens units are fitted
with a bulb, but only the bulb on
the driver's side works.
