FITTINGS FOR THE RADIO

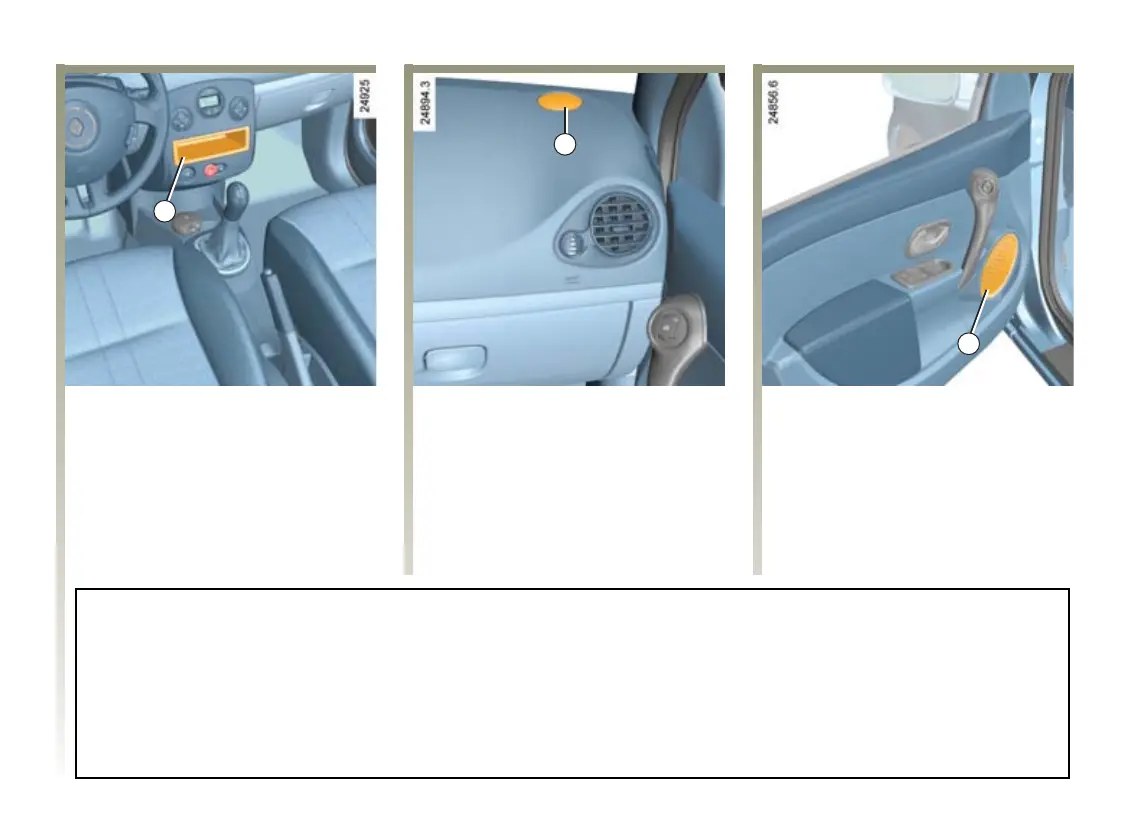

Radio compartment 1
Unclip the blanking piece. The
aerial, + and – supply and speaker
wire connections are located behind
it.
Tweeter speakers
Using a flat head screwdriver type
tool, unclip grille 2 to access the
speaker wires.
Speakers in the doors
Using a flat-head screwdriver type
tool, unclip grille 3 to access the
speaker wires.
Special note on rear doors for 5 door
utility versions: consult your
RENAULT Dealer.
• In all cases, follow the manufacturer's fitting instructions carefully.
• The specifications of the brackets and wires (available at RENAULT accessory outlets) vary depending on the
equipment level of your vehicle and the type of radio.
Contact your RENAULT Dealer to find out the correct reference number.
• Only RENAULT technicians are permitted to carry out work on the vehicle's electrical circuit. Incorrect
connection of the system may result in damage to the electrical installation and/or the units connected to it.
