REAR LIGHTS: replacing the bulbs(2/5)

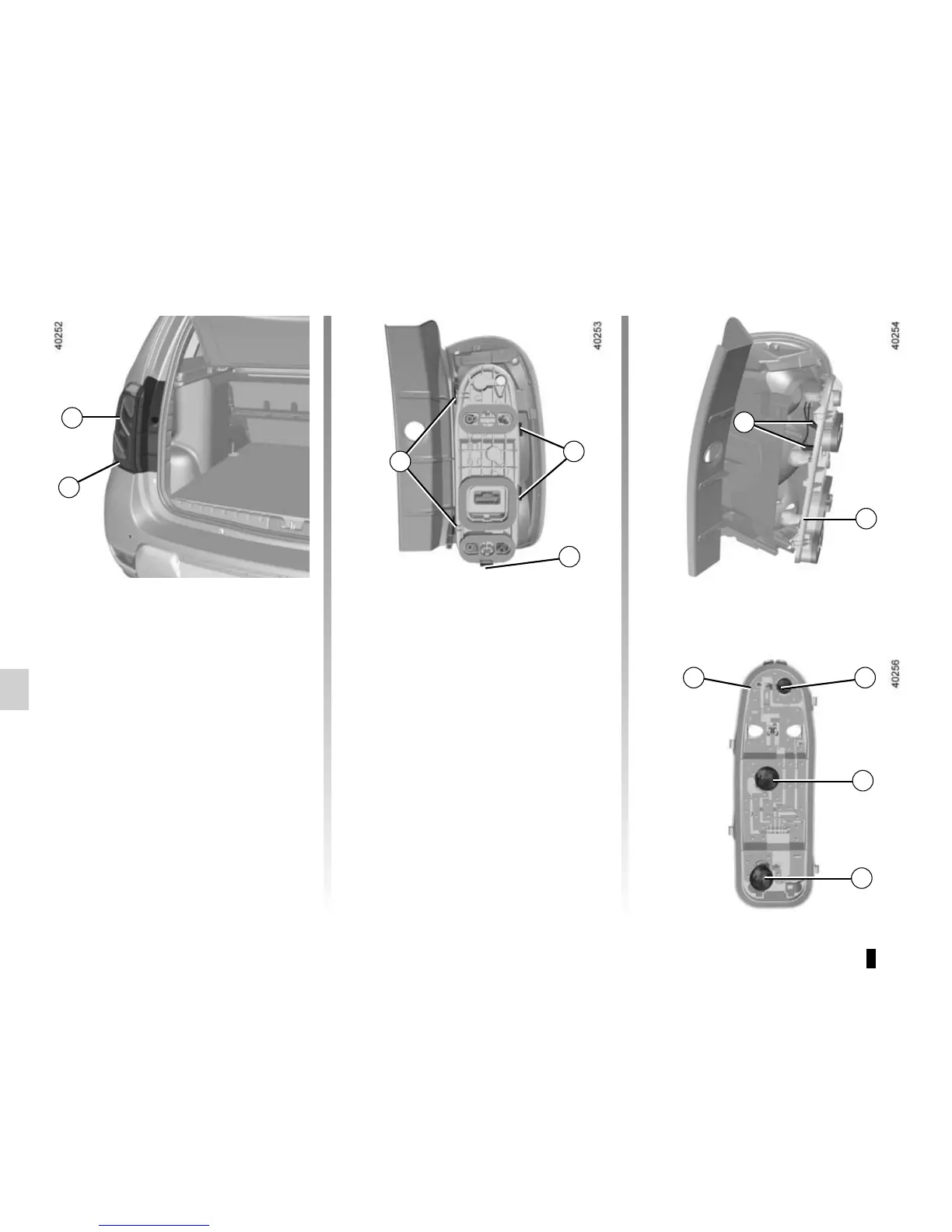

Open the luggage compartment lid and
unscrew the nuts 1, then release the
light unit 8 by pulling it out.
Unlock the clips 10 and release the
connectors 11 to remove the bulb hold-
ers 12.
9 Side light
Consult an approved Dealer.
13 Direction indicator lights
WY 21 W bulb.
14 Brake light
Pear-shaped, bayonet type P 21 W
bulb with two filaments.
8
9
10
15 Reversing light
Pear-shaped, bayonet type bulb P
21 W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
