5.16
FRONT HEADLIGHTS: changing bulbs (3/5)
Direction indicators
Remove cover B, unscrew bulb
holder 2 a quarter of a turn and un-
screw the bulb a quarter of a turn.
Bulb type: PY21W.
Four-door version

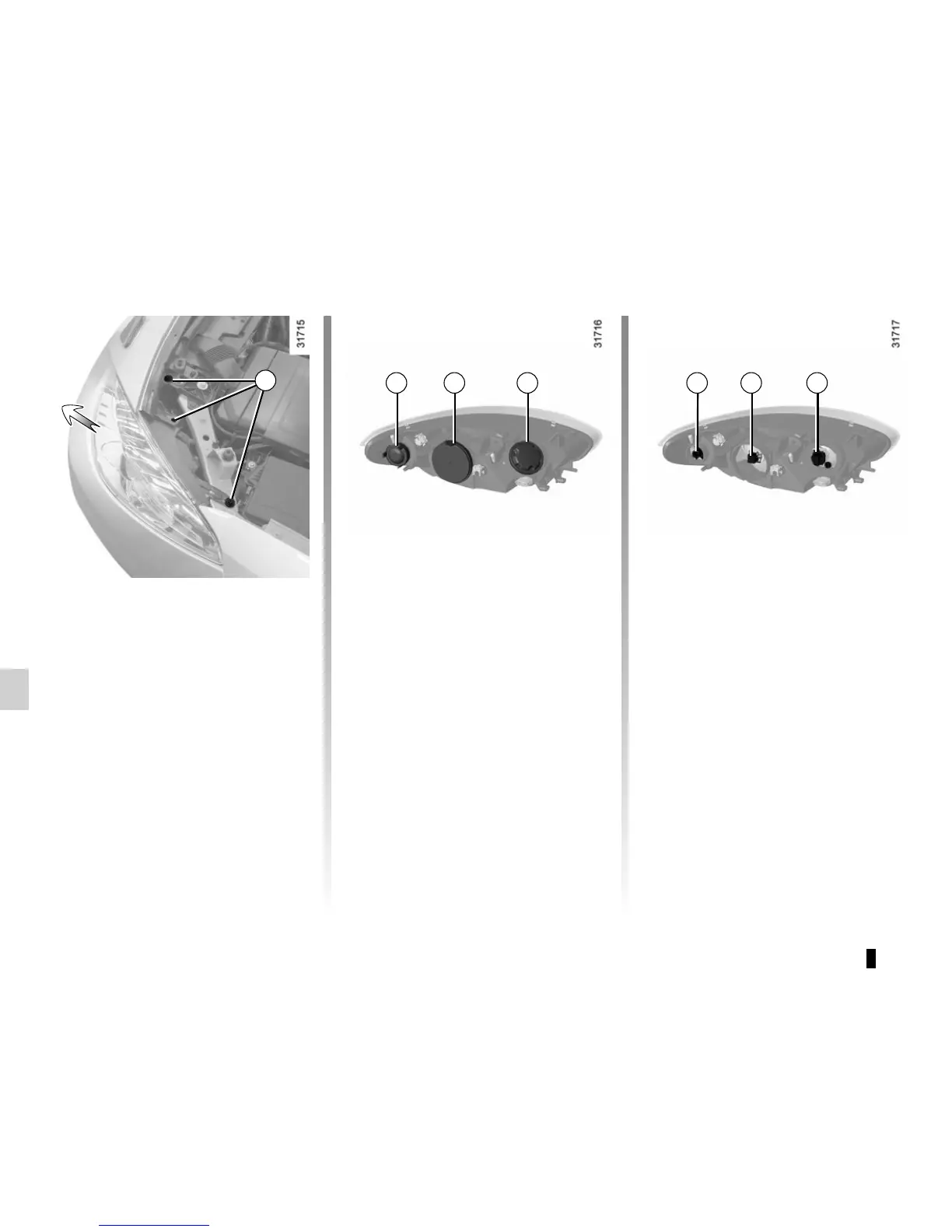

Open the bonnet and unscrew bolts 1
using standard tools. Depending on the
vehicle, use the keys supplied in the
tool box.
Pull the headlight as far as possible in
the direction shown by the arrow.
Note: the headlight cannot be pulled
out completely. Avoid pulling too hard,
as this could damage the connections.
B C D 2 43
1
The bulbs detailed below can be re-
placed. However, we recommend that
these be replaced by an approved
Dealer if this proves difficult.
Obtain an emergency kit containing a
set of spare bulbs and fuses from an
approved Dealer.
