FRONT LIGHTS with halogen bulbs: replacing the bulbs
Main beam / Dipped beam
headlights

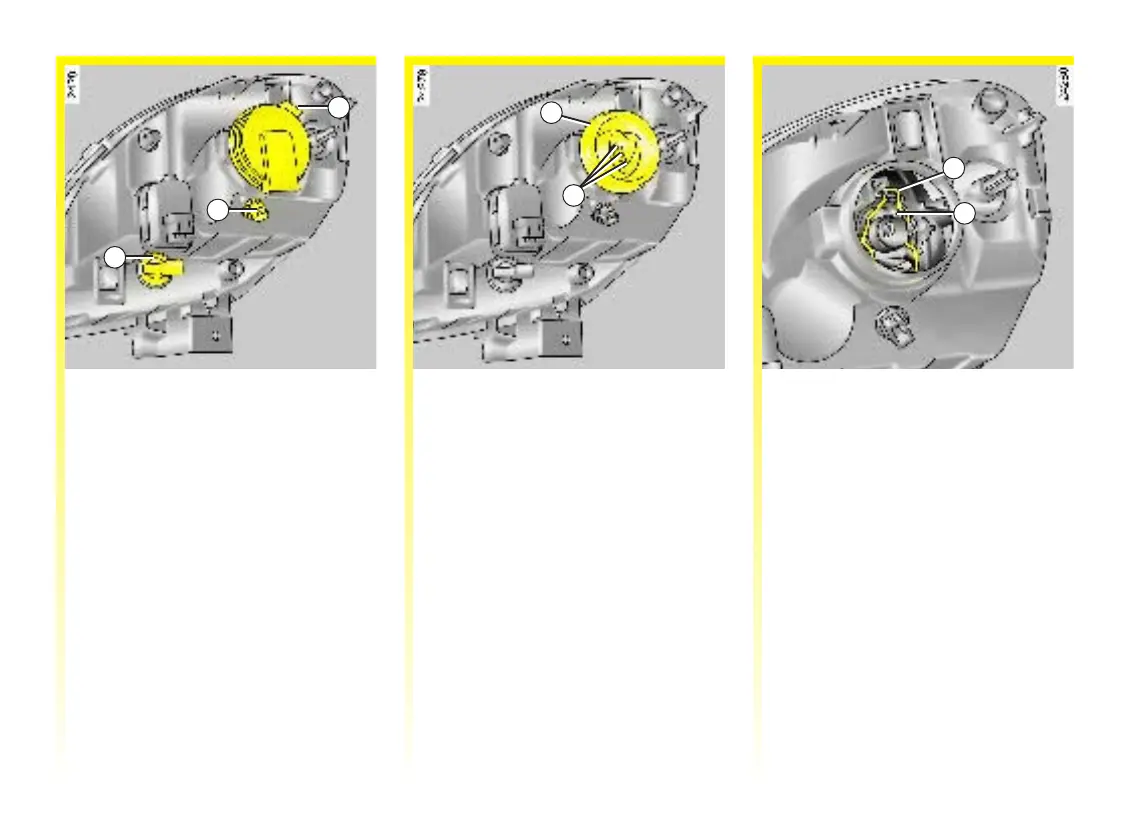

Remove the plastic cover by
pressing tab 1.
Remove the bulb connector.
Remove protective rubber surround 4
then remove it fully from the bulb.
To unclip spring 6: push it down
then towards the right. Remove the
bulb.
Type of bulb: H4 approved by our
Technical Department (see
enclosed).
Do not touch the bulb glass. Hold it
by its base.
Replace the bulb by pointing wider
strip 7 upwards.
Ensure that the rubber protection is
repositioned correctly so that the
three strips 5 can be seen.
Front side lights
Remove bulb connector 2.
Turn the bulb holder one-quarter
turn and take out the bulb.
Type of bulb: W 5 W.
Direction indicator lights
Unclip bulb connector 3.
Turn the bulb holder one-quarter
turn and take out the bulb.
Type of bulb: pear-shaped with
21 W filaments.
