Procedure for tensioning the timing belt
07
07-22
F4P engine

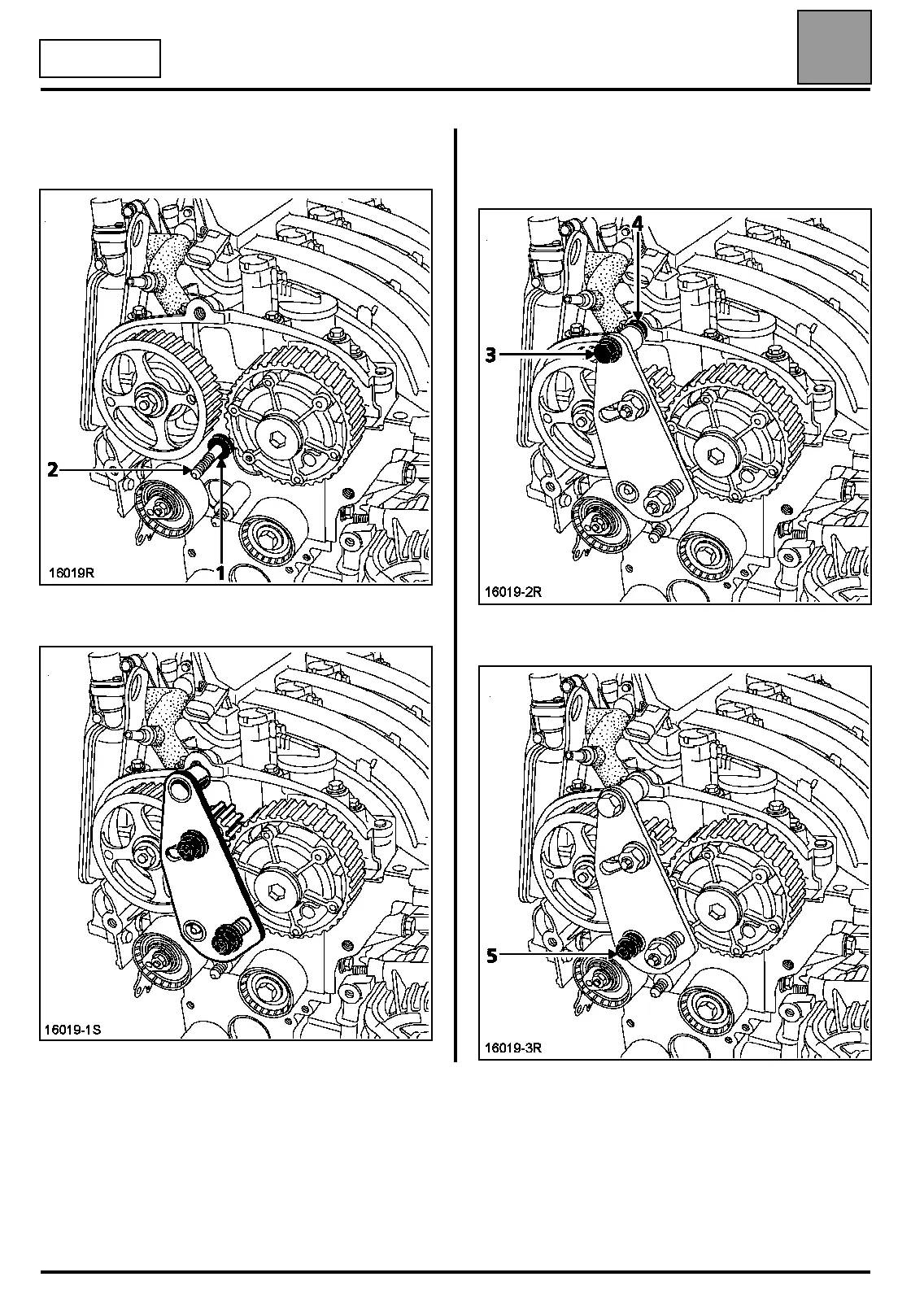

Fit:
– the spacer (1) of tool Mot. 1509-01 on the stud (2),
– tool Mot. 1509 as shown in the diagram below,
– the upper bolt (3) whilst positioning the spacer (4) of
tool Mot. 1509-01 between the tool and the camshaft
bearing cap housing (do not lock the bolt).
– the shouldered nut (5) of tool Mot. 1509-01.
