3.11
AUTOMATIC AIR CONDITIONING

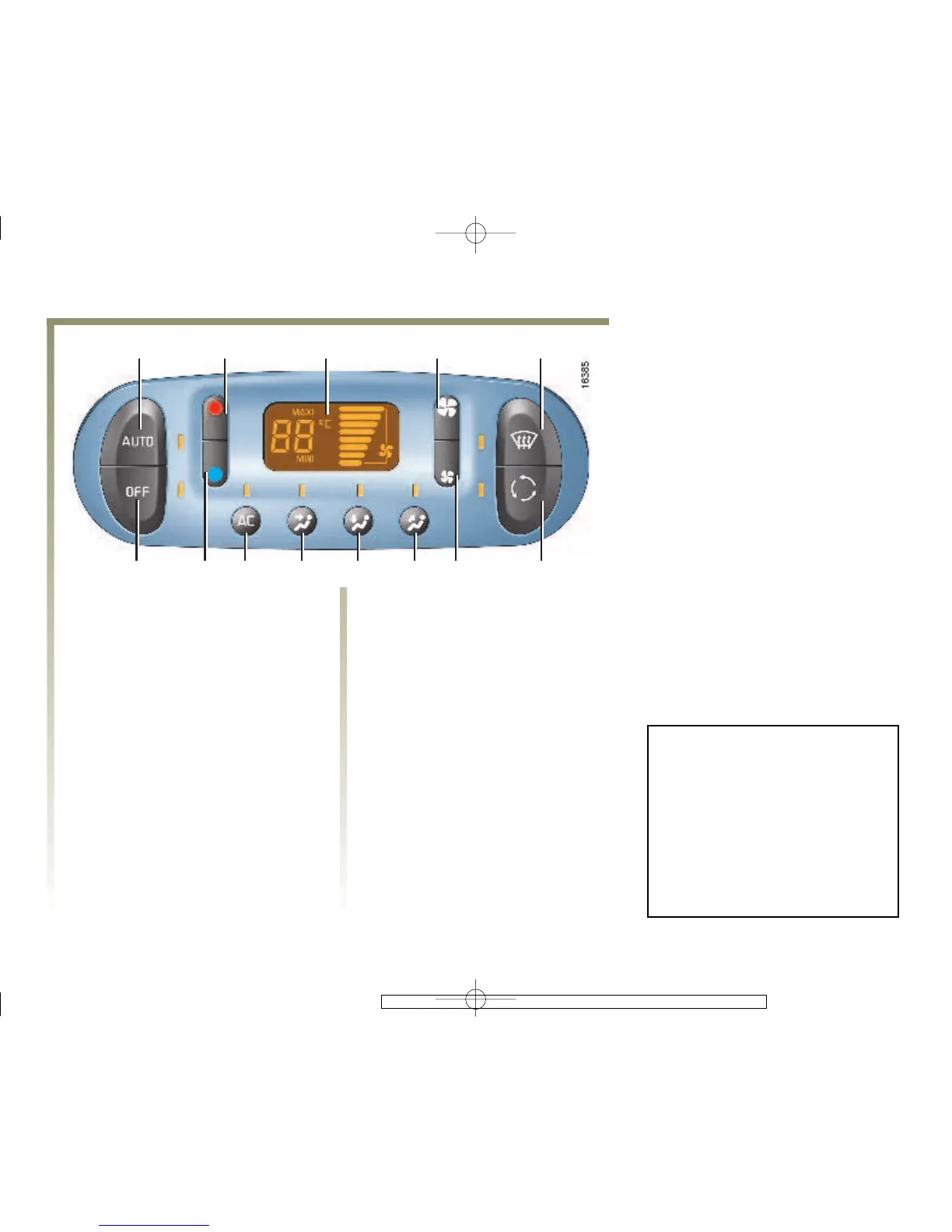

The controls
1 - Air conditioning button
2 and 12 - Buttons for adjusting
the air temperature
3 -Display
4 and 7 - Button for adjusting
fan speed
5-Automatic windscreen
demisting button by
means of ventilation
6 - Air recycling button
8to10- Air distribution buttons
11 - Air conditioning button
13 - Button for switching
off system
With the exception of buttons 2,
4, 7 and 12, a tell-tale light is
integrated in all buttons. The
tell-tale light comes on during
operation and goes out when the
function is not in use.
