EMBELLISHERS - WHEELS

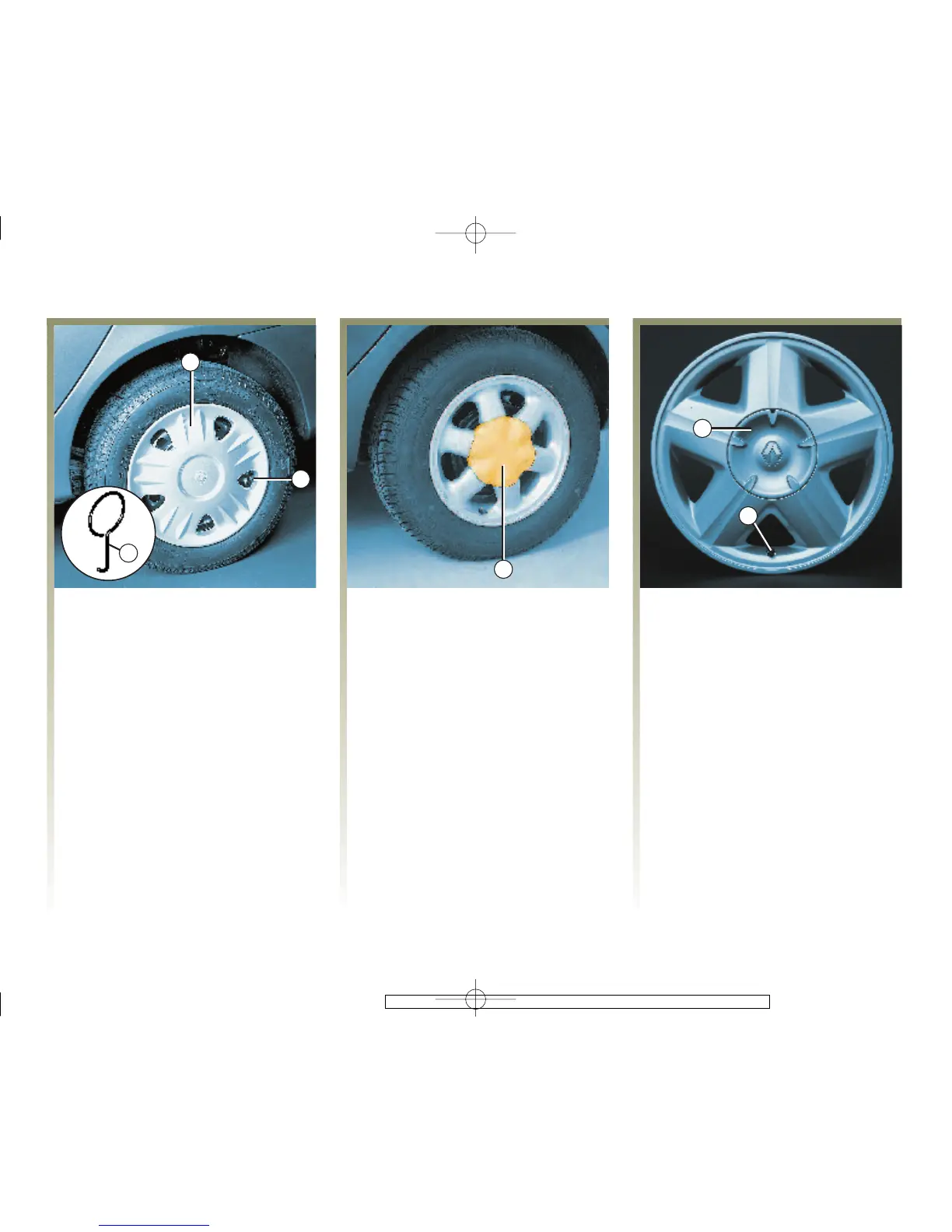

Wheel embellisher with masked
wheel bolts
(example: embellisher 1)
Remove it using a wheel
embellisher key A (located next to
the tools) or the end of the
wheelbrace by inserting the hook
into one of the slots around the
edge.
To refit, reclip the embellisher
ensuring valve 2 is correctly
located.
Centre embellisher 3
Masked wheel bolts
Unclip the embellisher using the
key A (located next to the jack).
To refit the embellisher, align the
locating lug with the notch in the
embellisher and clip back into
position.
Centre embellisher 4
Masked wheel bolts
Remove it using a wheel
embellisher key A (stored with the
tools).
To refit it, align the valve symbol
(engraved on the embellisher) with
the valve 5 and clip it back in
position.
