FUSES (continued)

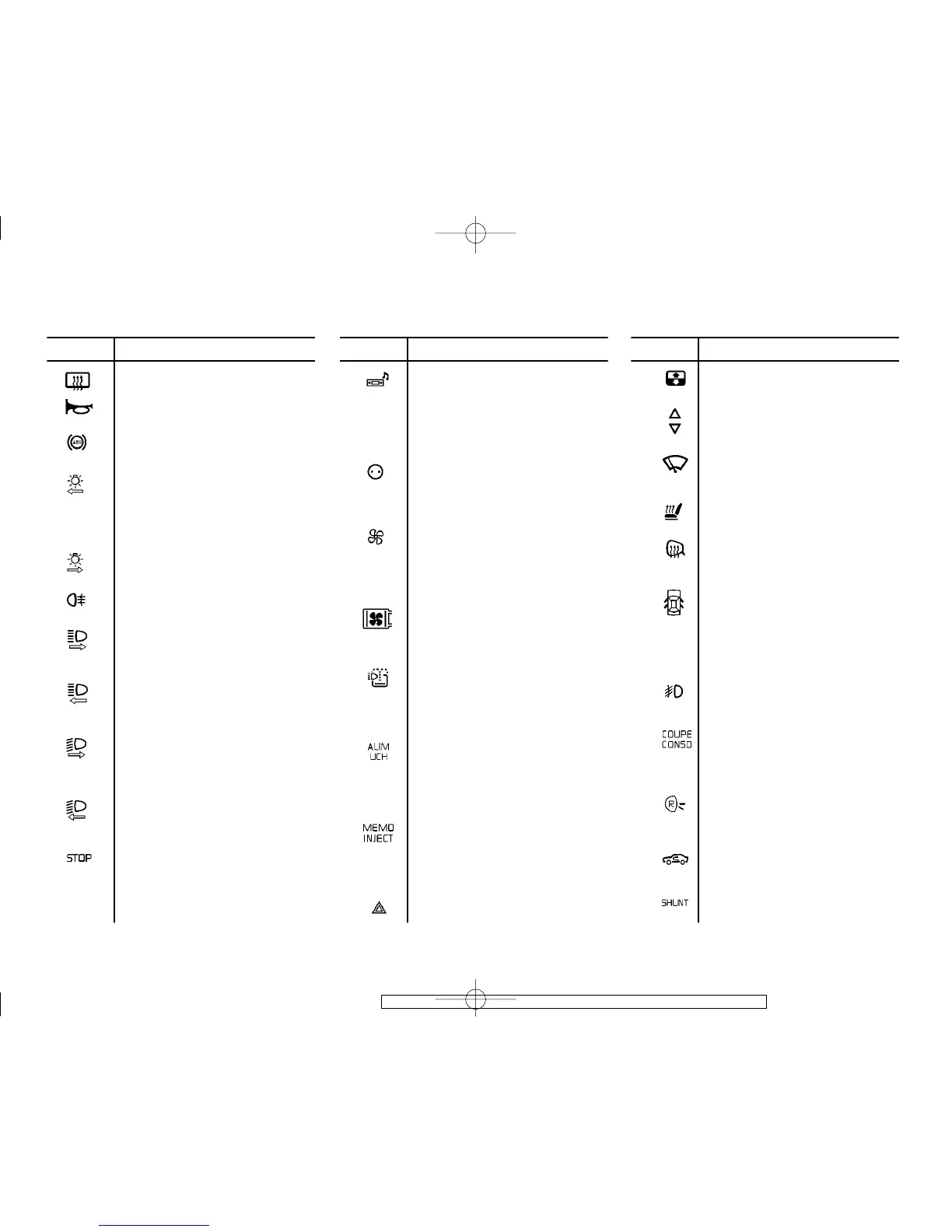

Allocation of fuses
(depending on the equipment level)
Symbol Allocation
Heated rear screen
Horn
Anti-lock braking (ABS)
Left-hand side lights/
“lights on” warning
buzzer/instrument
panel/number plate light
Right-hand side lights
Rear fog light
Right-hand main beam
headlight
Left-hand main beam
headlight
Right-hand dipped beam
headlight/headlight beam
adjustment
Left-hand dipped beam
headlight
Stop lights/instrument
panel/heated windscreen/
ABS/childproof rear
window risers
Symbol Allocation
Radio/cigar lighter/
instrument
illumination/clock
Accessories socket
Fan - heater/air
conditioning
Engine cooling fan
Headlight washer
Remote control/engine
immobiliser
Injection/engine
immobiliser
Flasher unit
Symbol Allocation
Sunroof
Electric windows
Windscreen wash/wipe
Heated seats
De-icing rear view mirrors
Electric door
locking/interior lights/
luggage compartment
lighting
Front fog lights
Circuit breaker (clock,
radio, etc.)
Reversing lights/
rear screen wash/wipe
Air conditioning
Dual headlamps
