Rear lights (changing bulbs)
– release the light assembly from out-
side the vehicle by pulling towards
the rear;
– unscrew bulb holder 3 (parking light
and brake light) or 4 (direction indi-
cator), then replace the bulb.
Side light and brake light 5
Bulb type: Pr21W.
Direction indicator lights 6
Bulb type: PY21W.

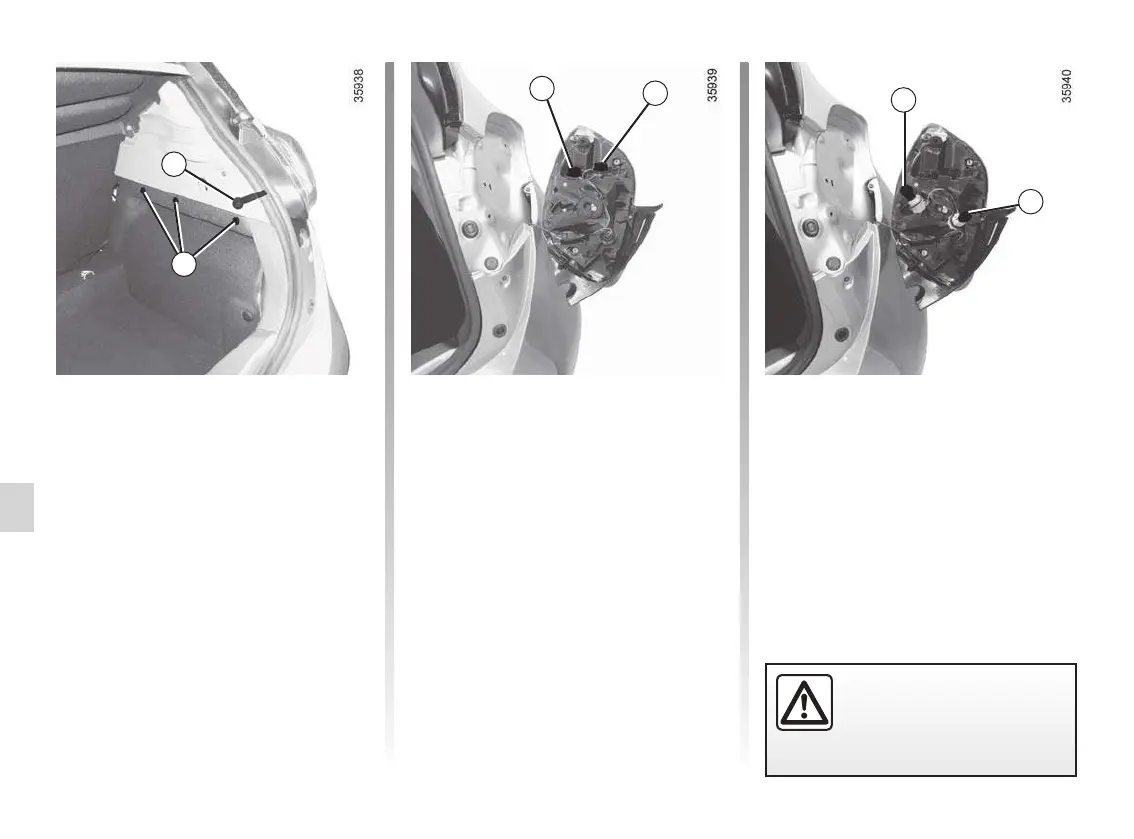

Direction indicator lights/
brake and side lights
– Open the boot;
– unclip the head of the upper clips 2
to unlock;
– unclip 2 on the trim;
– release trim;
– unscrew 1;
r EAr ligh TS AND SiDE ligh TS: changing bulbs (1/2)
5
6
refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
