LPF
HPF
FULL
HIGH INPUT HIGH INPUT
X-OVER
HPF
X-OVER
FULL
0dB
BASS EQ
R
L
LPF
12dB 50Hz
FREQ
250Hz MIN
GAIN
MAX
2CH
MODE
4CH
R
L
REMOTE
0dB
BASS EQ
12dB50Hz
FREQ
250HzMIN
GAIN
MAX
1/2 CH IN OUT 3/4 CH IN
1/2 CHANNEL 3/4 CHANNEL
TO REMOTE BOX
2CH
MODE
4CH
2CH
MODE
4CH
OR
ENGLISH
3

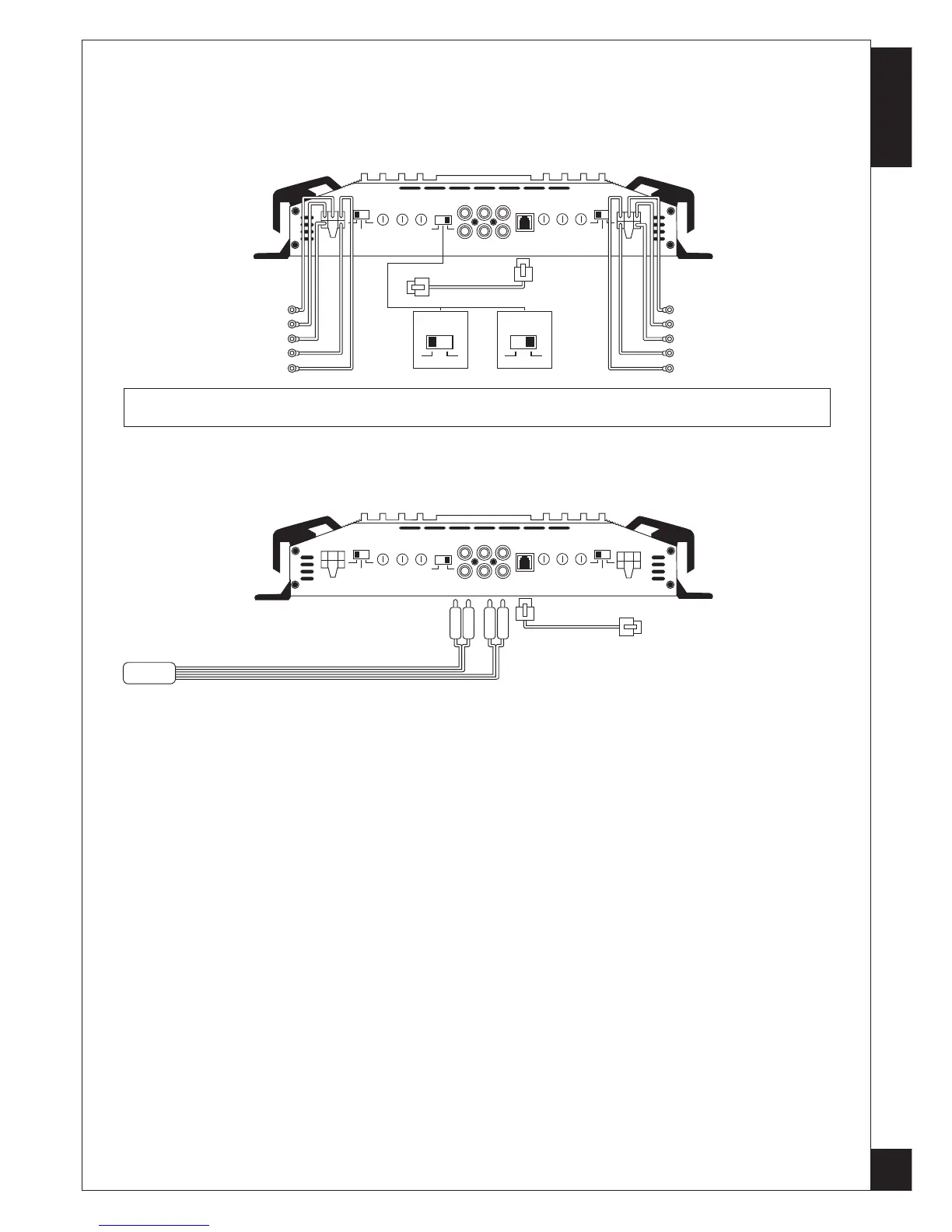

High-Level Inputs
This amplifier can be connected to any car stereo or head unit with high level outputs.
TO CAR STEREO GND
TO CAR STEREO SPEAKER R (-)
TO CAR STEREO SPEAKER R (+)
TO CAR STEREO SPEAKER L (-)
TO CAR STEREO SPEAKER L (+)
TO CAR STEREO GND
TO CAR STEREO SPEAKER R (-)
TO CAR STEREO SPEAKER R (+)
TO CAR STEREO SPEAKER L (-)
TO CAR STEREO SPEAKER L (+)
CAUTION:
Do not wire high and low inputs at the same time. This will result in damage to
the amplifier and other units in the set up.
Input Connections, Lowpass-Filters & Remote Jacks
Lowpass-Filters with adjustable crossover frequency
In the 3- or 4 CH-Mode a lowpass-filter may be activated for the ”1/2 CH” channel pair. If REAR-
Channels are to be used as subwoofer amplifier, set the switch ”X-OVER” to ”LFP”. Set the desired
X-Over frequency with the control ”FREQ”.
4-Channel-Mode:
Connect RCA outputs from head-unit with
RCA inputs (INPUT CH1/2 and CH3/4).
CH 3/4
REAR
LOW INPUT
CAR STEREO
CH 1/2
FRONT
Low Level RCA Cinch Inputs
This amplifier can be connected to any car stereo or head unit with low level RCA Cinch outputs.
Remote Control
This input is for the included cable remote control.
Only the low pass signal will be controlled.
TO REMOTE BOX
LPF
HPF
FULL
HIGH INPUT HIGH INPUT
X-OVER
HPF
X-OVER
FULL
0dB
BASS EQ
R
L
LPF
12dB 50Hz
FREQ
250Hz MIN
GAIN
MAX
2CH
MODE
4CH
R
L
REMOTE
0dB
BASS EQ
12dB50Hz
FREQ
250HzMIN
GAIN
MAX
1/2 CH IN OUT 3/4 CH IN
1/2 CHANNEL 3/4 CHANNEL
Mono-Mode with 2 Subwoofer:
Connect RCA outputs from head-unit with
RCA inputs (INPUT CH3/4).
Highpass-Filters with adjustable crossover frequency
If the amplifiers is to be used for satellite loudspeaker (mid-range/tweeter) amplification, set switch
”X-OVER” to ”HPF”. Set the desired X-Over frequency with the control ”FREQ” and only the frequencies
above the set will be amplified.
Bass-Boost:
The Bass-Boost-Switch ”BOOST” elevates the lower bass ranges. The desired elevation can be set
on the ”BASS BOOST” controller .
Line-Outputs:
The Input Signals of the IN connections L and R (REAR) are forwarded directly to the OUT L and R
output jacks. The OUT connections allow the use of an additional amplifier.
