Renegade REN2000 - Speaker Connections; 4-Channel Mode with Front-; Rear-Speaker; Mono;Subwoofer Mode with 2 Subwoofers; 3-Channel Mode with Stereo Front Speakers and Mono;Subwoofer

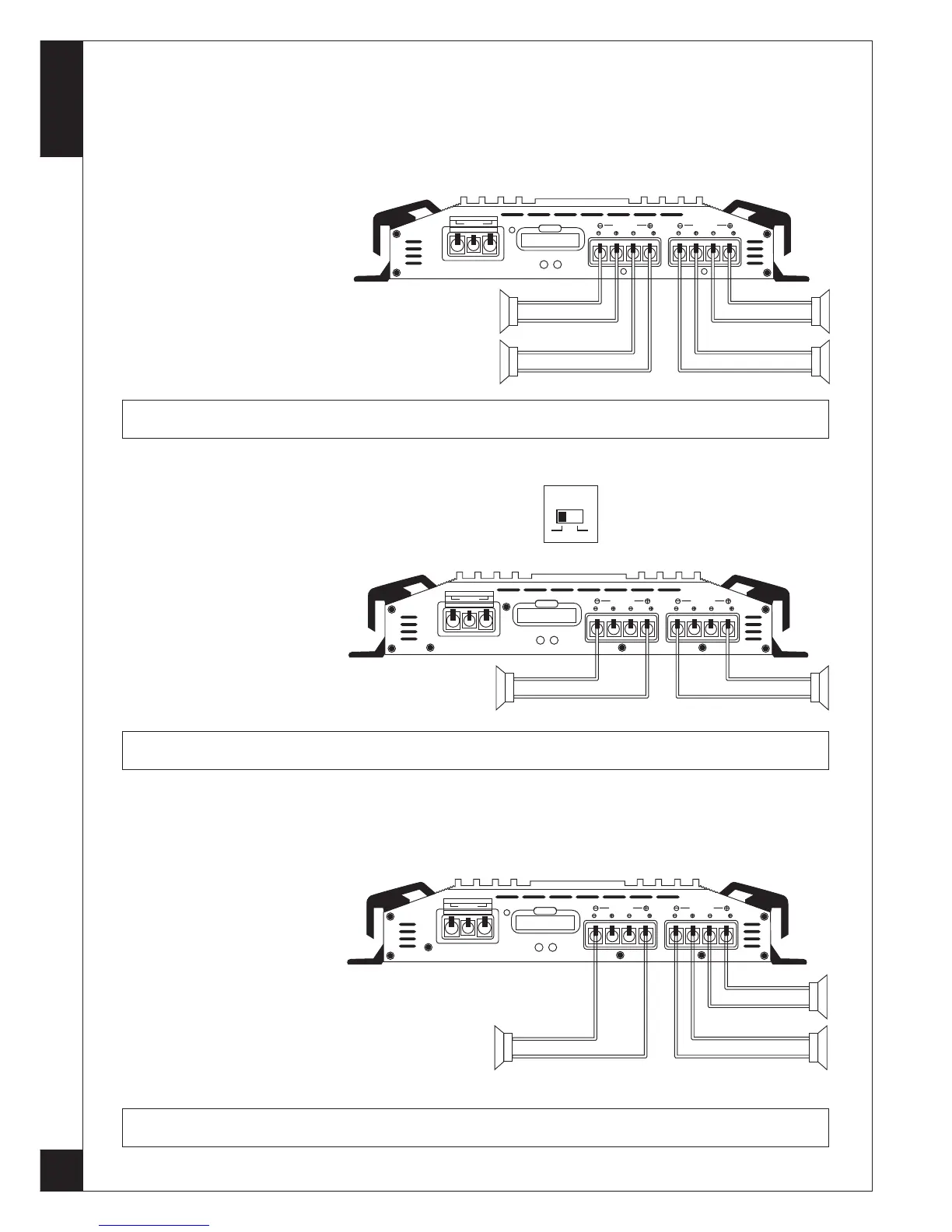

3-Channel Mode with Stereo Front Speakers and Mono/Subwoofer
Connect the head unit line outputs with good quality RCA to RCA cables to the INPUT CH1/2 and
CH3/4 of the amplifier.
Connect the Front Speakers
with the terminals
SPEAKER OUTPUT
+ CH1 - and + CH2 -
of the amplifier.
Connect the Subwoofer with the terminals
SPEAKER OUTPUT + BRIDGED -
from Channel 3/4) of the amplifier.
+
–
+
–
–
+
2CH
MODE
4CH
Switch the Mode-Selector on
the opposite Panel on 2CH.
POWER
GND REMOTE +12V
POWER
GND REMOTE +12V
POWER
GND REMOTE +12V
Mono/Subwoofer Mode with 2 Subwoofers
Connect the head unit line outputs with good quality
RCA to RCA cables to the INPUT CH3/4 of the amplifier.
Connect the Subwoofers
with the terminals
SPEAKER OUTPUT
+ BRIDGED -
from Channel 1/2 and
+ BRIDGED -
from Channel 3/4
of the amplifier.
ENGLISH
4
MONO MONO
+
–
–
+
4 – 16 Ω 4 – 16 Ω
POWER PROTECT
FUSE
L LEFT L
BRIDGED
R RIGHT R L LEFT L
BRIDGED
R RIGHT R
100 A
FRONT RIGHT SPEAKER
FRONT LEFT SPEAKER
2 – 16 Ω
2 – 16 Ω
POWER PROTECT
FUSE
L LEFT L
BRIDGED
R RIGHT R L LEFT L
BRIDGED
R RIGHT R
100 A
4 – 16 Ω
SUBWOOFER
Speaker Connections
4-Channel Mode with Front-/ Rear-Speaker
Connect the head unit line outputs with good quality RCA to RCA cables to the INPUT CH1/2 and
CH3/4 of the amplifier.
Connect the Front-/ Rear-
Speakers with the terminals
SPEAKER OUTPUT
+ CH1 -, + CH2 -,
+ CH3 -, + CH4 -
of the amplifier.
FRONT RIGHT SPEAKERREAR LEFT SPEAKER
FRONT LEFT SPEAKER
+
–
+
–
–
+
–
+
2 – 16 Ω 2 – 16 Ω
2 – 16 Ω 2 – 16 Ω
POWER PROTECT
FUSE
L LEFT L
BRIDGED
R RIGHT R L LEFT L
1/2 CHANNEL SPEAKER
BRIDGED
R RIGHT R
100 A
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.
REAR RIGHT SPEAKER
CAUTION:
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.
CAUTION:
Please observe speaker channel and polarity as printed by the speaker terminal block.
Incorrect phasing of the speakers results in total loss of bass response.
CAUTION:
3/4 CHANNEL SPEAKER
1/2 CHANNEL SPEAKER3/4 CHANNEL SPEAKER
1/2 CHANNEL SPEAKER3/4 CHANNEL SPEAKER
