PG-FP5 Flash Memory Programmer Setup Manual
R20UT0930EJ0400 Rev.4.00 Page 4 of 7
Oct 03, 2016
2.4 PG-FP5 Startup
After the cables are connected, press the POWER button on the PG-FP5. When the PG-FP5 is correctly started, the
POWER LED is turned on and “Commands >” is displayed in the message display. If not, the cause may be a defect in the
PG-FP5, contact your local distributor.
2.5 Startup of Programming GUI
Click the Start menu, “All Programs”, point to “Renesas Electronics Utilities”, “Programming Tools”, and then select
“PG-FP5 Vx.xx” of “PG-FP5 Vx.xx” to start the Programming GUI. Perform the following steps.

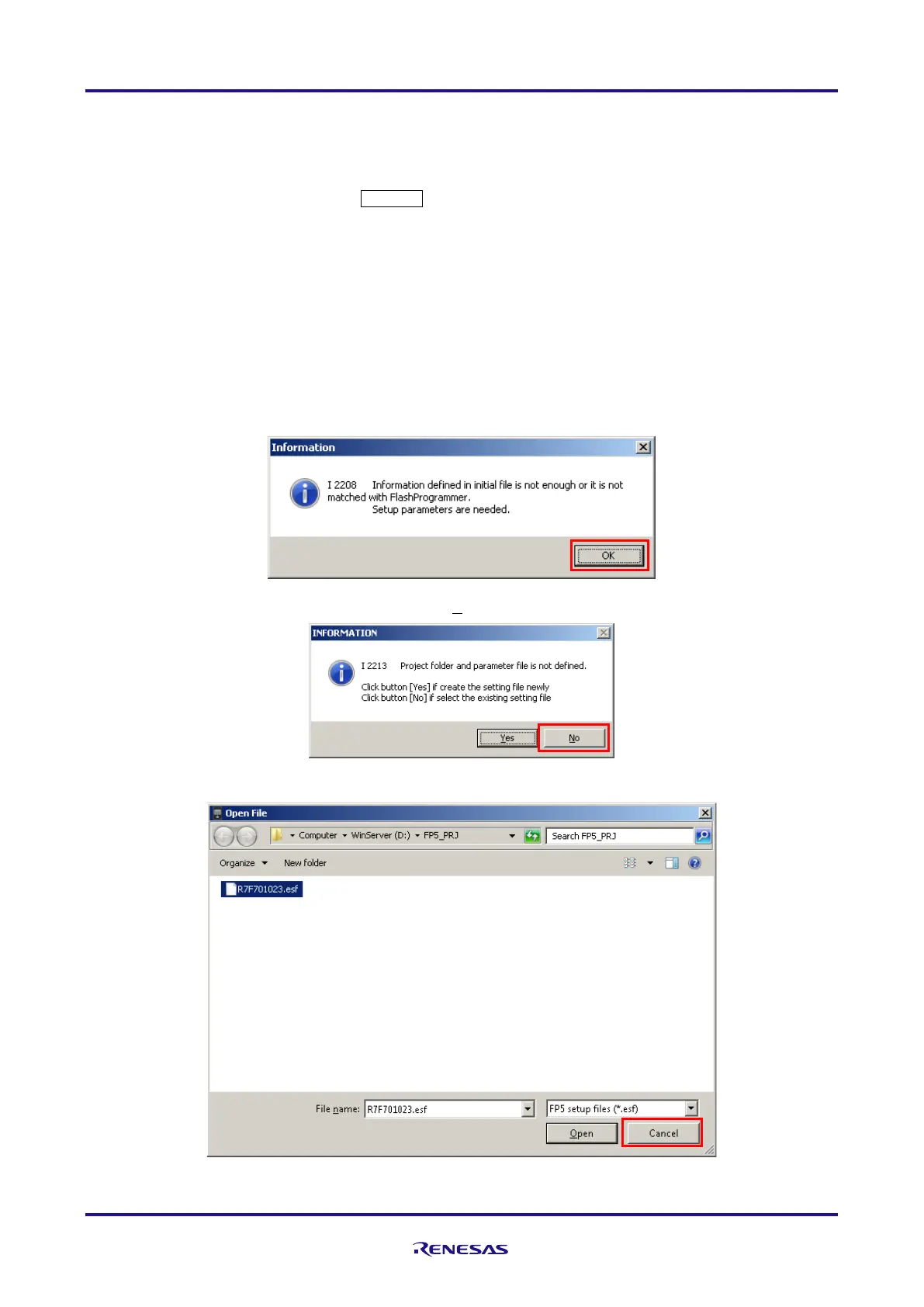

(1) The following message will be displayed. Click the OK button.
(2) The following message will be displayed. Click the No button.
(3) The following dialog box will be displayed. Click the Cancel button.
